The Atom X Pro Series represents the next generation in fire suppression technology, designed to seamlessly integrate standalone wall-mounted and ceiling-mounted extinguishing units with an intelligent detection module—creating a powerful and adaptable fire protection system. These units can be installed on either the ceiling or the wall, depending on the specific requirements of the space.

One of the standout features of the Atom X Pro Series is its retrofittable nature and customisable configuration. The choice of extinguisher type (wall or ceiling-mounted) and the selection of detection modules (types of sensors) are entirely based on the unique fire risks of the premises, ensuring a tailored solution for each environment.

How the System Operates

At the core of the Atom X Pro system is its intelligent fire detection and actuation module. Depending on the needs of the space, it can be configured with a range of detectors—including smoke, heat, or beam detectors—to ensure precise and reliable detection.

The system operates on a cross-zoning principle. It requires confirmation from at least two detectors in separate zones before triggering an alarm. Once verified, the control panel sends an activation signal—via an electrical impulse—to the Metron Actuator, which initiates the discharge of the extinguishing agent.

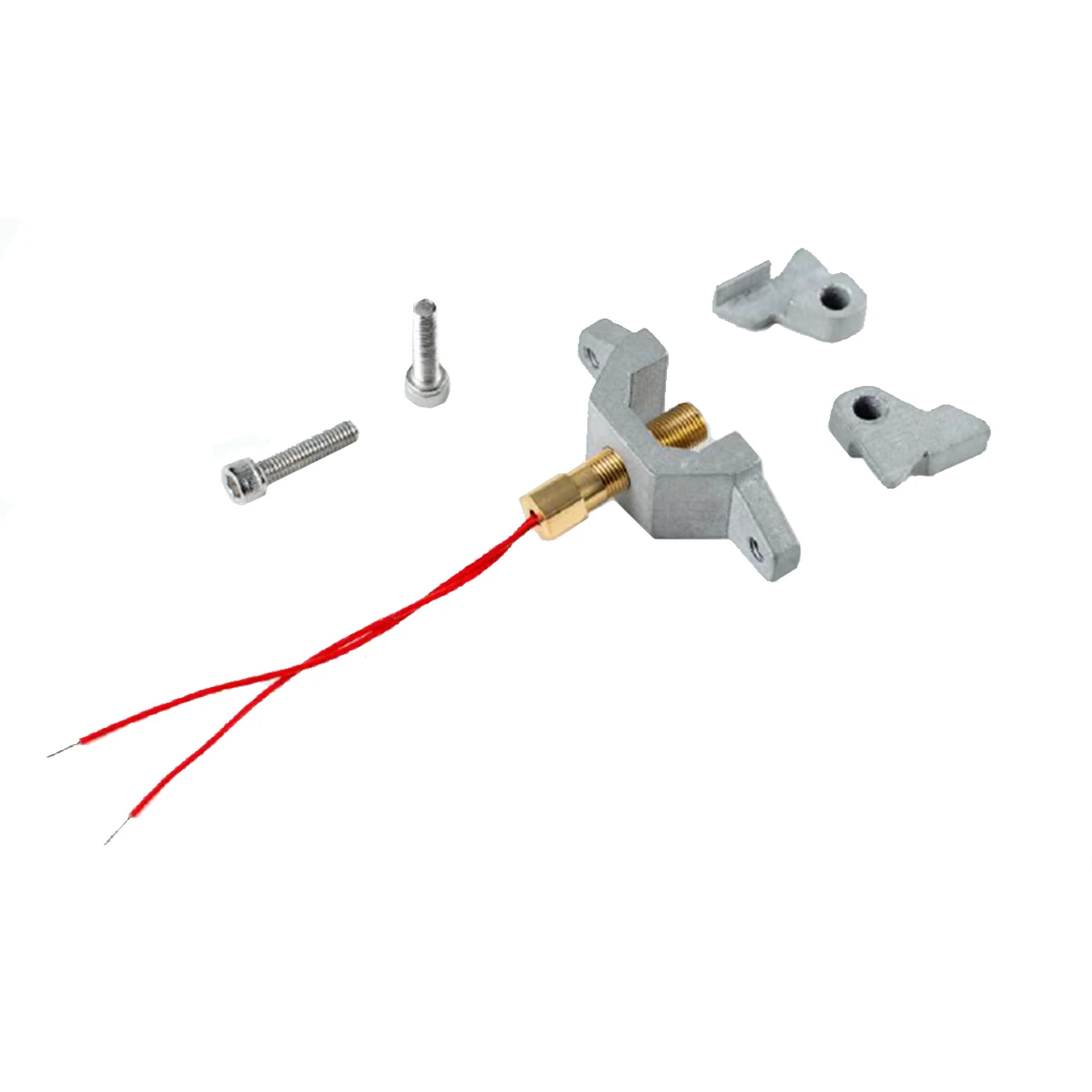

Metron Actuator
On receiving this electrical impulse a metal pin is fired inside the actuator that breaks the glass vial placed at the discharge point of Atom X units, triggering the discharge of the agent. What makes the Atom X truly versatile is that all Atom X units are triggered simultaneously to achieve total flooding results.

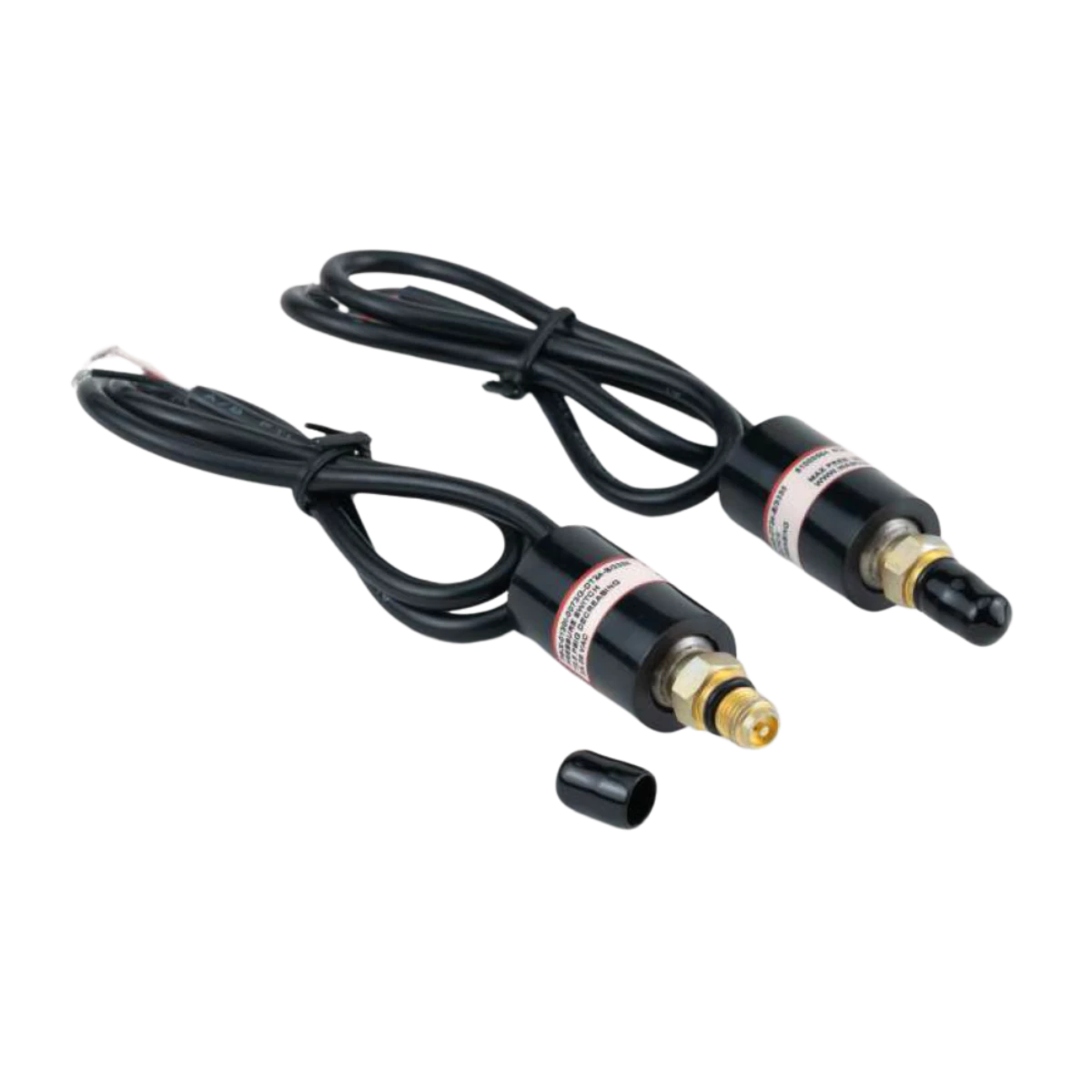

Pressure Switch
Extinguishing units deployed in the network are monitorable with the presence of a pressure switch. A pressure switch will trigger alarms in the event of a fire, which adds an extra element of safety to the Atom X Pro. Furthermore, a pressure switch allows the user to do preventive maintenance of the system via a control panel.

• Easy To Install: Retrofittable system and can be installed with least amount of structural changes in a premises.

• Automatic Actuation: Detects fire through thermal sensor and activates automatically.

• Targeted Protection: Option flexible mounting bracket that enables optimal positioning of the extinguisher in the risk zone proving targeted protection.

• Electrical Actuation Option: The units can be activated electrically by opting for metron actuators and connecting them to a network of detectors via a control panel to be configured as a Total Flooding System.

• Certification: PED and UKCA-PED approved.

• Secure Mounting Bracket: Comes with a secure mounting bracket for direct installation on the wall.

• Saves Space: Agent cylinders are wall mounted units that do not require any floor space.
