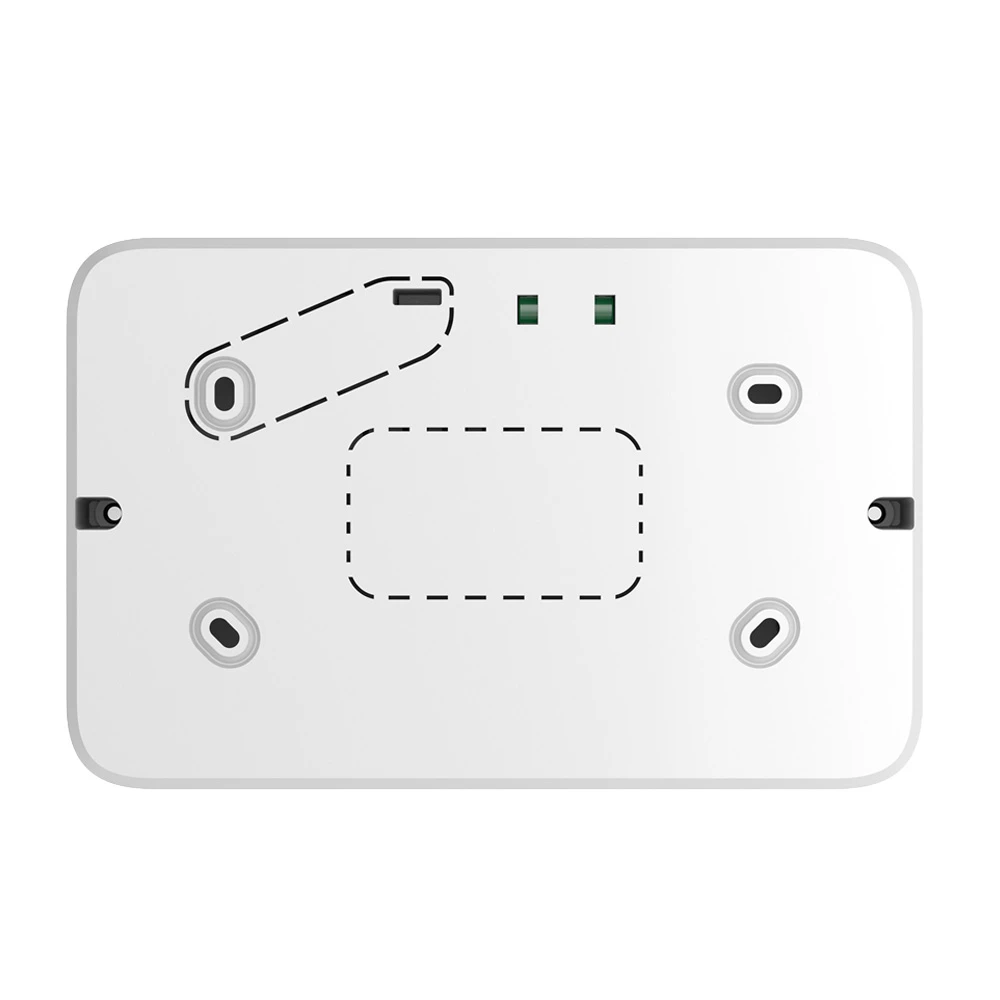

The Ajax EN54 Wireless Addressable Input/Output Integration Module is designed to enable reliable wireless interfacing within compatible Ajax EN54 fire alarm systems, allowing seamless communication between the fire detection system and third-party equipment where input or output integration is required.

Developed for fire system integration applications, it provides a practical solution in situations where wired connections are difficult, disruptive, or impractical, helping installers expand system functionality while maintaining a clean and efficient installation process. Its wireless design makes it especially suitable for retrofit projects, system extensions, listed buildings, and environments with restricted cable routing.

Operating on a 20–28V DC power supply with low current consumption of 8mA at 24V DC, the module is engineered for efficient performance with minimal power demand. The fire-rated ABS housing ensures suitability for fire safety environments, while the lightweight 0.06kg design supports easy handling and installation.

With an operating temperature range of -5°C to +50°C, it is suitable for a wide variety of internal fire safety applications. Available in red or white, it can be selected to match installation requirements or visual preferences.

• Wireless input/output integration for compatible Ajax EN54 fire systems

• Suitable for interfacing with ancillary fire alarm equipment

• Low current consumption at 8mA (24V DC)

• Compact lightweight design for easier installation

• Fire-rated ABS housing

• Operating voltage range of 20–28V DC

• Suitable for internal environments from -5°C to +50°C

• Available in red or white finishes
