The Ajax EN54 Fire Hub Jeweller is a professional wireless control and indicating equipment (CIE) designed for managing modern fire alarm systems through a single integrated interface.

Developed for commercial and municipal installations, this touchscreen fire alarm control panel combines fire detection control, system monitoring and device management without the complexity of traditional wired infrastructure. Its intuitive interface allows authorised users to manage essential fire alarm functions such as alarm reset, evacuation control, buzzer operation and system testing.

Using Ajax Jeweller, Wings and TurboWings communication technologies, the Fire Hub Jeweller provides wireless connectivity ranges of up to 1,800 metres in urban environments and up to 5,900 metres in open space, supporting flexible installation across a wide variety of building types.

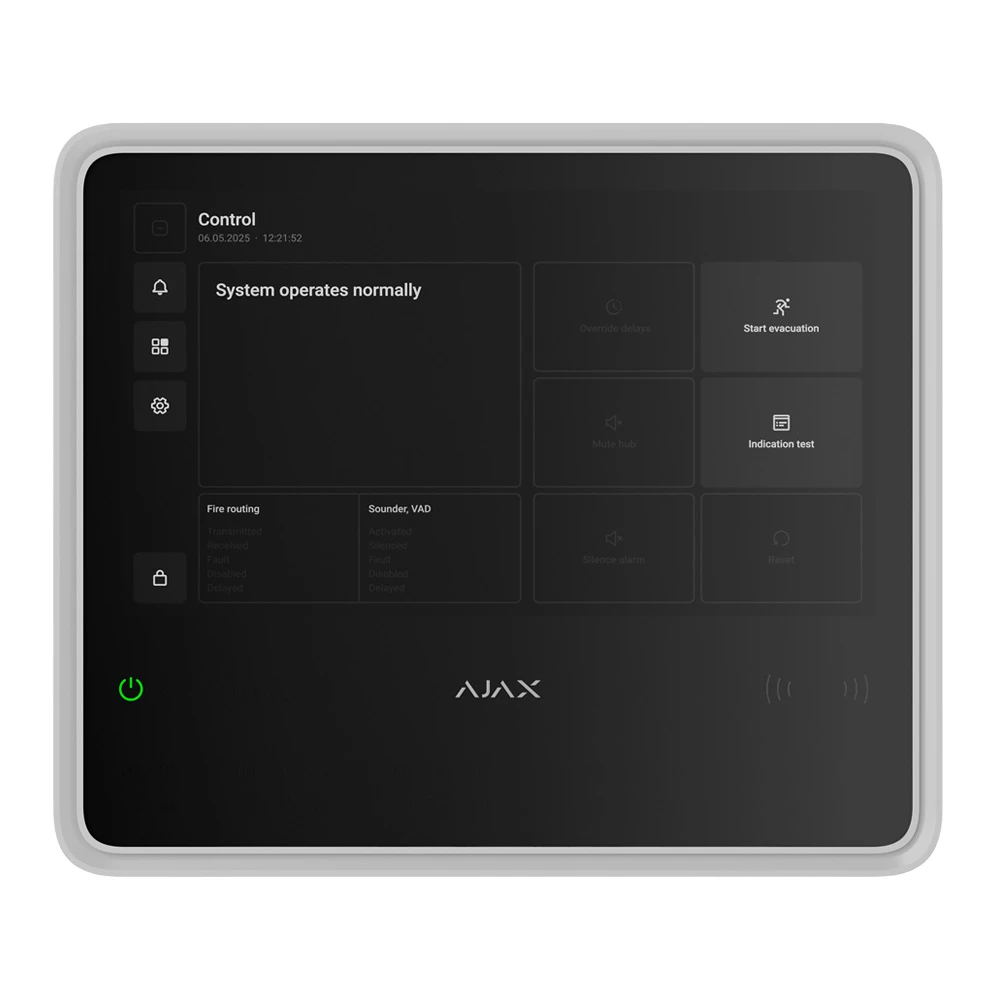

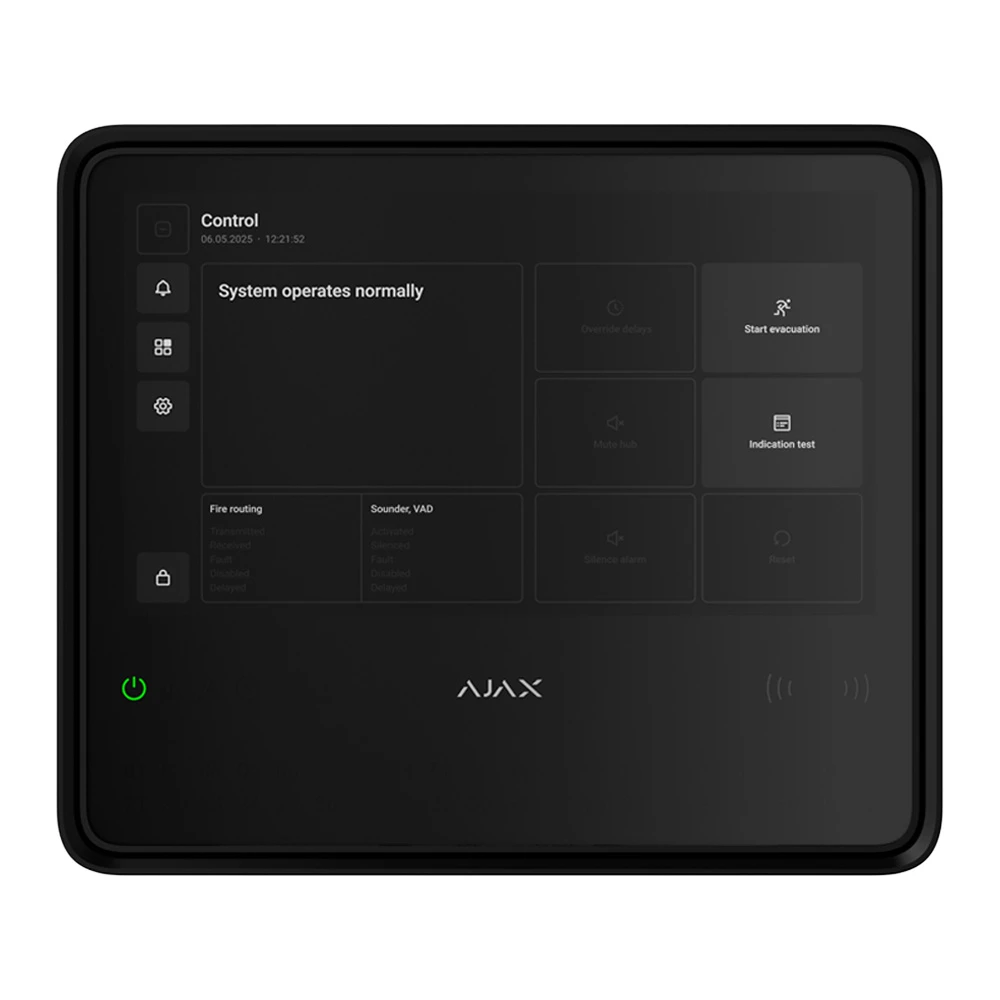

The 10.1-inch IPS capacitive touchscreen delivers clear visibility of fire zones, events and system status, while supporting up to 200 devices, 40 fire zones and 5,000 logged events for complex installations. Built-in Ethernet, Wi-Fi and dual SIM cellular connectivity ensure reliable communication with automatic failover between channels.

Certified to key fire and security standards including EN 54-2, EN 54-4, EN 54-13, EN 54-21 and EN 54-25, the system is designed for compliant deployment in professional fire safety environments.

• 10.1-inch IPS capacitive touchscreen interface

• Supports up to 200 Ajax wireless devices

• Manages up to 40 fire zones

• Ethernet, Wi-Fi and dual SIM cellular communication

• Automatic communication channel switching for resilience

• Wireless communication range up to 1,800m urban / 5,900m open space

• Stores up to 5,000 alarm and event log entries

• Supports Ajax Jeweller, Wings and TurboWings technologies

• EN 54 compliant for professional fire alarm applications
