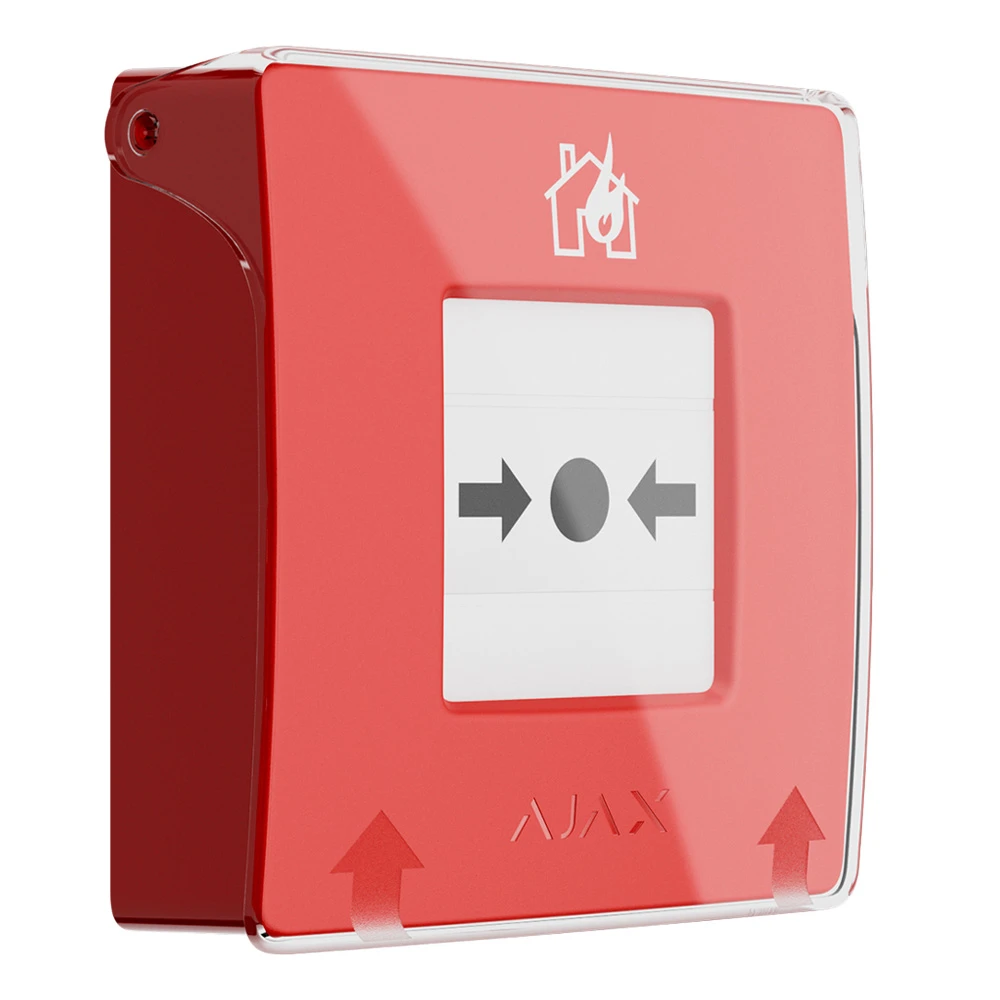

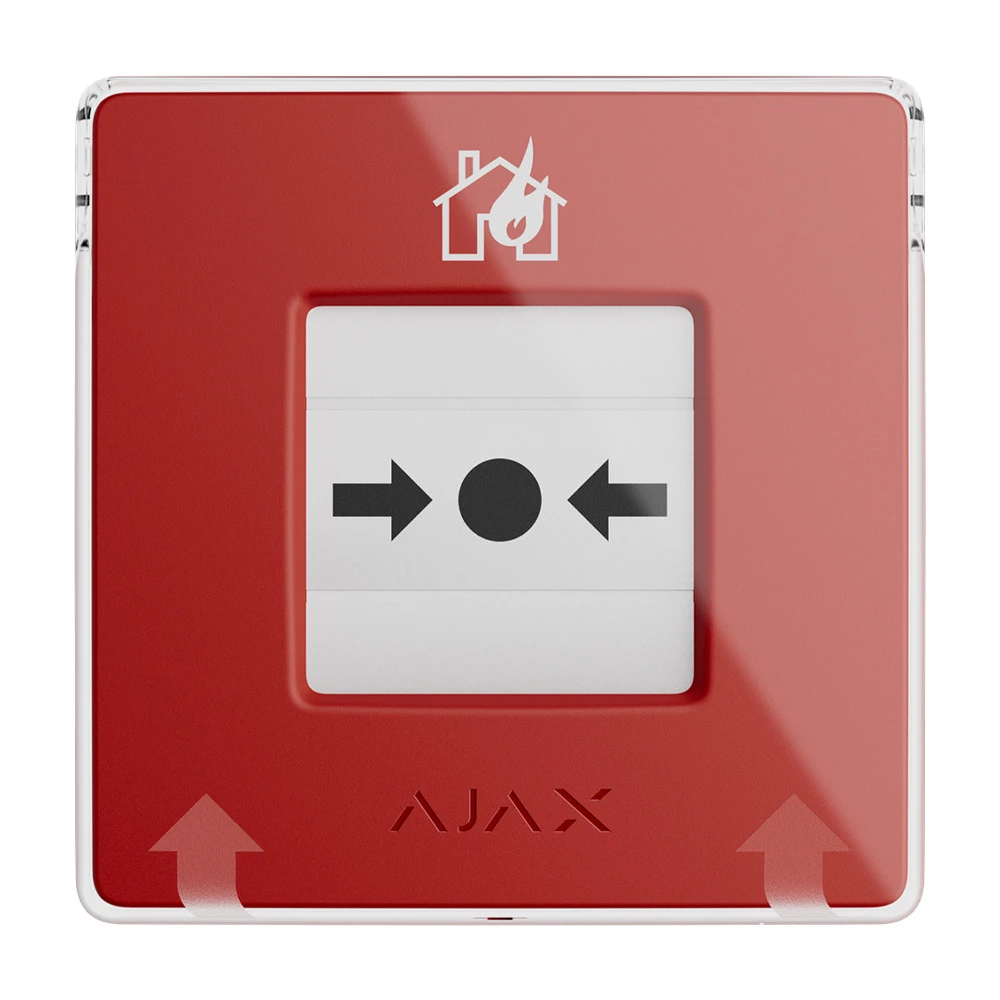

The Ajax Manual Call Point Jeweller EN54 is a wireless addressable resettable manual call point designed to provide fast, reliable manual fire alarm activation within Ajax EN54 fire safety systems.

Engineered for modern commercial and public environments, it enables users to trigger a fire alarm instantly while simultaneously activating pre-configured automation scenarios to support safe evacuation and emergency response procedures.

Using Ajax Jeweller wireless communication technology, the device delivers dependable long-range communication with alarm transmission to the control equipment in as little as 3 seconds and a wireless range of up to 1,700 metres in open space. Frequency hopping and automatic communication power adjustment help maintain stable and secure signal performance in demanding installations.

The resettable operating element eliminates the need for replaceable glass components, reducing maintenance costs and allowing the call point to be quickly restored using the supplied reset key. A transparent protective front lid helps prevent accidental activation, while integrated LED indication provides clear visual alarm status confirmation.

Designed for fast commissioning and simple installation, the call point features QR code setup, SmartBracket mounting, and full configuration and testing through Ajax apps. It also includes built-in tamper protection and supports automation scenarios such as activating indoor and outdoor sirens, unlocking emergency exits, shutting down ventilation systems, or enabling emergency lighting.

The device is compatible with Ajax fire alarm systems using Jeweller communication and supports visual alarm verification when used alongside Ajax cameras and MotionCam detectors.

• Wireless addressable manual fire alarm call point

• Resettable operating element

• Red fire alarm version

• Compatible with Ajax fire alarm systems using Jeweller communication

• Alarm transmission to control equipment within 3 seconds

• Wireless communication range up to 1,700m in open space

• Up to 7 years battery life

• Transparent front lid to help prevent accidental activation

• LED alarm status indication

• Built-in tamper protection

• Frequency hopping communication for improved signal reliability

• Automatic communication power adjustment

• Supports automation scenario activation

• Can trigger indoor and outdoor sirens

• Compatible with visual alarm verification via Ajax cameras and MotionCam detectors

• QR code setup for fast commissioning

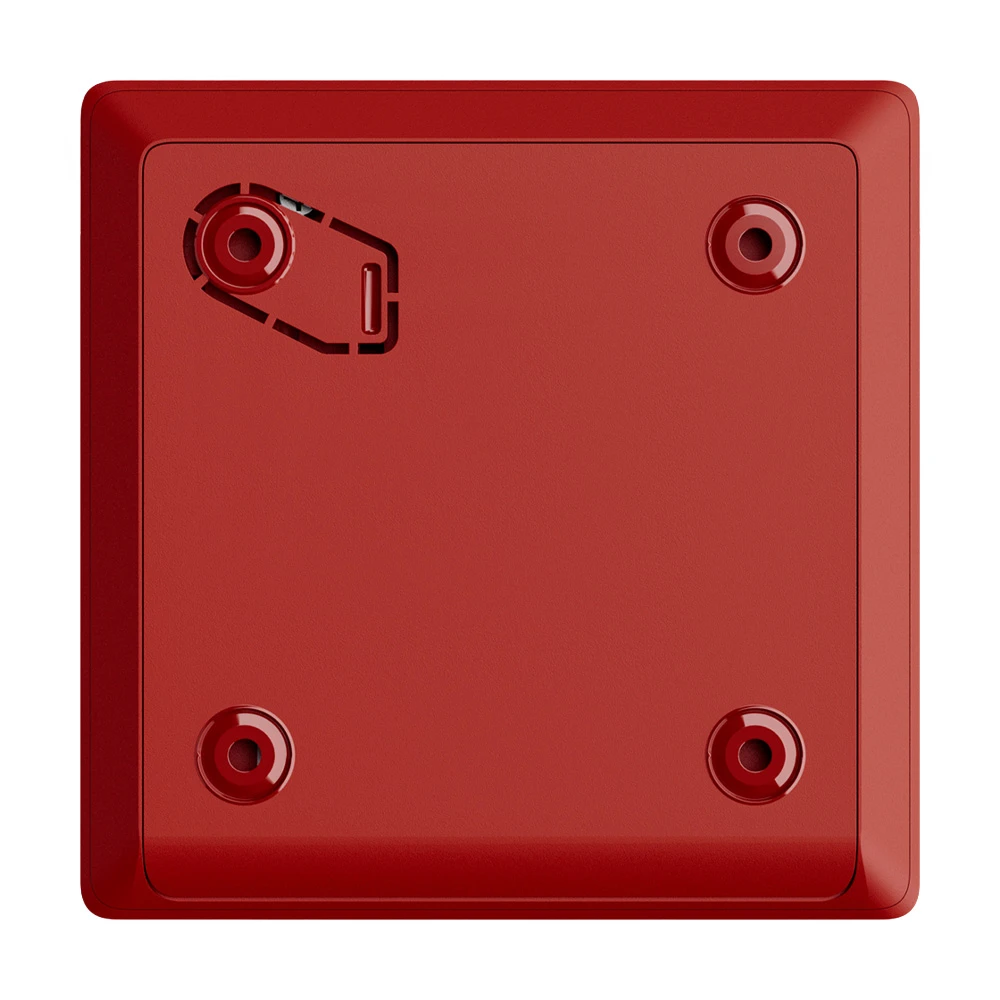

• SmartBracket mounting panel for simplified installation

• Configuration and testing via Ajax apps

• Reset key included
