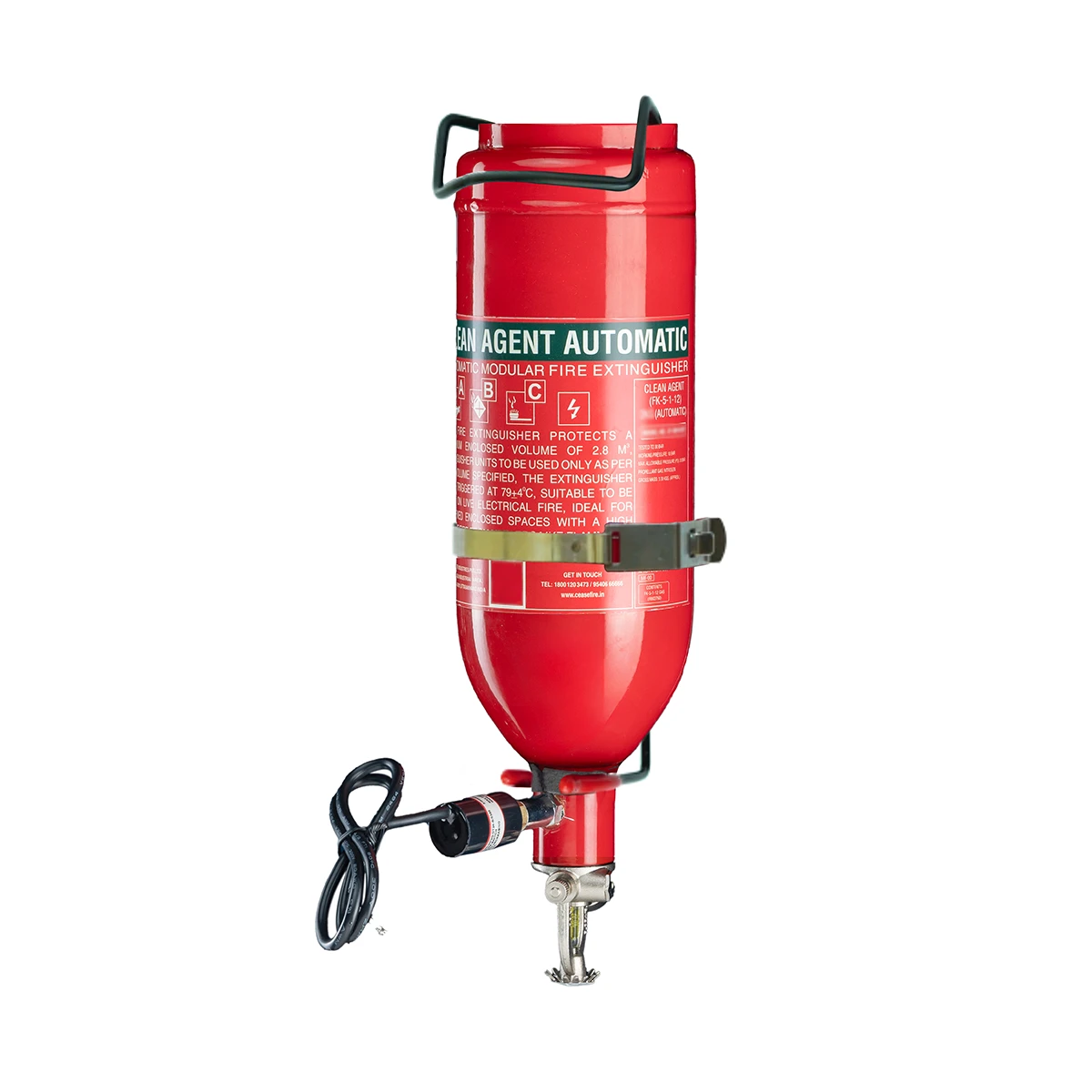

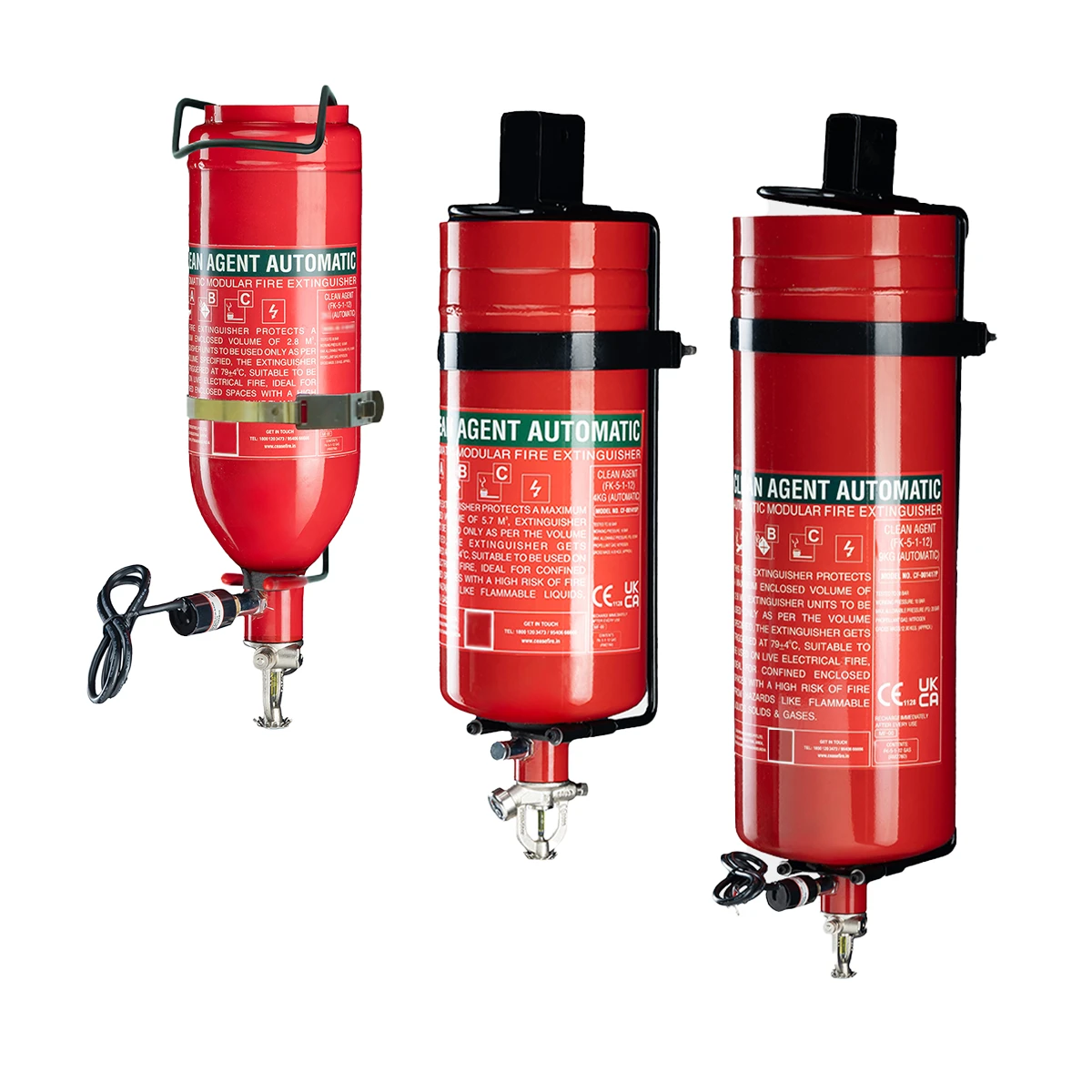

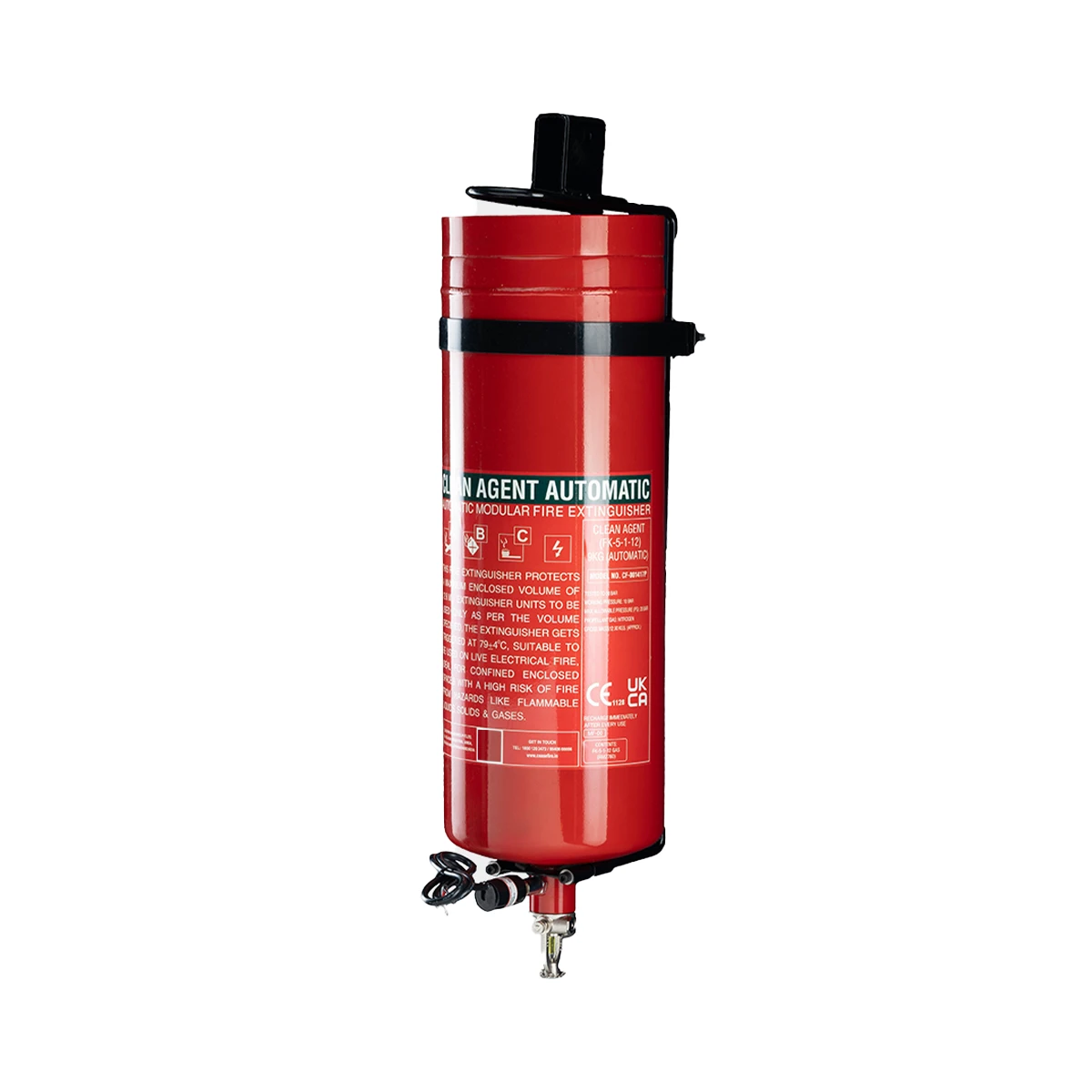

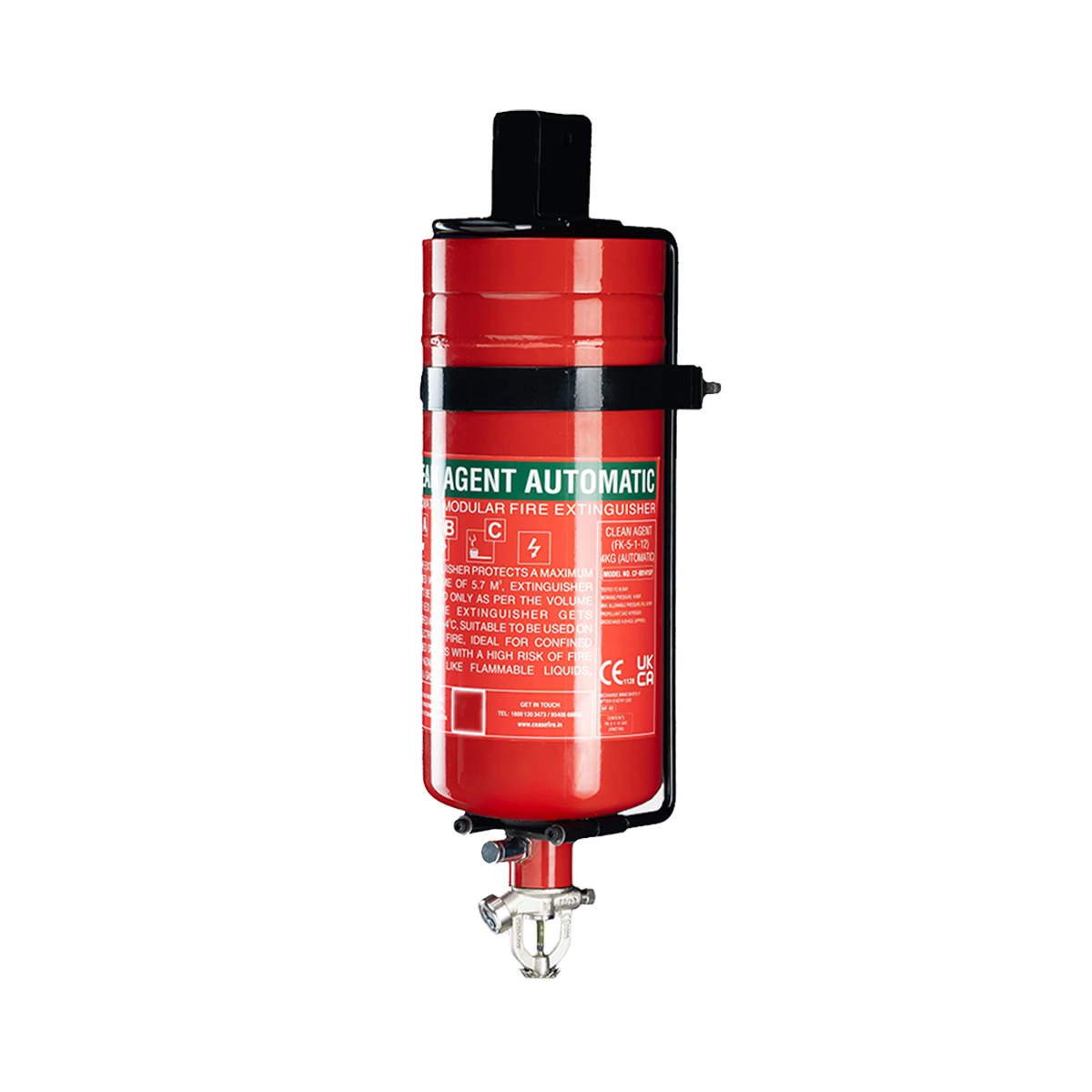

The Atom-X M Series Clean Agent Automatic Fire Extinguisher - Wall Mount (79˚C Bulb) is a fully self-contained unit equipped with thermal sensors that detect rising temperatures and activate automatically, even in unoccupied areas. This ensures rapid and effective fire suppression at the earliest stage.

These extinguishers are built to be:

• Intuitive (Self-Activating)

• Responsive (Monitorable)

• Scalable (Expandable)

Thanks to their modular design, these units can be retrofitted and installed across a wide range of spaces without requiring any structural alterations-enabling a self-reliant fire safety setup for any premises.

What truly sets the Ceasefire M Series apart is its capability to be both monitorable and scalable.

By integrating a Pressure Switch, the units can be connected to third-party systems for real-time monitoring. Additionally, by incorporating Metron Actuators and linking them to fire detection systems and a control panel, the extinguishers can be expanded into a fully integrated and scalable room fire suppression solution.

Making the M Series Automatic Extinguishers Monitorable

Each extinguisher unit is equipped with a pressure port, allowing it to be made monitorable by adding a Pressure Switch. This enables seamless integration with third-party systems such as fire alarm panels, standalone siren strobes, or building management systems (BMS).

With this setup, users receive immediate alerts upon activation during a fire event, while also gaining the ability to monitor the unit’s status for preventive maintenance, enhancing overall system reliability.

Scaling up to a Room Suppression System

The M Series extinguishers can be connected to form a comprehensive room fire suppression system by integrating Metron Actuators. These actuators, when linked with a control panel and detection network, enable synchronized activation of multiple units for total flooding and robust fire control.

Metron Actuator
When triggered by an electrical signal, the actuator releases a metal pin that breaks the glass vial in the Atom-X M unit, initiating discharge. All connected units equipped with metron actuators can be activated simultaneously for maximum coverage.

Pressure Switch
Extinguishing units deployed in the network are monitorable with the presence of a pressure switch. A pressure switch will trigger alarms in the event of a fire, which adds an extra element of safety to the Atom-X M Series. Furthermore, a pressure switch allows the user to do preventive maintenance of the system via a control panel.

Classification: Effective against all classes of fire.

Agent Options: Available in Clean agent Fluoroketone (FK) and ABC Dry powder.

Requires Minimal Fittings: A key advantage of the system is that it does not require an extensive network of pipes, fittings and ducts; and the plumbing & mechanical works associated with it.

Cost Effective Solution: Since the system does not require so many fittings, fixtures and plumbing, it works out to be highly cost effective.

Easy to Install: The system is a retro-fittable one and hence can be installed in a running and functional premises without hindering the daily business operations of the place. This is because minimal structural changes are required to be done in the premises to install the system.

Targeted protection: Option flexible mounting bracket that enables optimal positioning of the extinguisher in the risk zone proving targeted protection.

Intelligent Detection: The detection module of the system can include devices that are most suitable to address the risks present at the premises.

Certification: BSI tested and PED approved.
