The C-TEC Moflash EX Intrinsically Safe Beacon is a surface-mounted visual warning device designed for use in hazardous environments where intrinsically safe signalling is essential.

Engineered for potentially explosive atmospheres, it delivers a bright, high-visibility indication through a high-output lens and is enclosed in a robust, flame-retardant polycarbonate housing to ensure long-term durability and dependable performance.

A built-in DIP switch allows the user to select between a 1 Hz flashing mode or a continuous (static) output, providing flexibility to meet specific site requirements.

Rated to IP66, the Moflash EX beacon is fully protected against dust ingress and powerful water jets, making it suitable for both indoor and outdoor applications. For correct operation, it must be installed as part of an intrinsically safe circuit using an approved zener barrier or galvanic isolator.

• Intrinsically safe beacon for hazardous area applications

• Designed for use in potentially explosive atmospheres

• Dip-switch selectable signal – 1 Hz flash or static

• IP66 rated for dust and water ingress protection

• Flame-retardant polycarbonate housing

• Low current consumption of 33 mA in alarm condition

• Suitable for surface mounting

• Requires use with an approved zener barrier or galvanic isolator

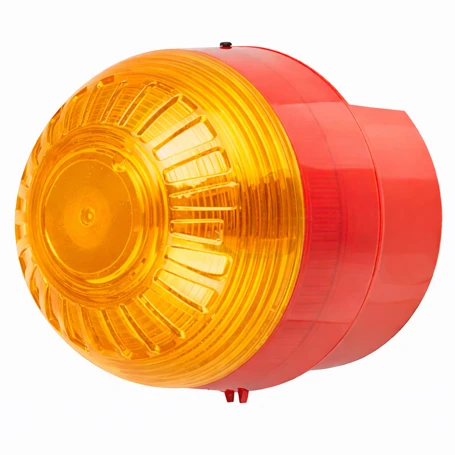

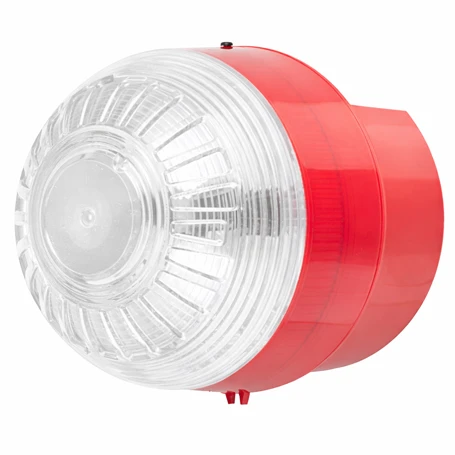

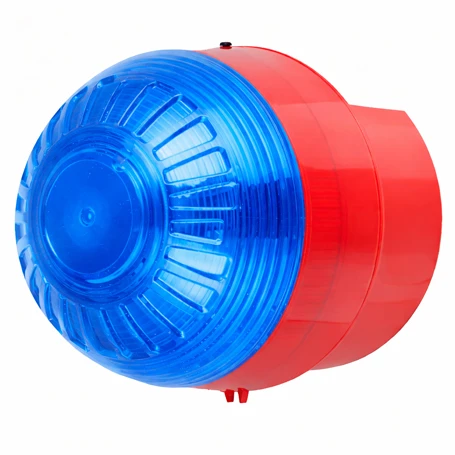

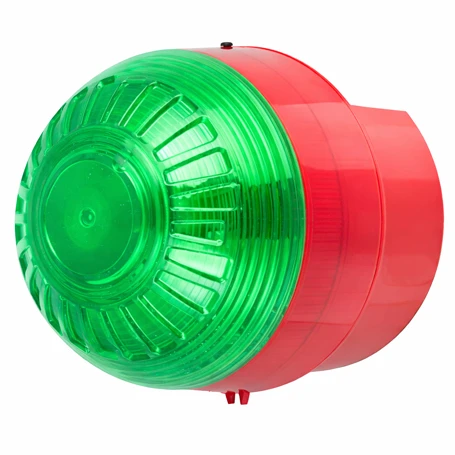

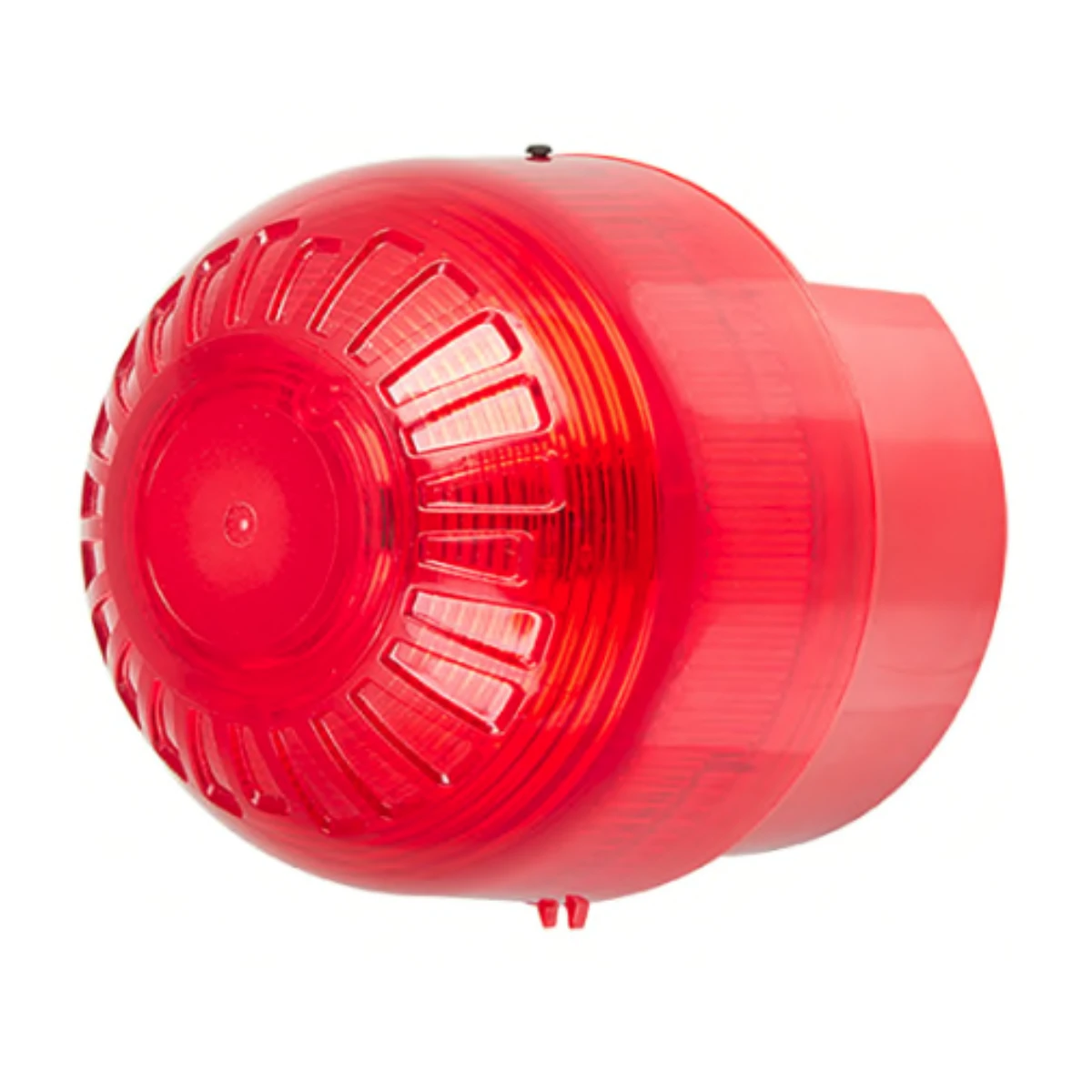

• Available with amber, red, blue, green or white lens options
