C-TEC ZFP Addressable Fire Alarm Control Panel

Continue shopping

Go to Basket

C-TEC ZFP Addressable Fire Alarm Control Panel

Name: C-TEC ZFP Addressable Fire Alarm Control Panel
Brand: C-tec
SKU: TF007/103
Price: 1060.092 GBP
Availability: InStock

Code: TF007/103

Zone-l-e-ds Loop-cards

We aim to deliver in 1-2 working days*

Have a question about this? Click here

*Delivery can depends on the items in your basket, we keep you informed about shipping once your order is placed.

Overview Features Technical Data Downloads & Resources

The C-TEC ZFP touchscreen-controlled addressable fire panel is a configurable fire alarm control panel designed for use with Apollo XP95 and Discovery addressable devices. Housed in C-TEC’s standard cabinet, the panel can be configured with 1, 2 or 4 loop drivers and a choice of blank module, 20 zone LEDs or 40 zone LEDs, allowing the panel configuration to be matched to the requirements of the installation.

Access to system information and menu-sensitive controls is available via the full-colour 480 x 272 pixel touchscreen. Rapid loop learning, flexible cause and effect programming and system diagnostics assist with commissioning and ongoing system management. Each loop supports up to 126 addressable devices, with a maximum loop length of 1km and a maximum loop output current of 500mA.

The ZFP is third-party certified to EN54-2 and EN54-4 by Intertek and incorporates a 5A EN54-4 power supply. Two conventional sounder circuits are provided, together with programmable auxiliary inputs and relays. The RS485 peripheral bus supports additional system expansion through up to 15 A-Bus PCBs.

An optional ZHN network card provides a high-integrity, multi-path fault-tolerant RS485 network supporting up to 64 nodes, which is ideal for larger networks. The panel is also ENVISION Enabled for compatibility with C-TEC’s cloud-based data management and remote access software.

ZFP1/X, ZFP2/X and ZFP4/X base variants available
Choice of 1, 2 or 4 addressable loops
Selectable blank module, 20 zonal LEDs or 40 zonal LEDs
Apollo XP95 and Discovery compatible
Full-colour 480 x 272 pixel touchscreen
Up to 126 addressable devices per loop
Third-party certified to EN54-2 and EN54-4 by Intertek
5A EN54-4 internal power supply
Optional RS485 fault-tolerant networking for up to 64 nodes
ENVISION Enabled for cloud-based data management and remote access

Specification	Details
Model	ZFP1/X, ZFP2/X, ZFP4/X and derivatives

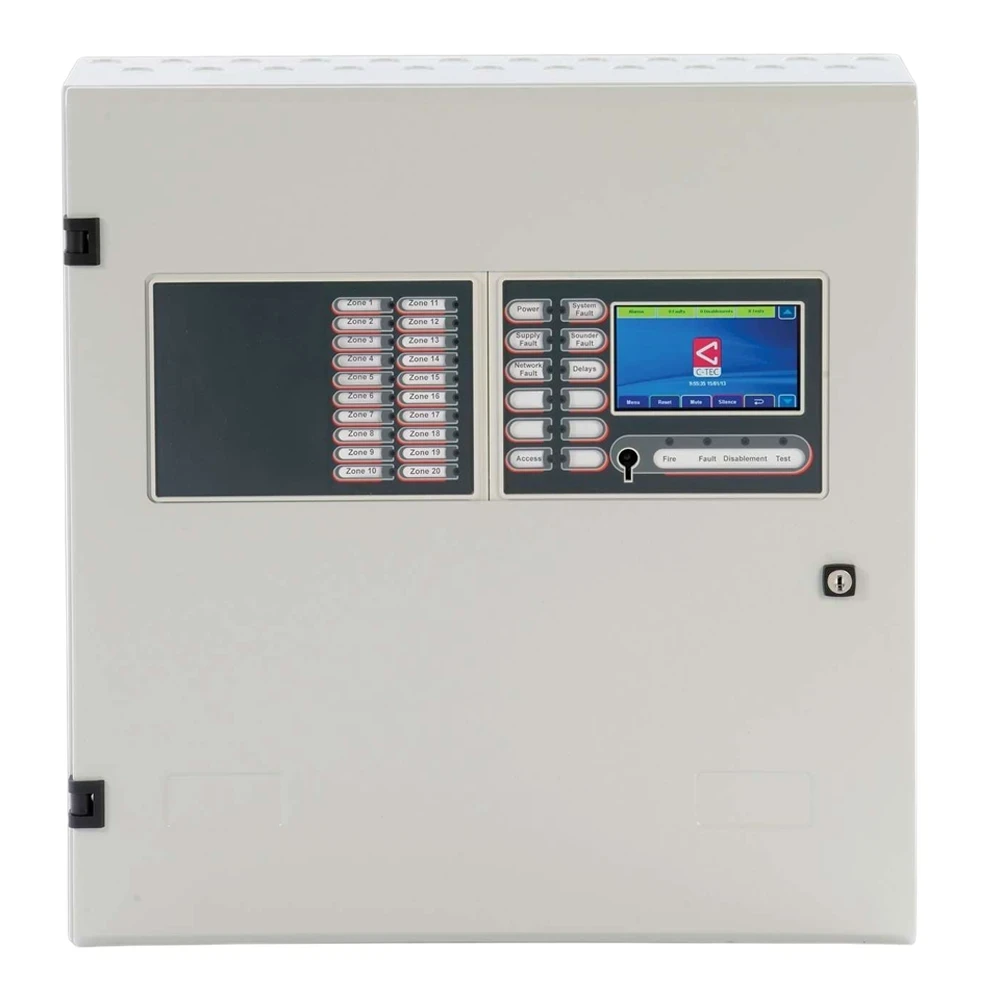

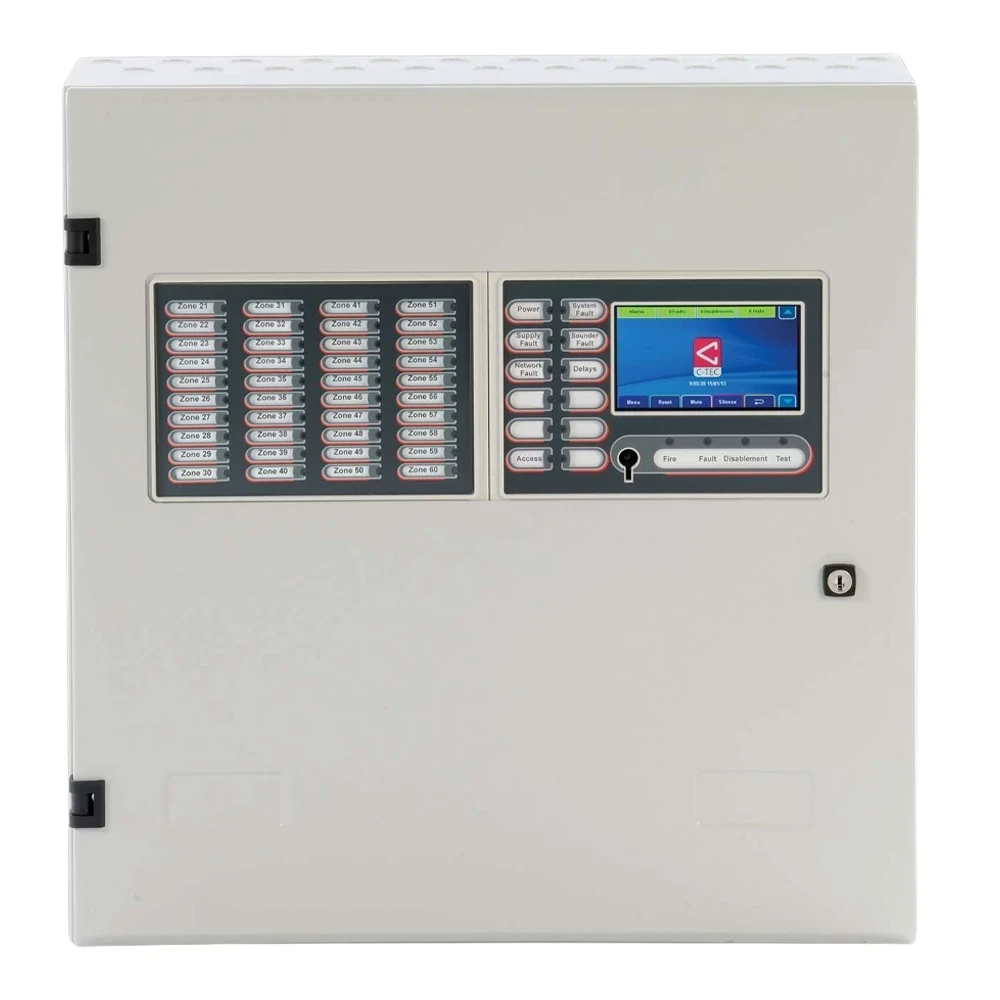

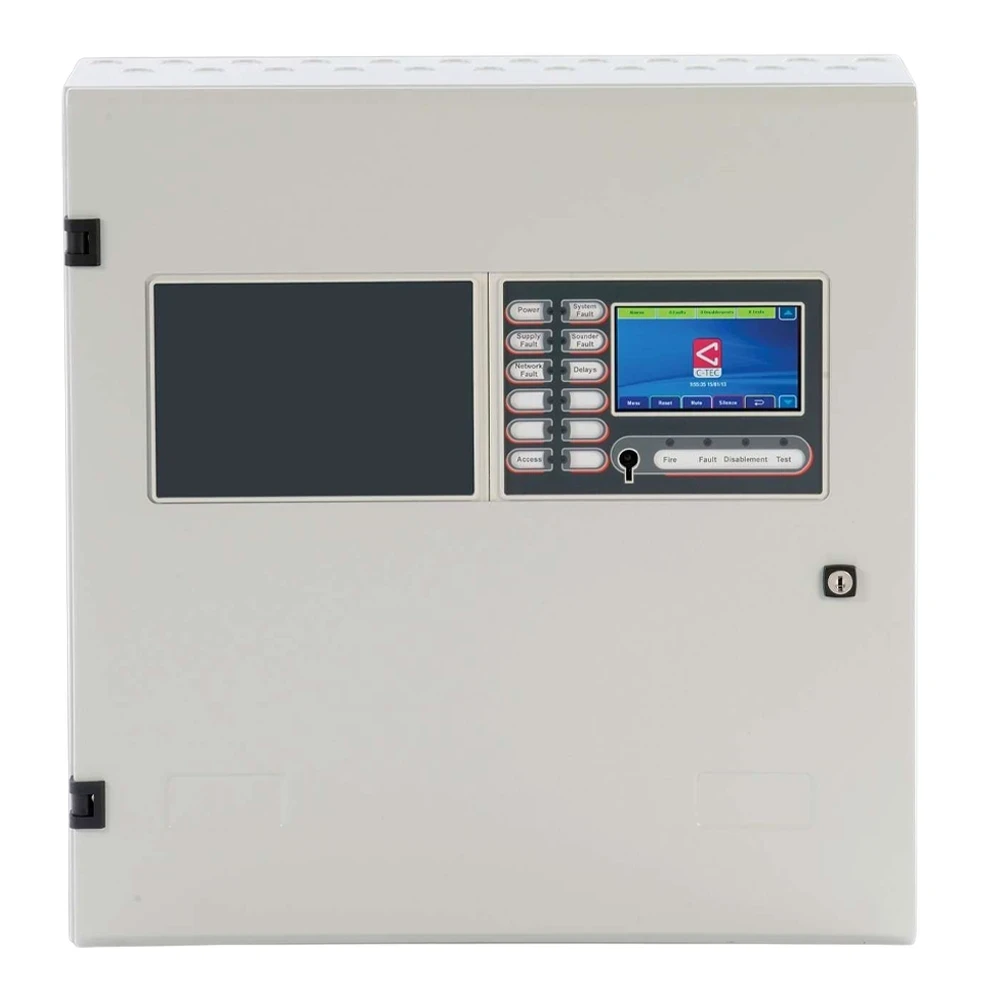

Zone LED Options	Blank Module, 20 Zonal LEDs, 40 Zonal LEDs
Loop Options	1, 2 or 4
Approvals / Certifications	Certified to EN54-2 & 4 by Intertek
Protocol / Compatibility	Apollo XP95/Discovery
Mains Supply	230V 50/60Hz
Mains Rated Current	1.35A maximum
Internal Power Supply	27Vdc nominal
Total Output Current	Limited to 5A @ 230Vac (Imax.A 4A; Imin. 12mA)
Battery Charge Capacity	7Ah min to 18Ah max
Maximum Battery Size and Type	2 x 12V 18Ah VRLA connected in series
Number of Loop Drivers	1, 2 or 4, dependent on model
Maximum Loop Output Current	500mA (25V min; 34V max)
Maximum Loop Length	1km
Maximum Addressable Devices Per Loop	126
Conventional Sounder Circuits	2, maximum length 500m per circuit
EOL Resistor Value	6800Ω 5% Tol. 0.25W
Maximum Sounder Output Current	2 x 1A
Auxiliary Relays	2 x programmable relays, 1 x fault relay
Relay Rating	Max. switch current 1A; max. switch voltage 30Vdc
Auxiliary Power Output	24V Aux. Power, 19.5V min to 28V max, 100mA maximum
Auxiliary Inputs	2 x programmable inputs, connect to 0V to trigger, 27V maximum input voltage
PC Connection	Galvanically isolated USB socket on Z41 control module
Pager / DECT Connection	RS232
Graphics / Diagnostics Connection	RS485, Drax compatible
Network Connection	Optional ZHN RS485 high-integrity multi-path fault-tolerant network
Maximum Network Nodes	64
Display	Full-colour 480 x 272 pixel touchscreen
Expansion	RS485 peripheral bus supports up to 15 A-Bus PCBs
Maximum Conductor Size	1mm²
Dimensions	450 W x 462 H x 127 D mm
Semi-Flush Mounting Aperture	456 W x 468 H x 122 D mm, requires ZBEZS bezel
Construction	Light grey textured mild steel, 1.2mm Zintec
Finish	RAL7035 epoxy paint
IP Rating	IP30
Operating Temperature	-5°C to +40°C
Maximum Relative Humidity	95%
1 Loop Variants	ZFP1/X, ZFP1/20/X, ZFP1/40/X
2 Loop Variants	ZFP2/X, ZFP2/20/X, ZFP2/40/X
4 Loop Variants	ZFP4/X, ZFP4/20/X, ZFP4/40/X
