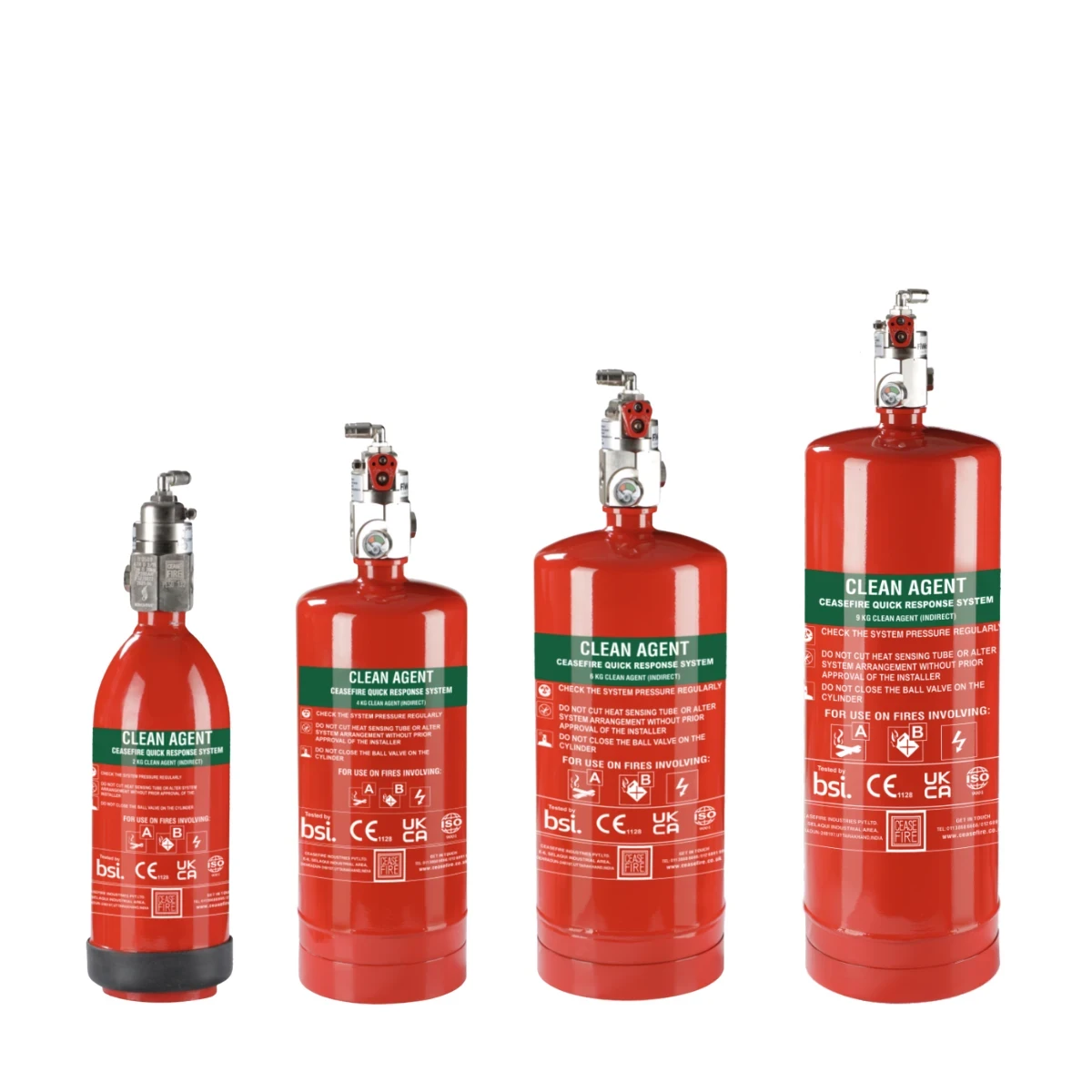

Ceasefire Clean Agent Indirect Tube Based Fire Suppression System

Name: Ceasefire Clean Agent Indirect Tube Based Fire Suppression System
Brand: Ceasefire
SKU: TF120-055-001
Price: 612.36 GBP
Availability: InStock

Code: TF120-055-001

Size

We aim to deliver in 1-2 working days*

Have a question about this? Click here

*Delivery can depends on the items in your basket, we keep you informed about shipping once your order is placed.

Overview Features Technical Data

Safeguarding high-risk micro-environments from fire can be a significant challenge for your premises. This tube based suppression system is designed to provide the fire protection you need in those challenging spaces.

The Tube Based Suppression System (Fluoroketone Clean Agent) - Indirect System, is designed to swiftly tackle fires in high-risk enclosed spaces. For example, cabinets, servers, engines and wind turbines.

This is an indirect system, meaning that the extinguishing agent is discharged from a metal conduit across multiple high risk points. The agent is discharged after the heat sensitive tube breaks, which causes the pressure to drop and the metal conduit to tackle the fire.

This fire suppression system uses Fluoroketone Clean Agent. Fluoroketone leaves no residue behind, making it environmentally friendly and ideal for use on sensitive electronic equipment.

Residue-Free: Being a clean agent, it wont leave behind oily residue, particulate or corrosive material.
Classification: Works on class A, B, fires and fires involving electrically-charged devices.
Self- Actuated: Does not require any power supply and will function normally in the event of a power outage.
Electronics-Friendly: Shown to be electrically non-conductive and is safe for electrically charged equipment.
High-value Risk Protection: Suitable for protection on a range of high-value risks as it virtually eliminates damage to high-tech equipment, artwork and other delicate and sensitive objects.
No Clean-up Required After Discharge: After a discharge, the extinguishing agent can be removed by simple ventilation.
24-hour Protection: Automatic detection and actuation controls ensure fire protection is always on.
Flexible Design: Flexible tubing allows protection in areas that are difficult to access and may not be able to accommodate any other means of detection.
Tackles a fire from multiple points.
Close to the high risk areas, meaning fires are tackled quickly at the ignition source which reduces damage.

Product Code	Unit of Measure	CF-001355	CF-001357	CF-001359	CF-0013561
Description		2kg- FK 5-1-12 clean agent with (ILP) with integrated ball valve.	4kg- FK 5-1-12 clean agent with (ILP) with integrated ball valve.	6kg- FK 5-1-12 clean agent with (ILP) with integrated ball valve.	9kg- FK 5-1-12 clean agent with (ILP) with integrated ball valve.
Capacity of Agent	KG	2 (-5%)	4 (-5%)	6 (-5%)	9 (-5%)
Certification		PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED
Diameter of Shell	MM	108	140	160	175
Total Height (approx.)	MM	403	465	510	635
MOC of Shell		M.S. Sheet (CRCA )	M.S. Sheet (CRCA )	M.S. Sheet (CRCA )	M.S. Sheet (CRCA )
Mini. Wall Thickness	MM	1.6	1.6	1.6	1.6
Test Pressure	BAR	35	35	35	35
Anti-Corrosive Treatment		Outer surfaces are EP Powder coated having Dry Film Thickness 50 Micron (Min.) RAL Shade 3000	Outer surfaces are EP Powder coated having Dry Film Thickness 50 Micron (Min.) RAL Shade 3000	Outer surfaces are EP Powder coated having Dry Film Thickness 50 Micron (Min.) RAL Shade 3000	Outer surfaces are EP Powder coated having Dry Film Thickness 50 Micron (Min.) RAL Shade 3000
Service Pressure	BAR	15	15	15	15
Type of Operating Mechanism		Automatic / Manual	Automatic / Manual	Automatic / Manual	Automatic / Manual
Type of Pressure Gauge		Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type
Type of Dis. pipe & Length	MM	Delivery pipe OD 10MM x 1MM Wall Thk. 5M	Delivery pipe OD 10MM x 1MM Wall Thk. 8 M	Delivery pipe OD 10MM x 1MM Wall Thk. 10M (Straight Line) 15 M (Ring Form)	Delivery pipe OD 10MM x 1MM Wall Thk. 12 M (Straight Line) 20 M (Ring Form)
No of Max. nozzles		2	4	6	8
Type of valve		Indirect Low Pressure Valve (ILP) with Single outlet	Indirect Low Pressure Valve (ILP) with Single outlet	Indirect Low Pressure Valve (ILP) with Single outlet	Indirect Low Pressure Valve (ILP) with Single outlet
Operating Temperature Range	°C	-20 C to 60 C	-20 C to 60 C	-20 C to 60 C	-20 C to 60 C
Applicable to Type of Fire		A, B, & Electrical Started Fire	A, B, & Electrical Started Fire	A, B, & Electrical Started Fire	A, B, & Electrical Started Fire
Product Warranty	YEAR	1	1	1	1

Overview

Features

Technical Data

Product Code	Unit of Measure	CF-001355	CF-001357	CF-001359	CF-0013561
Description		2kg- FK 5-1-12 clean agent with (ILP) with integrated ball valve.	4kg- FK 5-1-12 clean agent with (ILP) with integrated ball valve.	6kg- FK 5-1-12 clean agent with (ILP) with integrated ball valve.	9kg- FK 5-1-12 clean agent with (ILP) with integrated ball valve.
Capacity of Agent	KG	2 (-5%)	4 (-5%)	6 (-5%)	9 (-5%)
Certification		PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED
Diameter of Shell	MM	108	140	160	175
Total Height (approx.)	MM	403	465	510	635
MOC of Shell		M.S. Sheet (CRCA )	M.S. Sheet (CRCA )	M.S. Sheet (CRCA )	M.S. Sheet (CRCA )
Mini. Wall Thickness	MM	1.6	1.6	1.6	1.6
Test Pressure	BAR	35	35	35	35
Anti-Corrosive Treatment		Outer surfaces are EP Powder coated having Dry Film Thickness 50 Micron (Min.) RAL Shade 3000	Outer surfaces are EP Powder coated having Dry Film Thickness 50 Micron (Min.) RAL Shade 3000	Outer surfaces are EP Powder coated having Dry Film Thickness 50 Micron (Min.) RAL Shade 3000	Outer surfaces are EP Powder coated having Dry Film Thickness 50 Micron (Min.) RAL Shade 3000
Service Pressure	BAR	15	15	15	15
Type of Operating Mechanism		Automatic / Manual	Automatic / Manual	Automatic / Manual	Automatic / Manual
Type of Pressure Gauge		Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type
Type of Dis. pipe & Length	MM	Delivery pipe OD 10MM x 1MM Wall Thk. 5M	Delivery pipe OD 10MM x 1MM Wall Thk. 8 M	Delivery pipe OD 10MM x 1MM Wall Thk. 10M (Straight Line) 15 M (Ring Form)	Delivery pipe OD 10MM x 1MM Wall Thk. 12 M (Straight Line) 20 M (Ring Form)
No of Max. nozzles		2	4	6	8
Type of valve		Indirect Low Pressure Valve (ILP) with Single outlet	Indirect Low Pressure Valve (ILP) with Single outlet	Indirect Low Pressure Valve (ILP) with Single outlet	Indirect Low Pressure Valve (ILP) with Single outlet
Operating Temperature Range	°C	-20 C to 60 C	-20 C to 60 C	-20 C to 60 C	-20 C to 60 C
Applicable to Type of Fire		A, B, & Electrical Started Fire	A, B, & Electrical Started Fire	A, B, & Electrical Started Fire	A, B, & Electrical Started Fire
Product Warranty	YEAR	1	1	1	1
