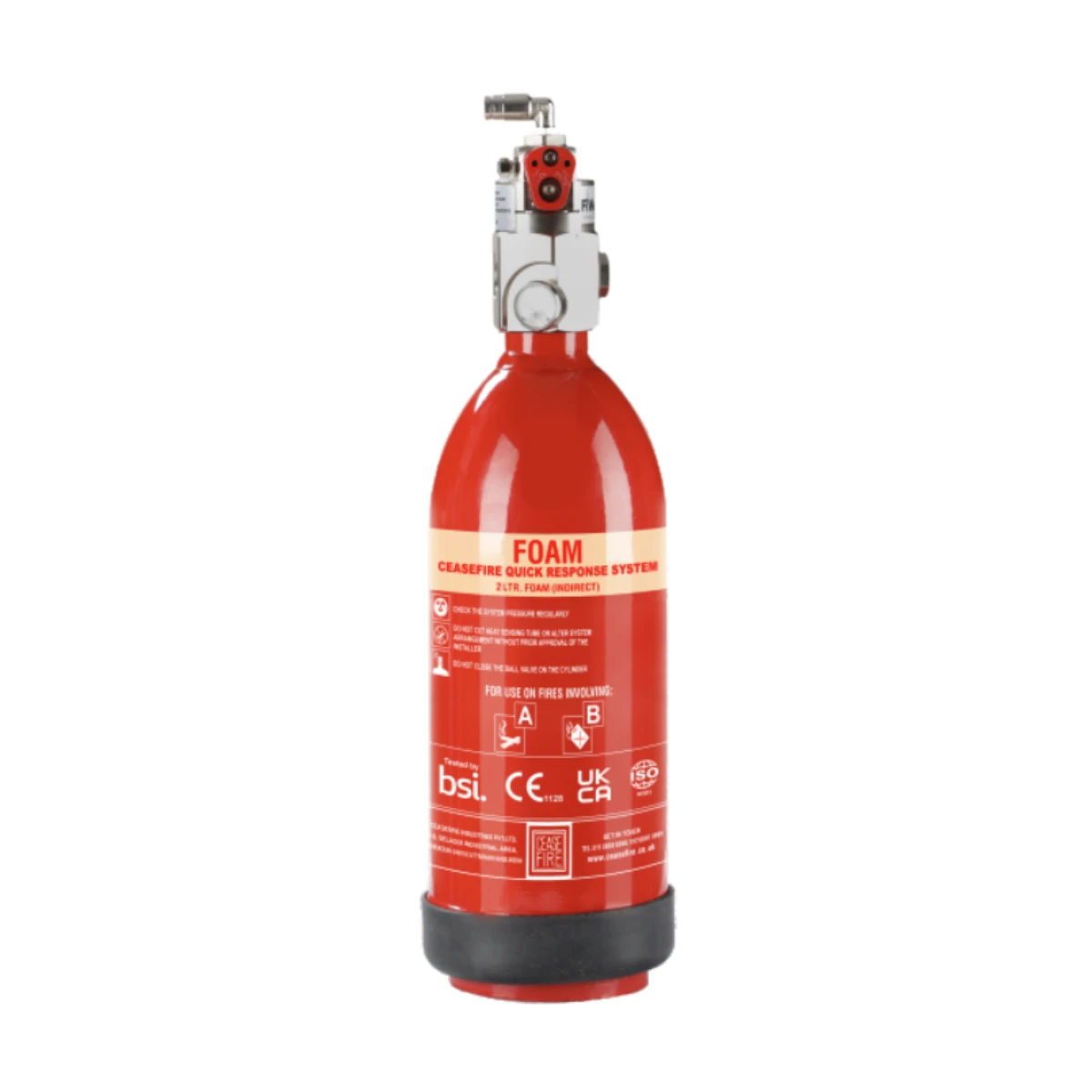

Ceasefire Foam Indirect Fire Suppression System

Name: Ceasefire Foam Indirect Fire Suppression System
Brand: Ceasefire
SKU: TF120-058-001
Price: 498.96 GBP
Availability: InStock

Code: TF120-058-001

Size

We aim to deliver in 1-2 working days*

Have a question about this? Click here

*Delivery can depends on the items in your basket, we keep you informed about shipping once your order is placed.

Overview Features Technical Data

Safeguarding high-risk micro-environments from fire can be a significant challenge for your premises. This tube based suppression system is designed to provide the fire protection you need in those challenging spaces.

The Tube Based Suppression System (Foam) - Indirect System, is designed to swiftly tackle fires in high-risk enclosed spaces. For example, cabinets, generators, engines and wind turbines.

This is an indirect system, meaning that the extinguishing agent is discharged from a metal conduit across multiple high risk points. The agent is discharged after the heat sensitive tube breaks, which causes the pressure to drop and the metal conduit to tackle the fire.

This fire suppression system uses foam. Foam is highly effective and a fantastic choice for swiftly tackling fires in industrial areas.

Classification: Works on class A, B fires and those involving flammable liquids. Effective on a wide range of flammable and combustible liquids such as oil and petrol.
Self- Actuated: Does not require any power supply and will function normally in the event of a power outage.
24-hour Protection: Automatic detection and actuation controls ensure fire protection is always ‘on’.
Flexible Design: Flexible tubing allows protection in areas that are difficult to access and may not be able to accommodate any other means of detection.
International Quality Standards: Manufactured to the highest global and national standards like BSI, ISI and CE. The system is also BSI tested for Forced and Natural Air Flow cabinet applications.
Rugged Design: Can withstand even harsh conditions where other types of detection systems might be rendered inadequate.

Product Code	Unit of Measure	CF-001507	CF-001508	CF-001385	CF-001386
Description		2L FFF ILP system	3L FFF ILP system	6L FFF ILP system	9L FFF ILP system
Capacity of Agent	KG	2	3	6	9
Certification		PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED
Diameter of Shell	MM	108	140	160	175
Total Height (approx.)	MM	403	465	510	635
MOC of Shell		M.S. Sheet (CRCA grade 2)	M.S. Sheet (CRCA grade 2)	M.S. Sheet (CRCA grade 2)	M.S. Sheet (CRCA grade 2)
Mini. Wall Thickness	MM	1.6	1.6	1.6	2.0
Test Pressure	BAR	35	35	35	35
Anti-Corrosive Treatment		Outer surfaces are EP Powder coated having Thickness 50 Micron Min. RAL Shade 3000	Outer surfaces are EP Powder coated having Thickness 50 Micron Min. RAL Shade 3000	Outer surfaces are EP Powder coated having Thickness 50 Micron Min. RAL Shade 3000	Outer surfaces are EP Powder coated having Thickness 50 Micron Min. RAL Shade 3000
Service Pressure	BAR	15	15	15	15
Type of Operating Mechanism		Automatic / Manual	Automatic / Manual	Automatic / Manual	Automatic / Manual
Type of Pressure Gauge		Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type
Type of Dis. pipe & Length	MM	Delivery pipe OD 10MM x 1MM Wall Thk. 4 M Besides Nozzle Network	Delivery pipe OD 10MM x 1MM Wall Thk. 6 M Besides Nozzle Network	Delivery pipe OD 10MM x 1MM Wall Thk. 8 M Besides Nozzle Network	Delivery pipe OD 10MM x 1MM Wall Thk. 12 M Besides Nozzle Network
No of Max. nozzles		2	4	6	8
Type of valve		Indirect Low Pressure Valve (ILP) with two outlet	Indirect Low Pressure Valve (ILP) with two outlet	Indirect Low Pressure Valve (ILP) with two outlet	Indirect Low Pressure Valve (ILP) with two outlet
Operating Temperature Range	°C	5°C to 60°C	5°C to 60°C	5°C to 60°C	5°C to 60°C
Applicable to Type of Fire		A, B Class Fire	A, B Class Fire	A, B Class Fire	A, B Class Fire
Product Warranty	YEAR	1	1	1	1
