Eaton Flexi Bi-Wire 2 Zone Fire Alarm Kit (604-0002 Equivalent)

Name: Eaton Flexi Bi-Wire 2 Zone Fire Alarm Kit (604-0002 Equivalent)
Brand: Eaton
Price: 620.88 GBP
Availability: InStock

Code: TF192-912

We aim to deliver in 1-2 working days*

Have a question about this? Click here

*Delivery can depends on the items in your basket, we keep you informed about shipping once your order is placed.

Overview Features Technical Data

The Eaton Flexi Bi-Wire 2 Zone Fire Alarm Kit delivers a complete two-zone conventional fire alarm system using bi-wire technology, enabling detectors, sounders, and call points to run on the same cable pair.

It serves as a direct alternative to the Fike Twinflex Pro 2-Zone Kit (604-0002), providing equivalent functionality, simplicity, and installation practice.

All essential components are included, making it easy to install a compliant and low-maintenance system for small to medium commercial premises.

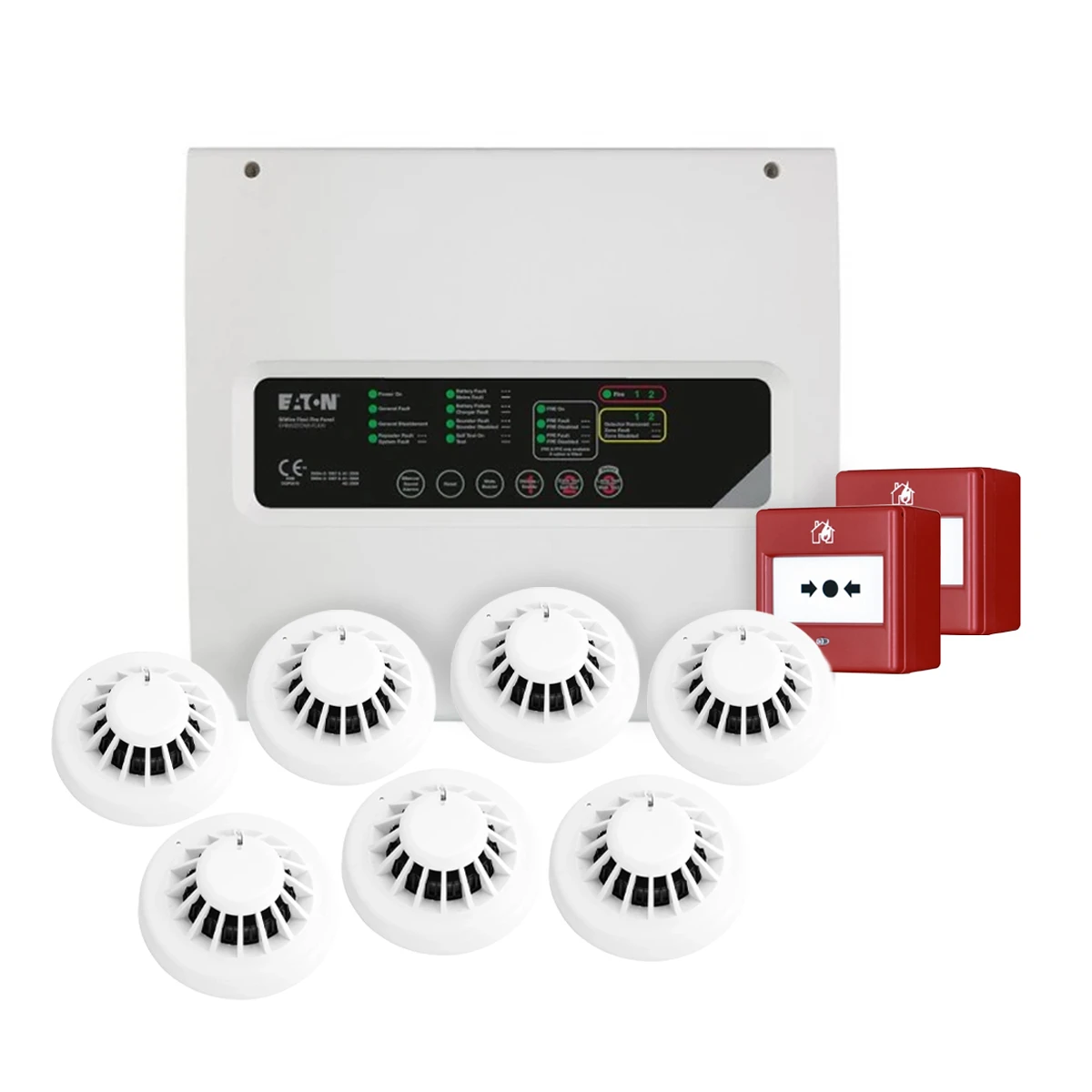

The kit contains a Flexi Bi-Wire 2 Zone Control Panel, detectors, bi-wire sounder bases, manual call points, and 12V batteries, providing installers with everything needed for a fast and dependable setup.

Each detector features multi-sensor technology to help minimise false alarms and enhance fire verification, with built-in sounders that activate immediately across the zone.

Eaton’s Bi-Wire range is recognised for robust construction, reliable operation, and long-term product support, making it a trustworthy replacement for Twinflex systems.

Suited to offices, retail units, small industrial sites, HMOs, and general commercial environments, this kit offers a cost-effective option for applications requiring a straightforward two-zone bi-wire system.

Fully compatible bi-wire technology allowing detectors, sounders and call points on a single pair of cables
Direct functional equivalent to the Fike Twinflex Pro 2 Zone Kit (604-0002)
Includes Eaton Flexi Bi-Wire 2-Zone Control Panel
Includes 7 × JSB FXN922 Photo-Thermal Multi-Mode Detectors
Includes 7 × Eaton Bi-Wire Sounder Bases
Includes 2 × Eaton Bi-Wire Manual Call Points
Includes 2 × Yuasa 12 Vdc Fire Alarm Batteries
Multi-sensor detection reduces false alarms
Quick installation with reduced wiring requirements
Suitable for small to medium commercial buildings
Ideal when Twinflex kit availability is limited

Specification	2 Zone Panel	4 Zone Panel	8 Zone Panel
Reference	EFW2Z-FLEXI	EFW4Z-FLEXI	EFW8Z-FLEXI
Description	2 zone panel	4 zone panel	8 zone panel
Input Voltage Range	18.75–30 V DC	18.75–30 V DC	18.75–30 V DC
Max Current Drawn From Battery	2.7 A	2.7 A	2.7 A
Number of Zones	2	4	8
Devices Per Zone	Bi-Wire: Max 32 Bi-Wire Detectors & MCPs incl. sounders (≤200mA) Conventional: Max 32 Conv Devices & MCPs
Max Loading Per Zone	200 mA
Standby Zone Voltage	Vmin 19V DC, Vmax 23V DC
Alarm Zone Voltage	Vmin 31V DC, Vmax 33V DC
Zone Fuse Protection	250 mA PTC
End of Line Termination	Bi-Wire: EOLM-3 Conventional: 4k7Ω or EOLM-1/3
Sounder Circuits	2 circuits (Bi-Wire or Conv)	2 circuits (Bi-Wire or Conv)	2 circuits in Bi-Wire, 4 circuits in Conv
Sounder Fuse Protection	250 mA PTC
Sounder EOL Termination	6k8Ω
Relay Outputs	Volt-free SPDT (30V DC, 1A)
Relay Output Fuse	500 mA PTC
Aux Output Voltage	11.6–13.0 V
Aux Output Current (max)	500 mA
Aux Output Fuse	500 mA PTC
Class Change Input	Open = Normal, Short = All Sounders
Repeater Port	RS485
Node ID	1
Operating Temp	-5°C to +40°C
Humidity	93% ±3% non-condensing
IP Rating	IP30
Weight (excl. batteries)	2.25 kg
Material	PC ABS Front and Rear
Cable Access	29x 20mm drill positions
Cable Type	FT120 (Fitted/Optional)
Loop Cable	2-core (1.5–2.5 mm²), 500m max
Standards	EN54-2 & -4, BS5839 pt1
