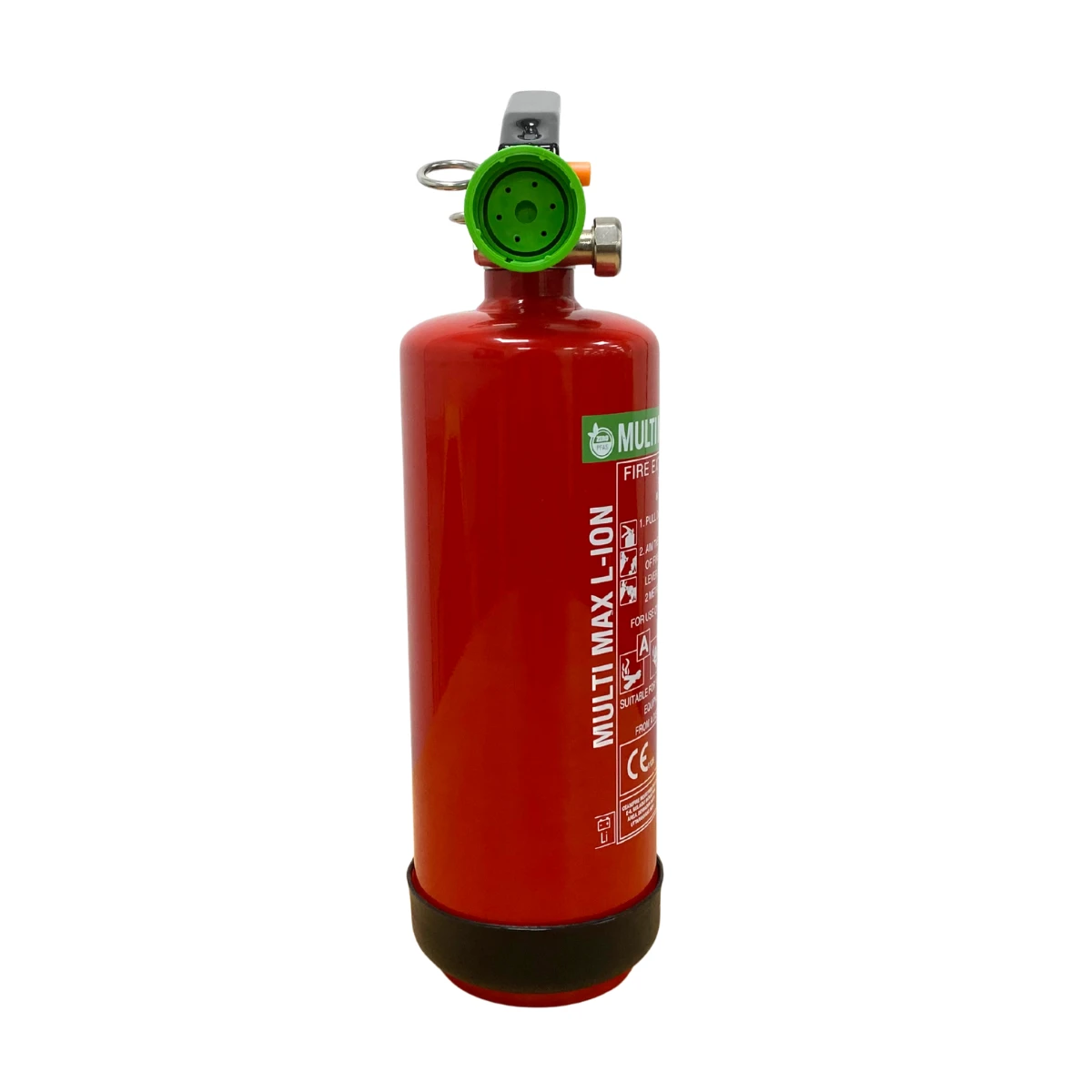

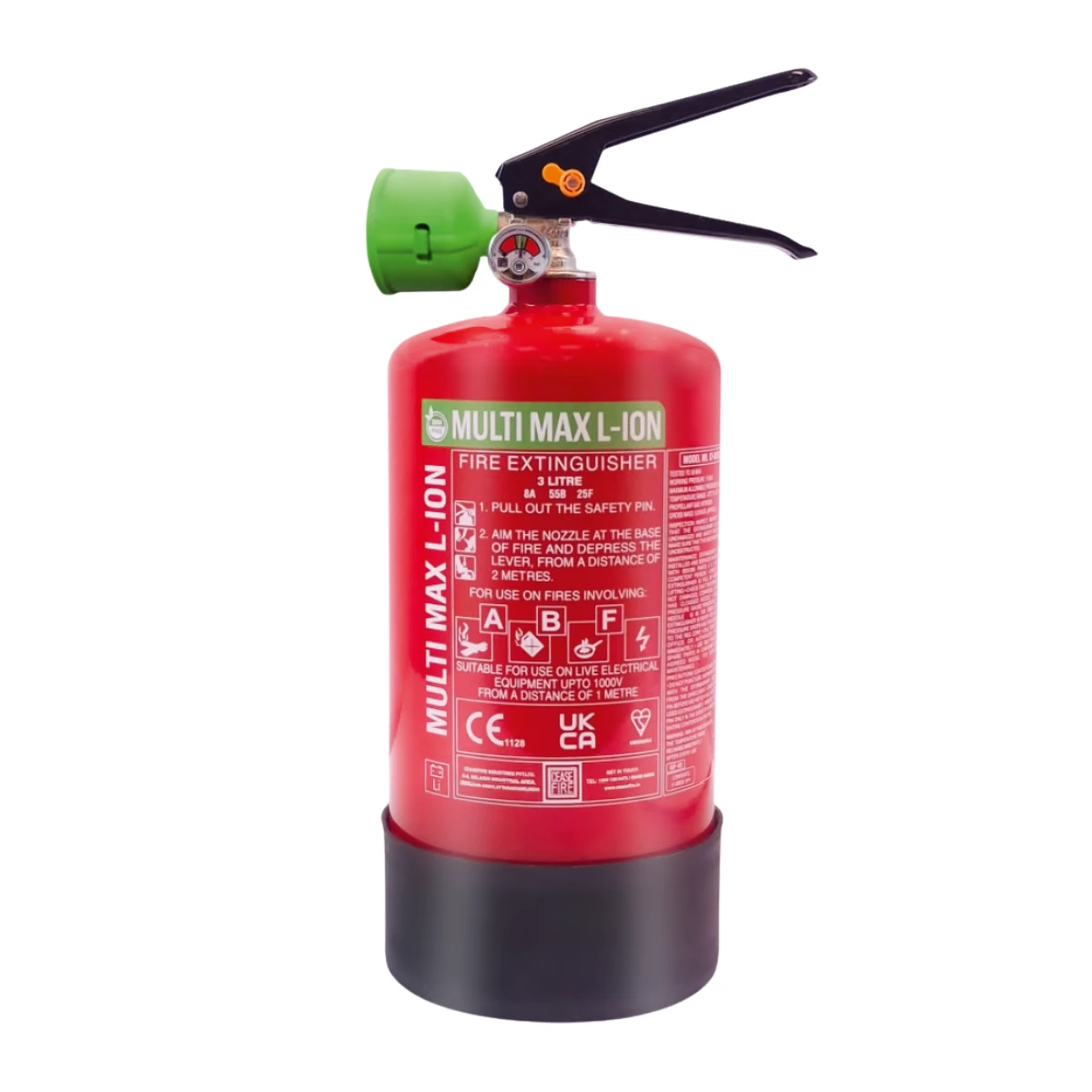

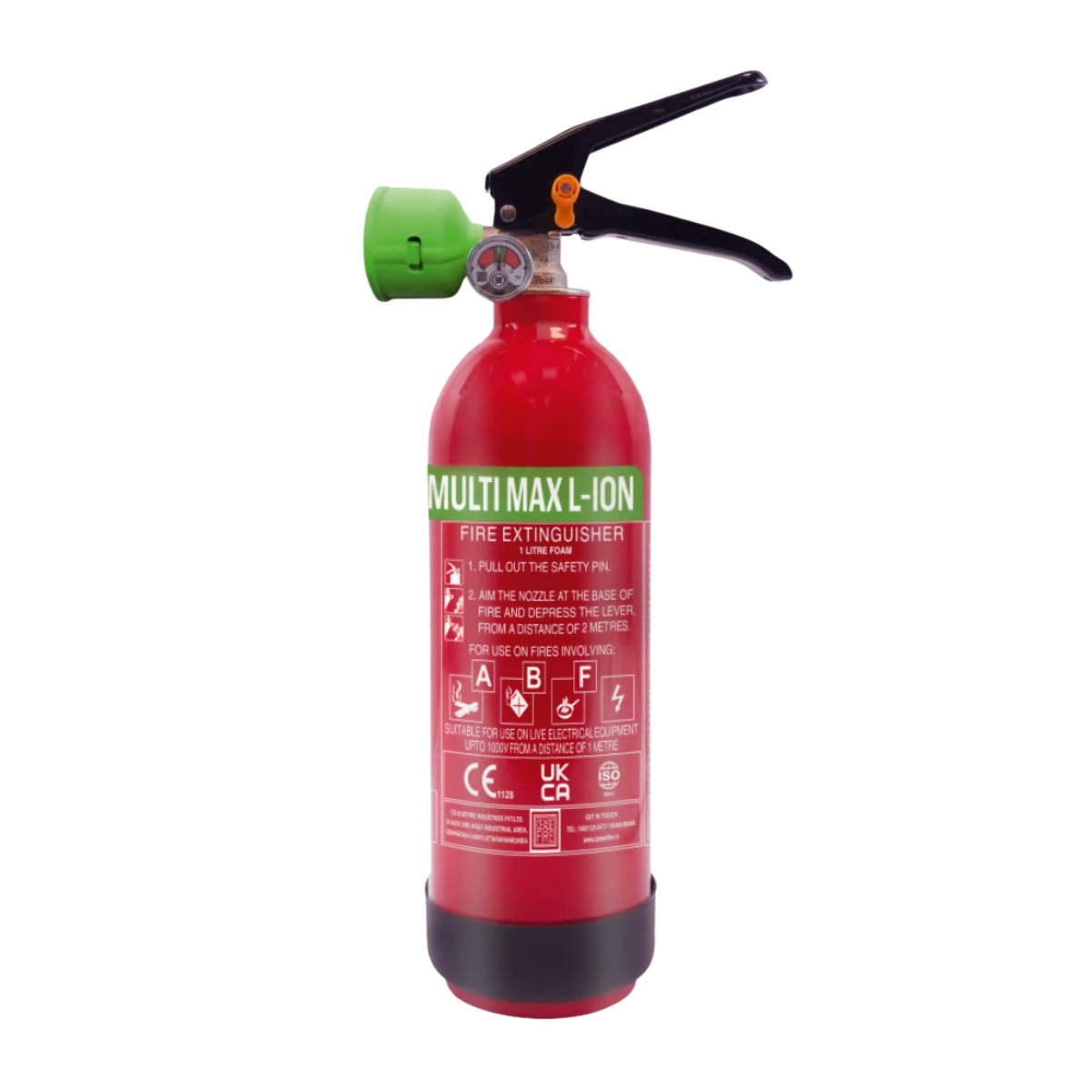

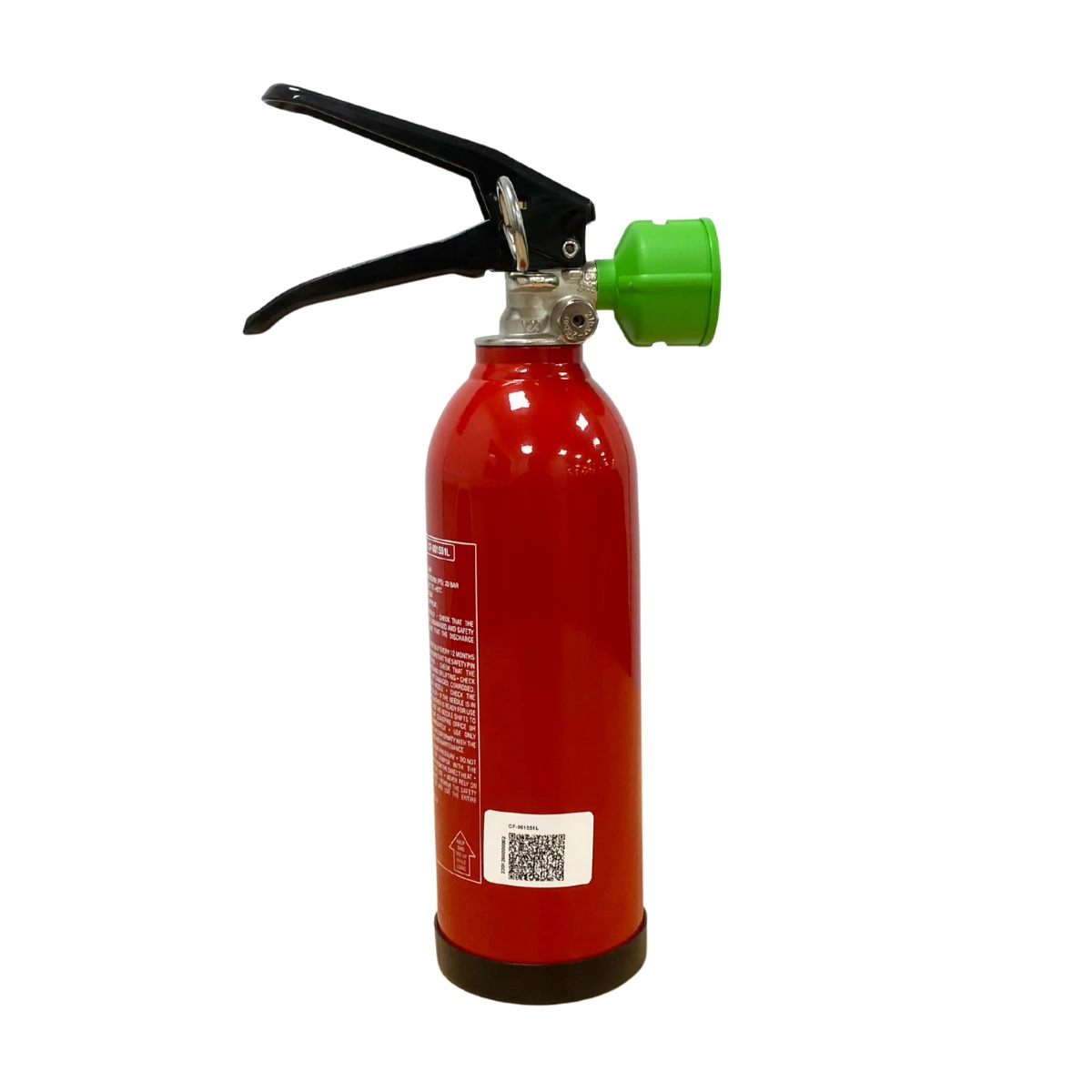

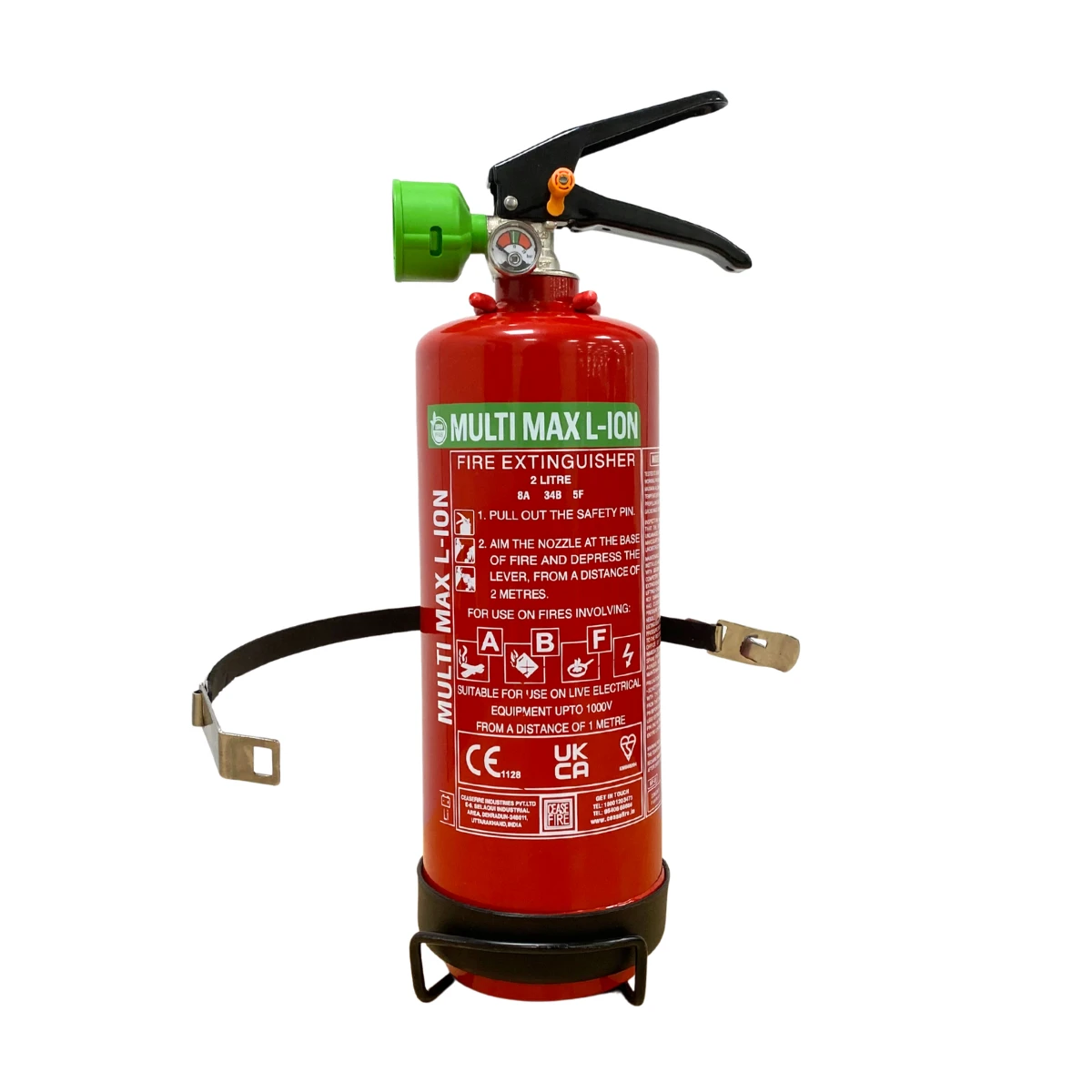

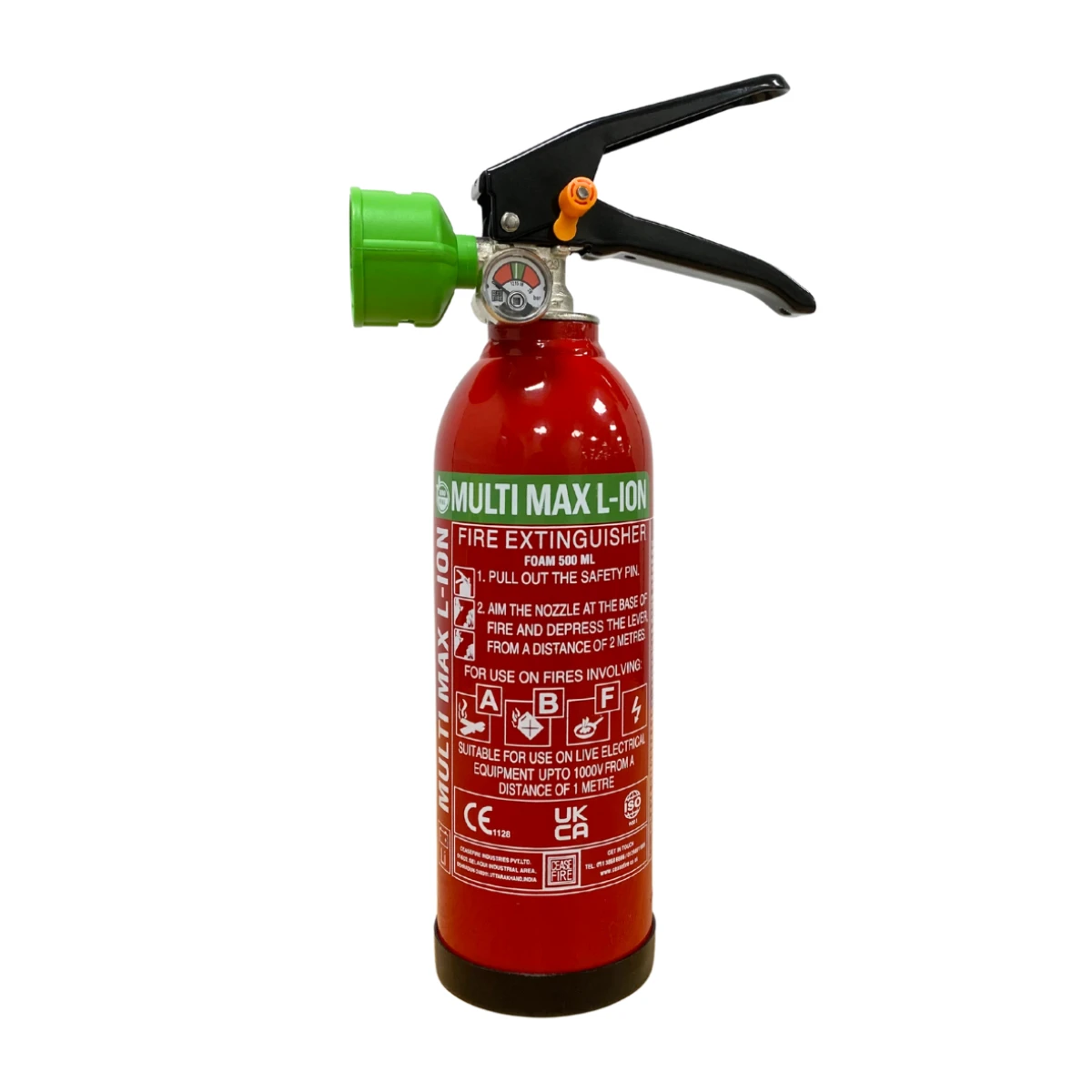

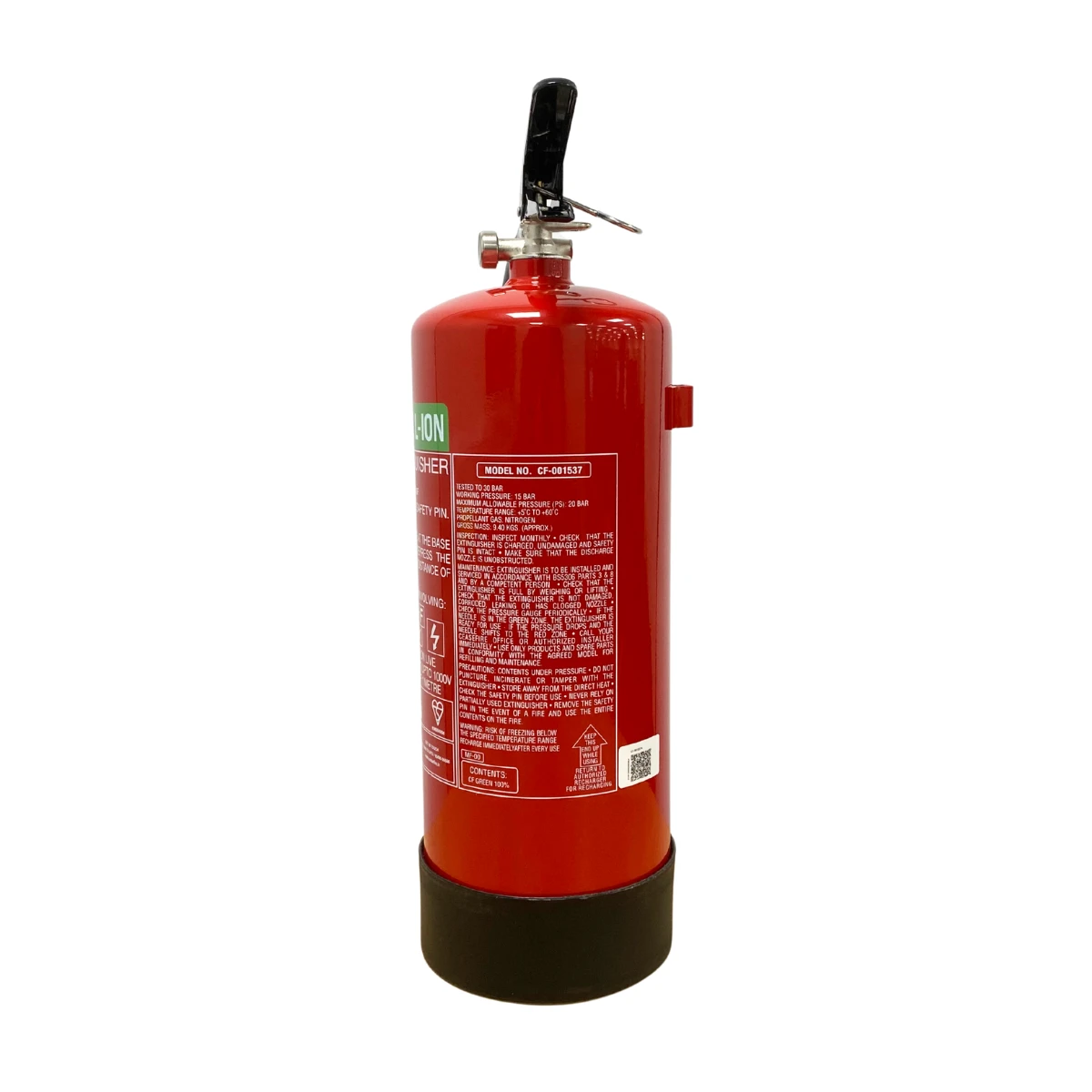

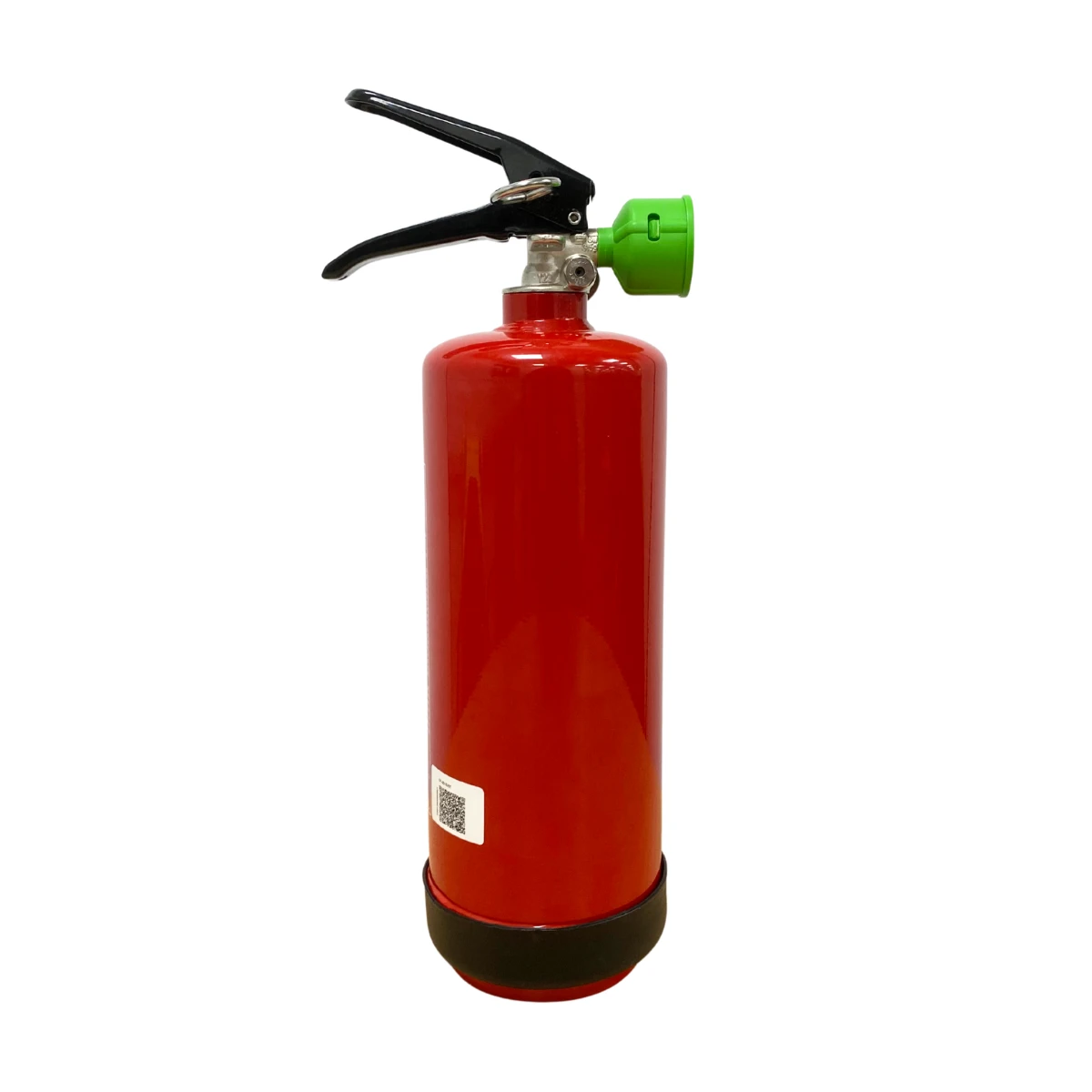

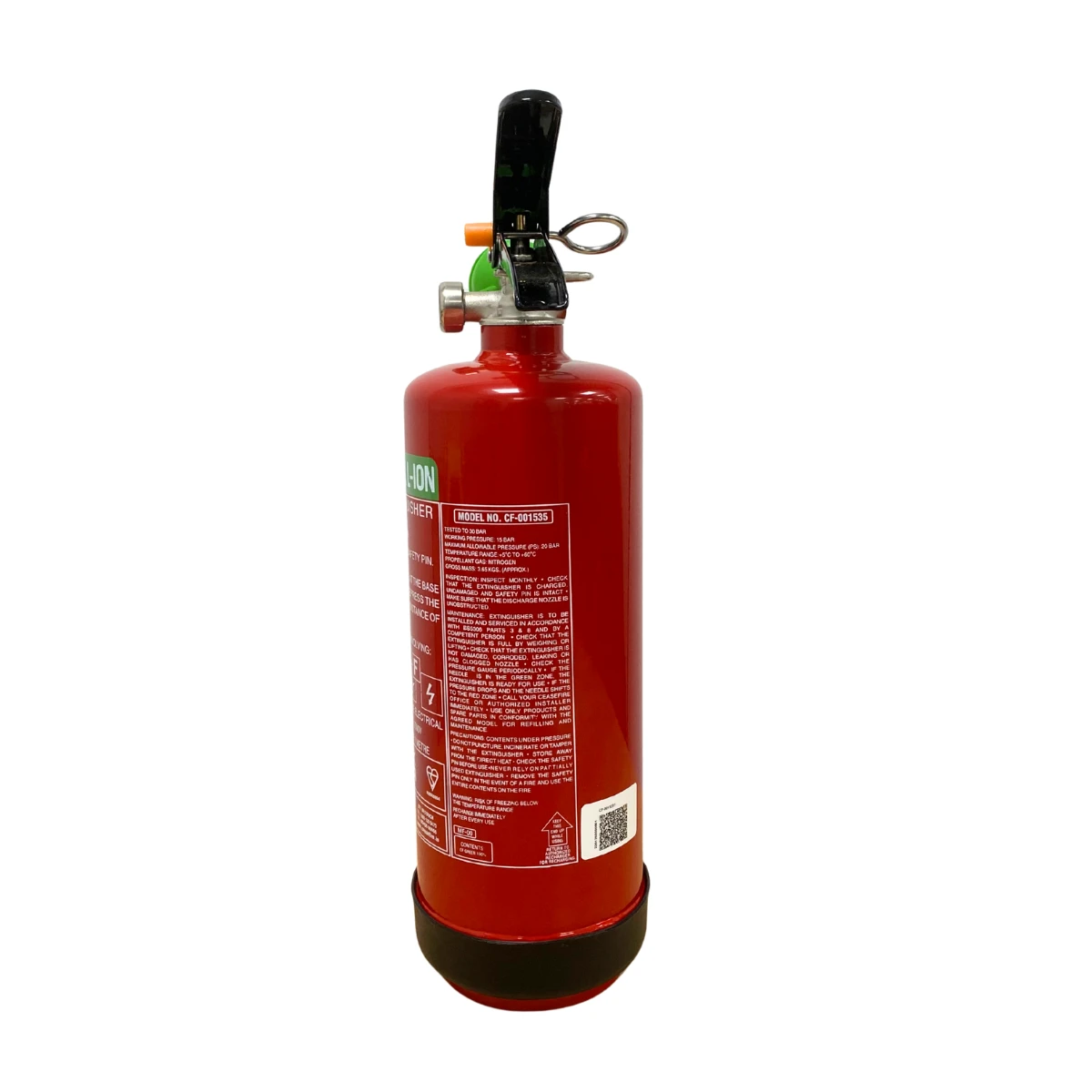

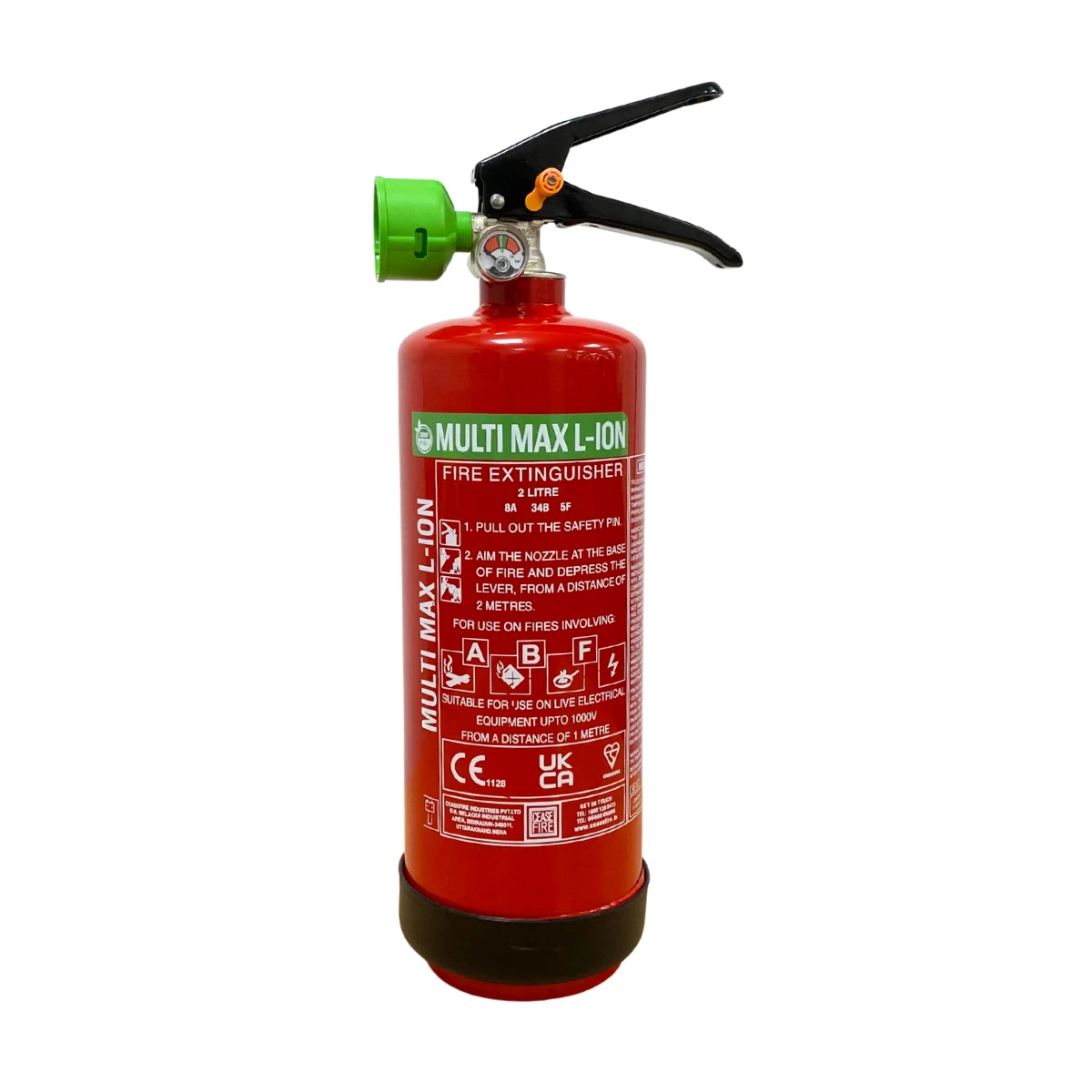

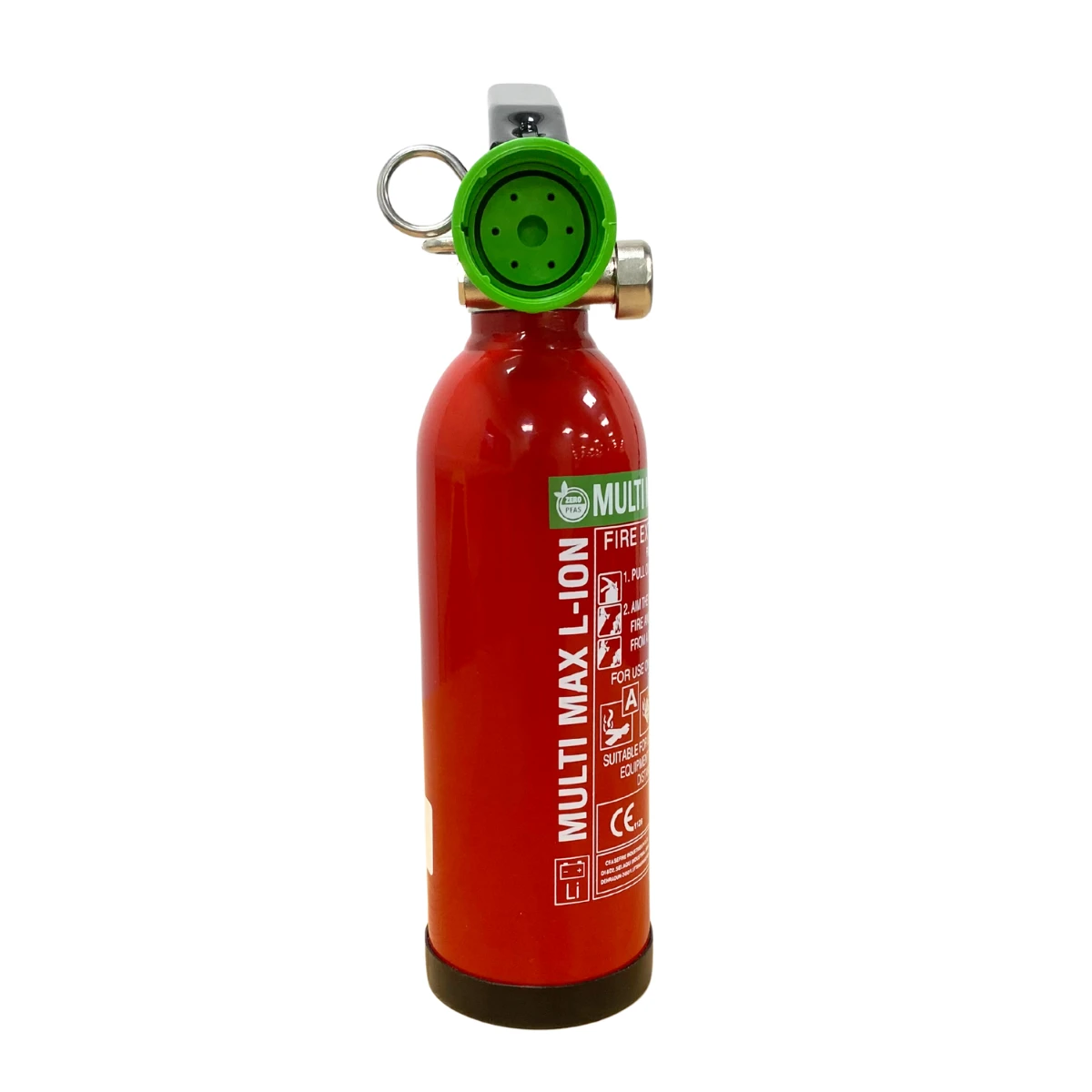

Multimax L-Ion Fire Extinguisher

Name: Multimax L-Ion Fire Extinguisher
SKU: TF600-001-01
Price: 23.987999999999996 GBP
Availability: InStock

Code: TF600-001-01

Size

We aim to deliver in 1-2 working days*

Have a question about this? Click here

*Delivery can depends on the items in your basket, we keep you informed about shipping once your order is placed.

Overview Features Technical Data Downloads & Resources

The Multimax L-Ion Fire Extinguisher is a next-generation, multipurpose solution designed to meet the evolving demands of modern fire safety. Engineered to tackle everything from everyday combustible materials to the growing risk of lithium-ion battery fires, it delivers powerful, reliable protection in a single, versatile unit.

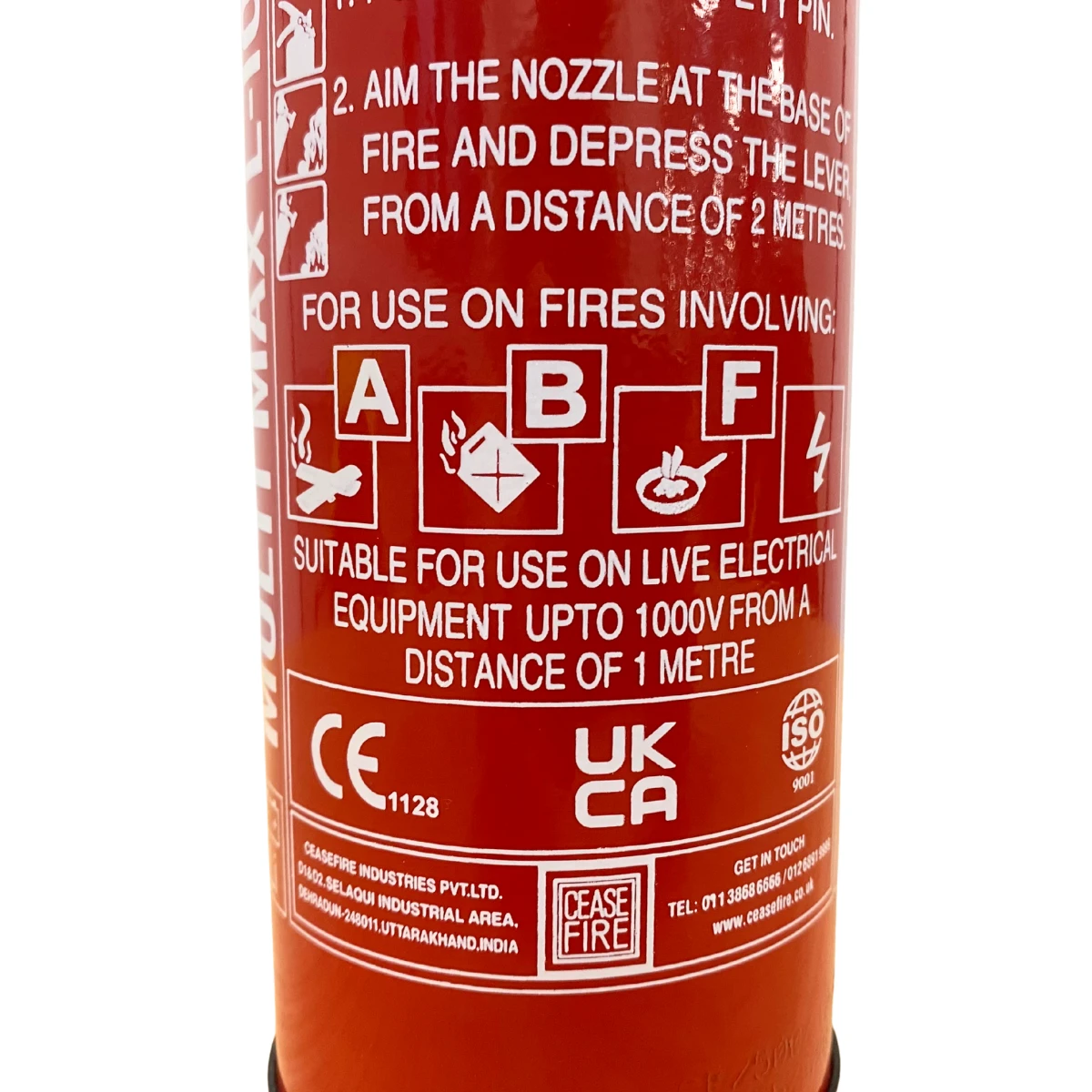

Suitable for Class A, B, C, F, Electrical and lithium-ion battery fires, providing broad-spectrum coverage, making it ideal for workplaces, commercial premises, industrial settings, vehicles, and environments where electronic devices and battery-powered equipment are present.

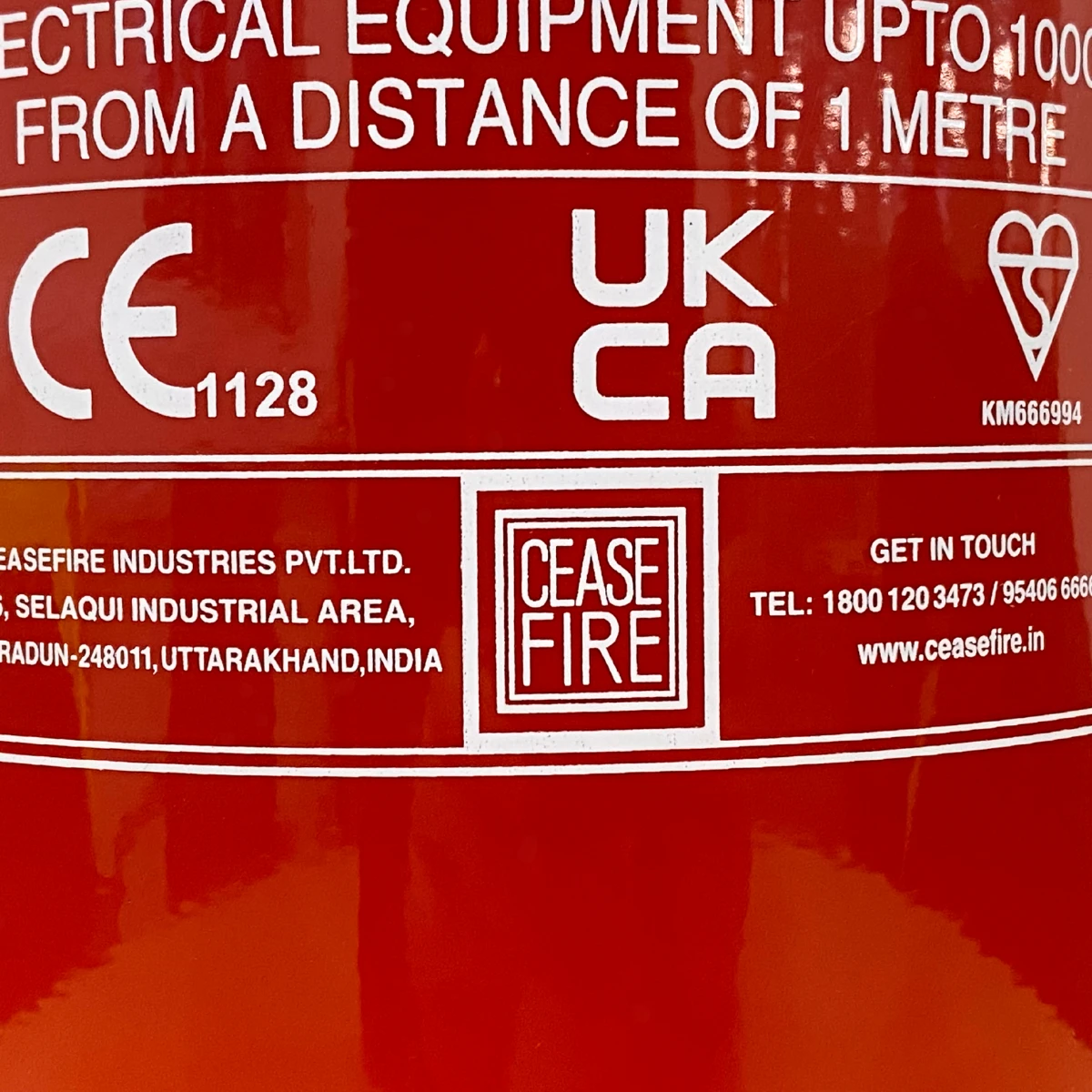

Tested to NTA 8133 standards and carrying BSI Kitemark, CE, and UKCA approvals, this extinguisher offers certified performance and peace of mind. Its PFAS-free, eco-friendly formulation ensures effective fire suppression without harmful environmental impact, while being safe for use on sensitive electronic equipment thanks to its non-conductive properties.

Available in sizes ranging from 500ml to 9 litres, the Multimax L-Ion provides flexible protection options to suit any environment.

*The Multimax fire extinguisher range has been tested to Australian standards for Class C fires

Multipurpose fire protection in one extinguisher

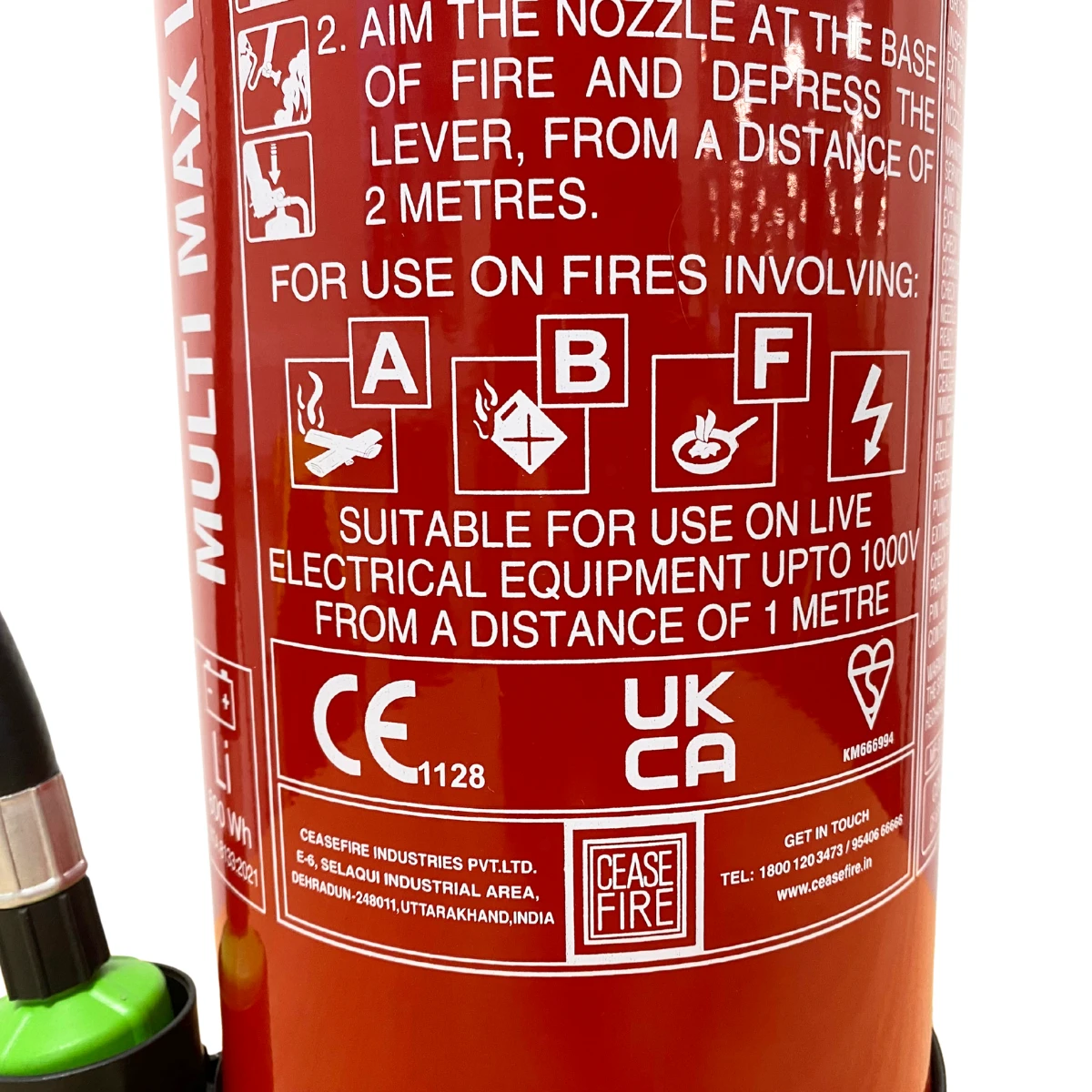

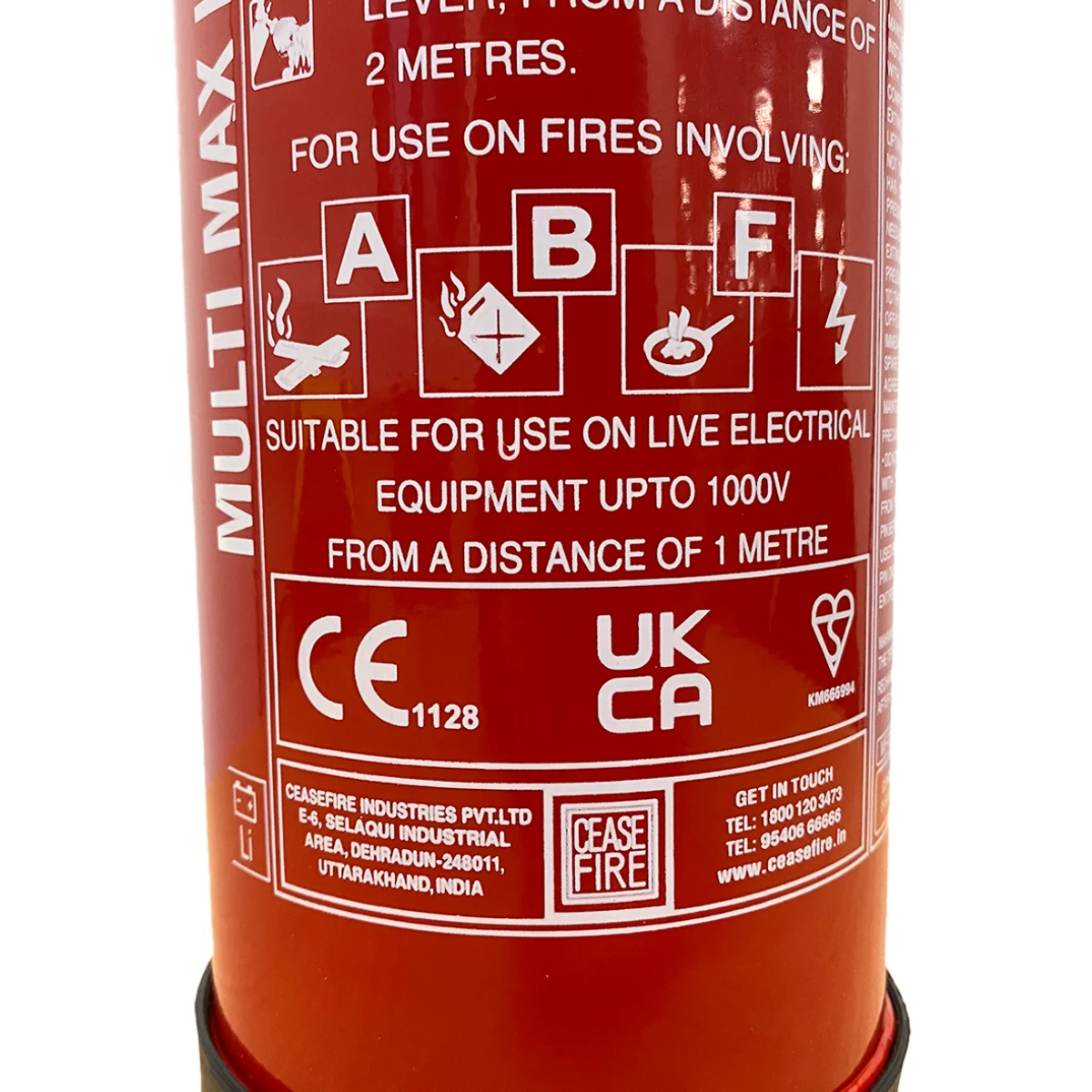

Suitable for Class A, B, C, Electrical, Lithium-Ion Battery, and Class F fires
NTA 8133 Tested
BSI Kitemarked
CE Marked and UKCA Approved

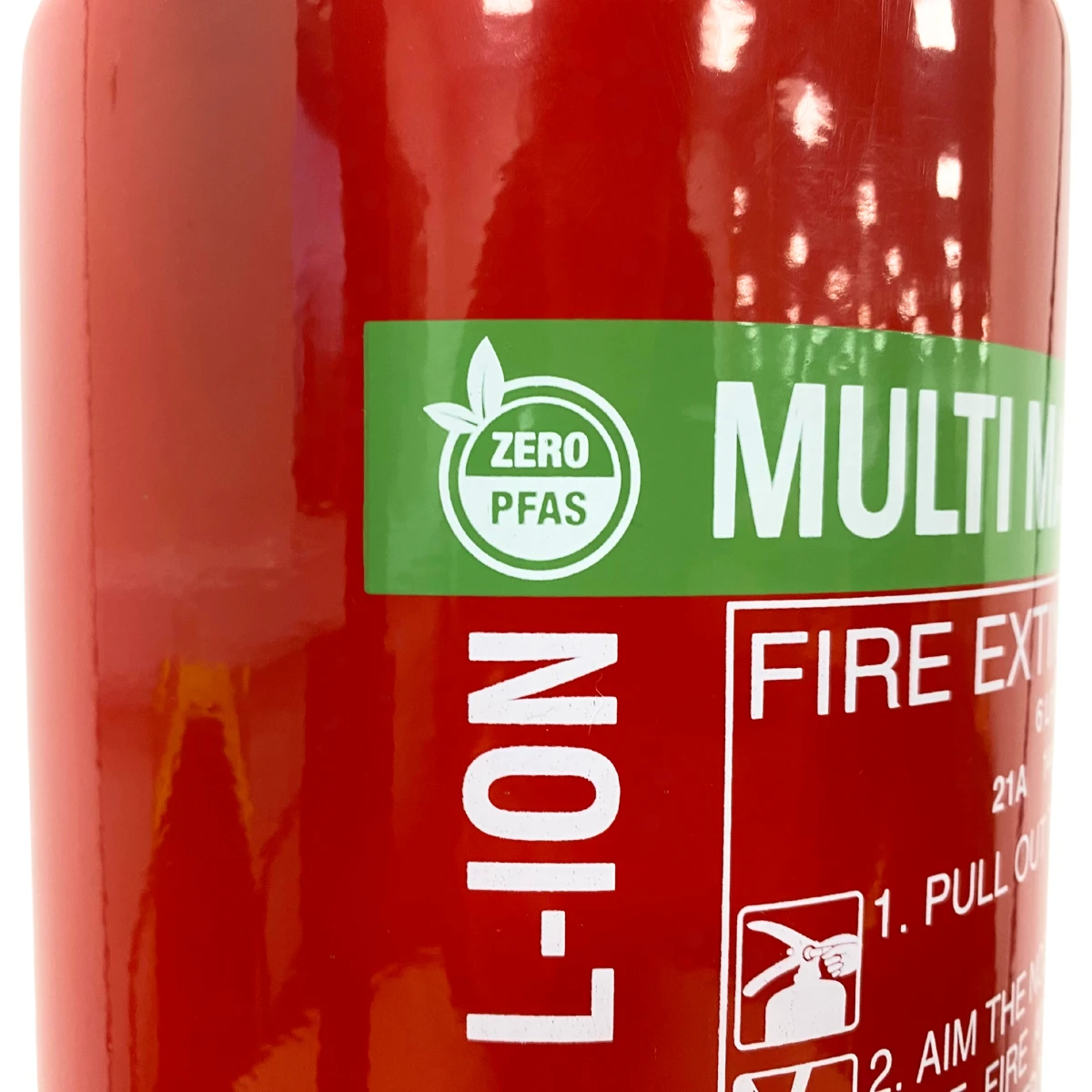

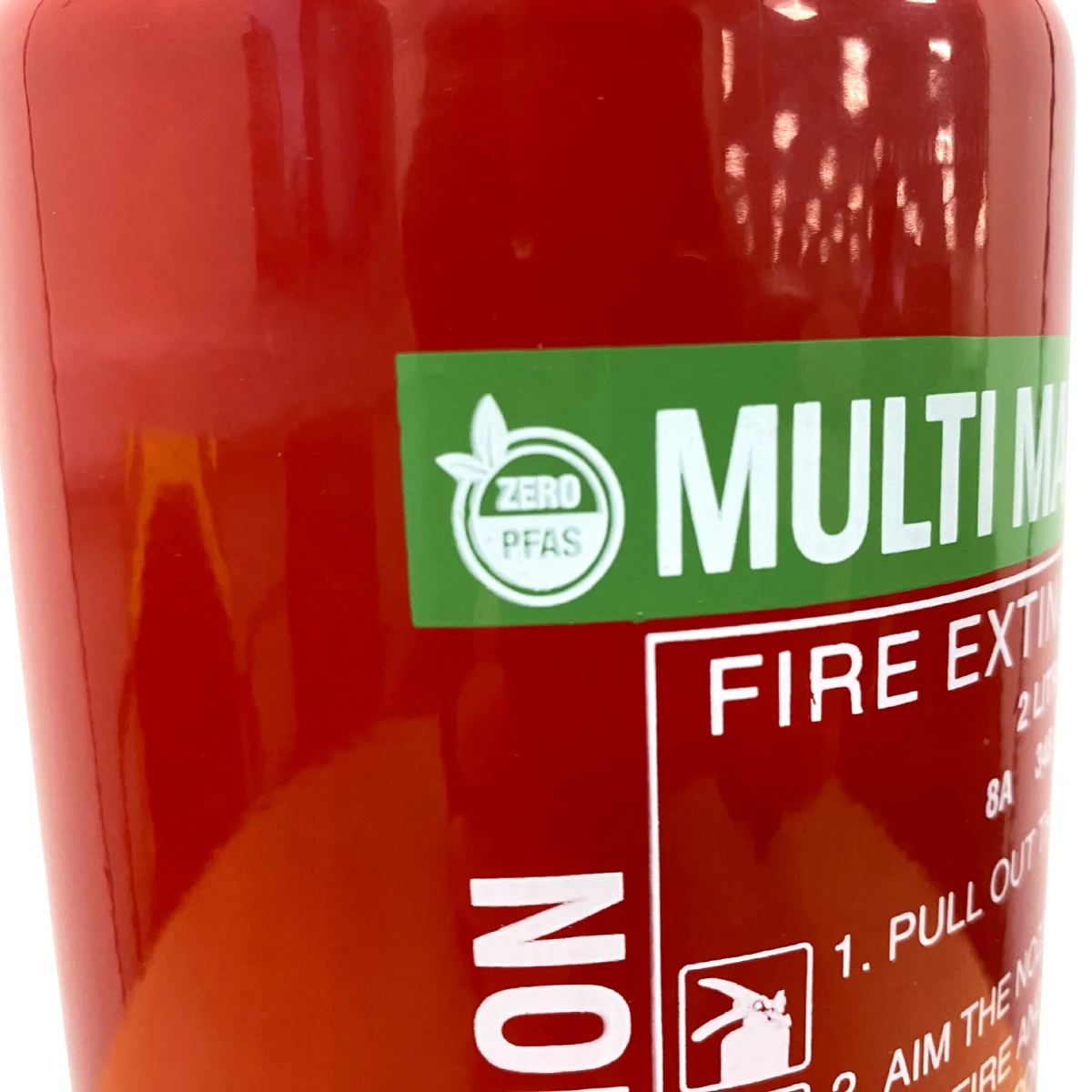

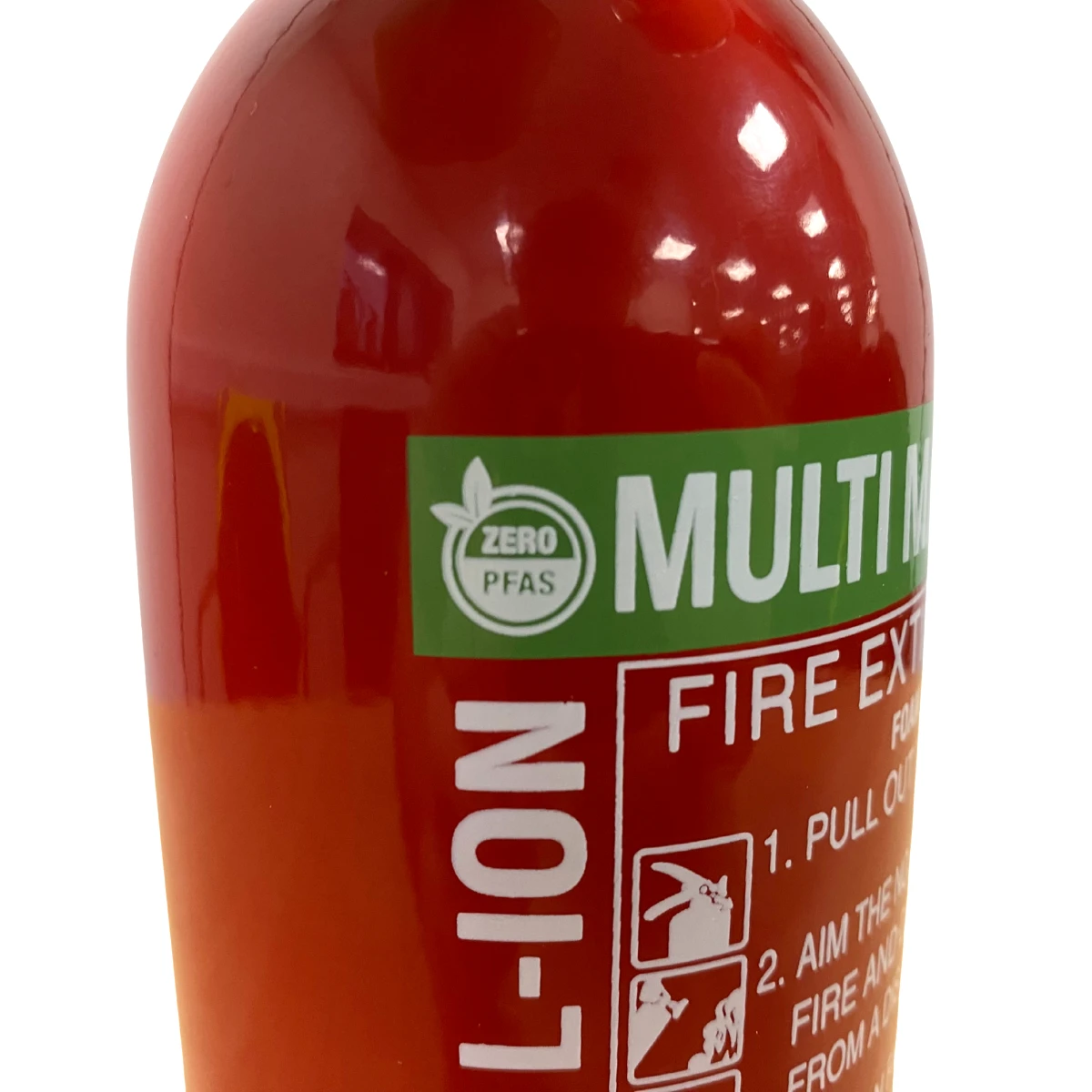

PFAS Free formulation
Safe for use on electronic equipment
Non-conductive
Eco-friendly
100% plastic free packaging
Available in 500ml, 1ltr, 2ltr, 3ltr, 6ltr and 9ltr sizes

	500ml MultiMax L-ion Fire Extinguisher	1ltr MultiMax L-ion Fire Extinguisher	2ltr MultiMax L-ion Fire Extinguisher	3ltr MultiMax L-ion Fire Extinguisher	6ltr MultiMax L-ion Fire Extinguisher	9ltr MultiMax L-ion Fire Extinguisher
Capacity	500ml	1ltr	2ltr	3ltr	6ltr	9ltr
Filling Tolerance	+5%	+5%	+5%	+5%	+5%	+5%
Shell Diameter	77.5mm	92mm	112mm	145mm	217mm	236mm
Minimum Wall Thickness	1.2mm	1mm	1.4mm	1.2mm	1.4mm	1.4mm
External Corrosion Protection	EP Powder Coated, RAL 3000 Red	EP Powder Coated, RAL 3000 Red	EP Powder Coated, RAL 3000 Red	EP Powder Coated, RAL 3000 Red	EP Powder Coated, RAL 3000 Red	EP Powder Coated, RAL 3000 Red
Service Pressure	15 Bar	15 Bar	15 Bar	15 Bar	15 Bar	15 Bar
Pressure Gauge	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type
Valve Material	Nickel Coated Brass	Nickel Coated Brass	Nickel Coated Brass	Nickel Coated Brass	Nickel Coated Brass	Nickel Coated Brass
Average Discharge Duration (BS EN 3-7:2004+A1:2007, Clause 7.12)	10.5 seconds	11.5 seconds	12.5s	13.5 seconds	28s	28s
Fire Rating (EN3-7)	1A, 8B, F	2A**, 13B, 5F	8A, 34B, F	8A, 55B, 25F	21A, 144B, 40F	21A, 144B, 40F
Suitable Fire Classes	Class A, B, C***, Electrical, F & Li-Ion Battery	Class A, B, C***, Electrical, F & Li-Ion Battery	Class A, B, C***, Electrical, F & Li-Ion Battery	Class A, B, C***, Electrical, F & Li-Ion Battery	Class A, B, C***, Electrical, F & Li-Ion Battery	Class A, B, C***, Electrical, F & Li-Ion Battery
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years	5 Years
Agent	CF Green 100%	CF Green 100%	CF Green 100%	CF Green 100%	CF Green 100%	CF Green 100x
Certification	PED (CE Marked)	PED (CE Marked)	PED (CE Marked), Kite Marked	PED (CE Marked), Kite Marked	PED (CE Marked), Kitemarked, Tested to NTA 8133	PED (CE Marked), Kitemarked, Tested to NTA 8133
Shell Material	Steel CR2 (DC01)	Steel CR2 (DC01)	Steel CR2 (DC01)	Steel CR2 (DC01)	Steel CR2 (DC01)	Steel CR2 (DC01)
Test Pressure	30 Bar	30 Bar	30 Bar	30 Bar	30 Bar	30 Bar
Internal Corrosion Pressure	Epoxy / Plastic Lining	Epoxy / Plastic Lining	Epoxy / Plastic Lining	Epoxy / Plastic Lining	Epoxy / Plastic Lining	Epoxy / Plastic Lining
Operating Mechanism	Squeeze Grip with NRV and PRV	Squeeze Grip with NRV and PRV	Squeeze Grip with NRV and PRV	Squeeze Grip with NRV and PRV	Squeeze Grip with NRV and PRV	Squeeze Grip with NRV and PRV

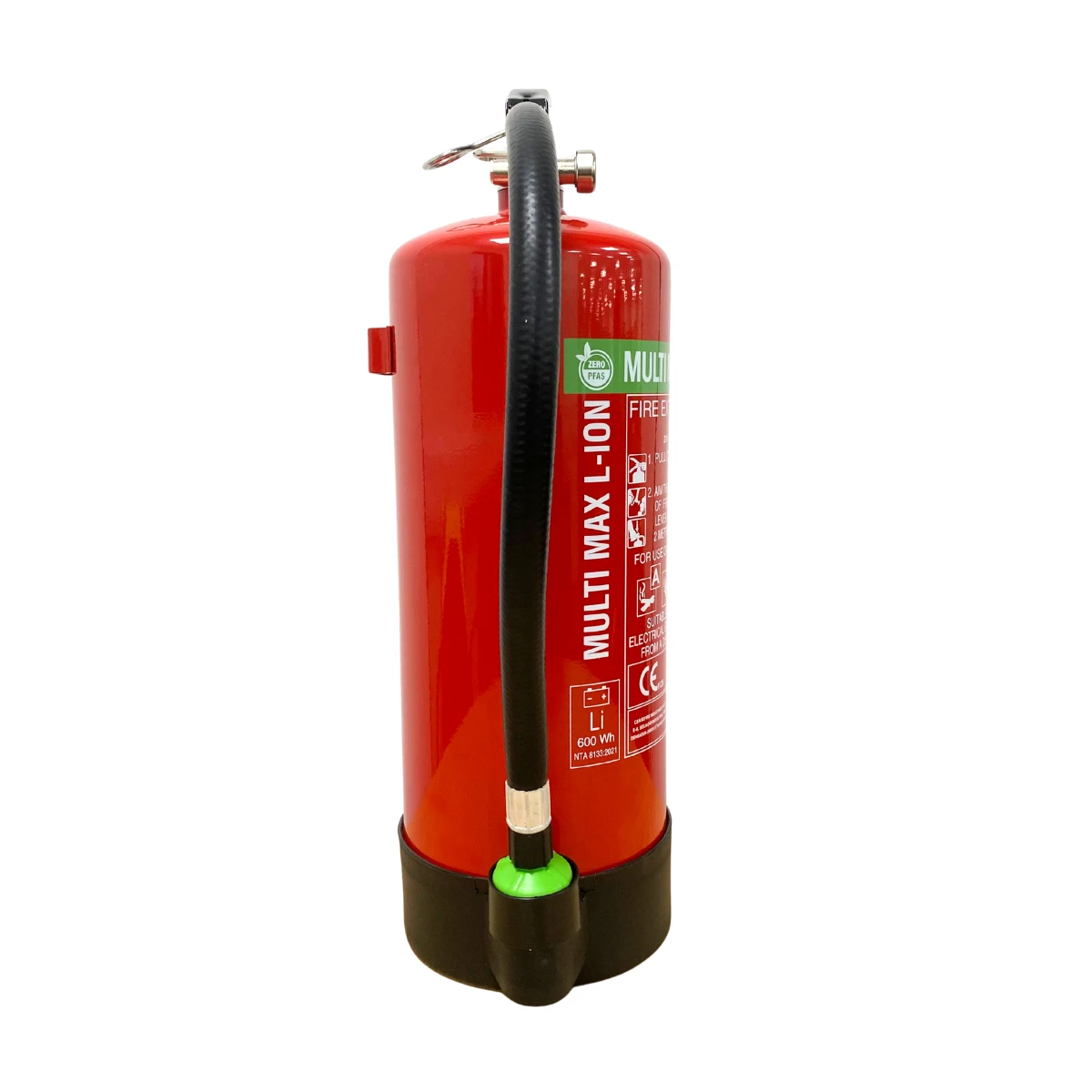

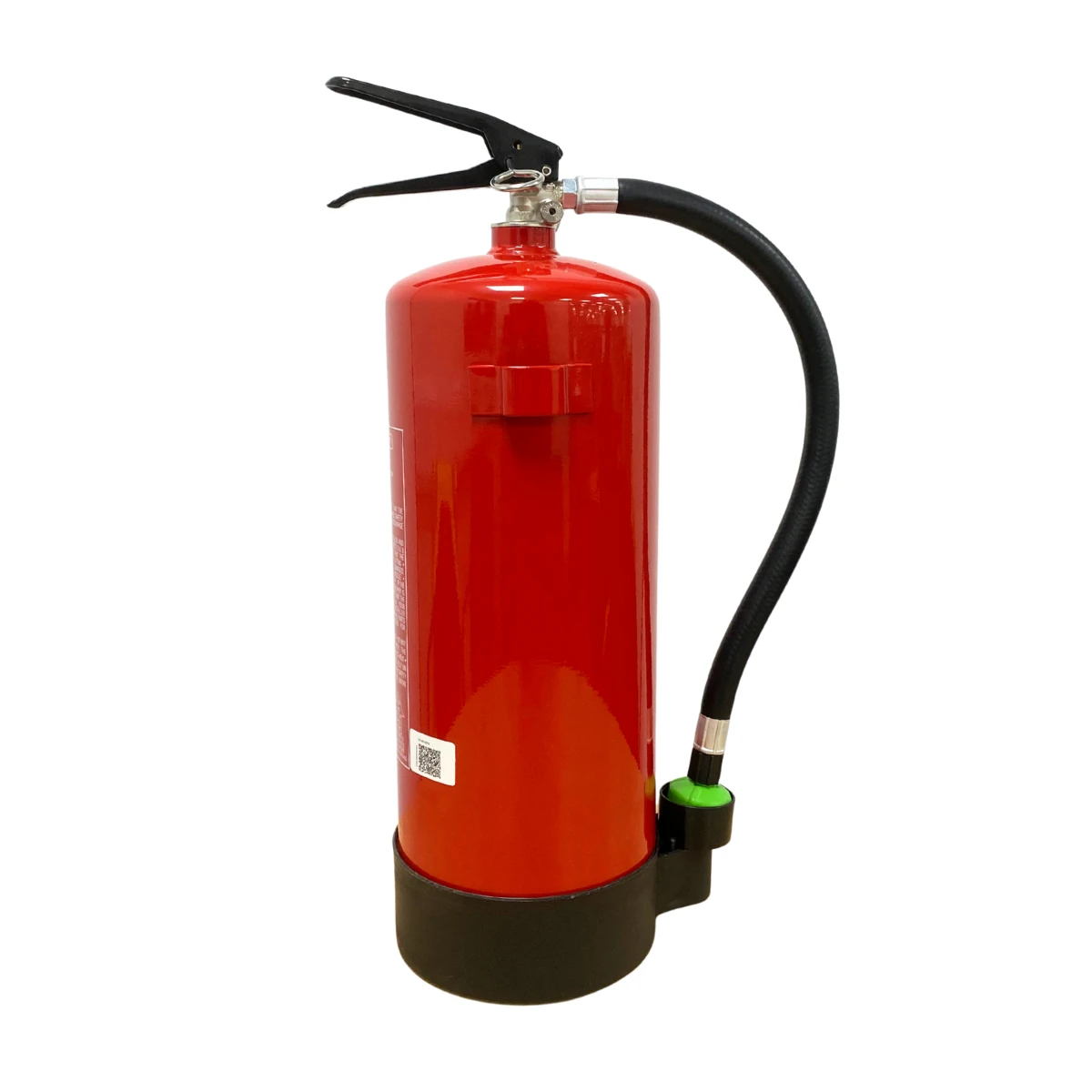

Discharge Hose / Nozzle	Nozzle (Spray Type)	Nozzle (Spray Type)	Nozzle (Spray Type)	Nozzle (Spray Type)	EPDM Rubber Braided Hose Pipe with Nozzle (480mm)	EPDM Rubber Braided Hose Pipe with Nozzle (480mm)
Valve Safety	Pressure Relief Valve	Pressure Relief Valve	Pressure Relief Valve	Pressure Relief Valve	Pressure Relief Valve	Pressure Relief Valve
Throw Range	2m	2m	5m	5m	6m	6m
Operating Temperature	+5°C to +60°C	+5°C to +60°C	+5°C to +60°C	+5°C to +60°C	+5°C to +60°C	+5°C to +60°C
Gross Weight (Approx.)	1.5kg	1.98kg	3.65kg	5kg	9.4kg	9.4kg
Model Code	CF-001551	CF-001552	CF-001535	CF-001536	CF-001537	CF-001537

Multimax Datasheet	Click here to download
Multimax Brochure	Click here to download
