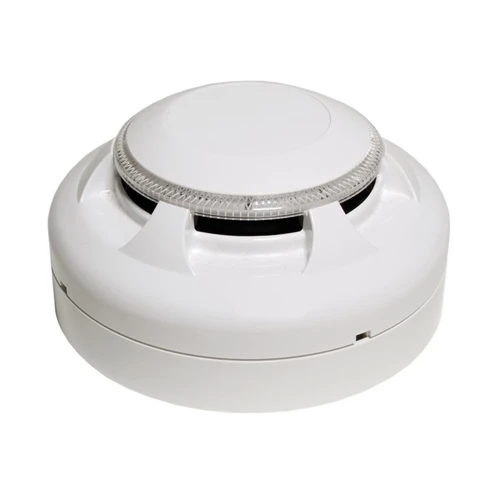

Nittan EVC-P Conventional Optical Detector

Continue shopping

Go to Basket

Nittan EVC-P Conventional Optical Detector

Name: Nittan EVC-P Conventional Optical Detector
Brand: Nittan
Price: 19.8 GBP
Availability: InStock

Code: TF407-274

We aim to deliver in 1-2 working days*

Have a question about this? Click here

*Delivery can depends on the items in your basket, we keep you informed about shipping once your order is placed.

Overview Features

Using a simple but effective technique, the EVC-P Conventional Optical Detector incorporates a chamber housing an Infra Red (IR) LED light and a photodiode light detector set at an obtuse angle preventing it from seeing the light. When smoke enters the chamber the light bounces off the smoke particles and strikes the photodiode, causing it to generate an alarm condition when a set threshold value is met. The EVC-P Optical Detector is therefore more sensitive to larger smoke particles which tend to be caused by smoldering fires rather than fast flaming fires.

Omniview 360 LED
Internal Alarm Current Limiting Resistor
Wide Operational Voltage Range (12v-32v)
Optical Detector
Operating Voltage16v-32v
Operating CurrentQuiescent: 50A
Ialarm: 50mA
StandardEN54-7:2000 + A1:2002
Alarm IndicationOmniview 360 LED
