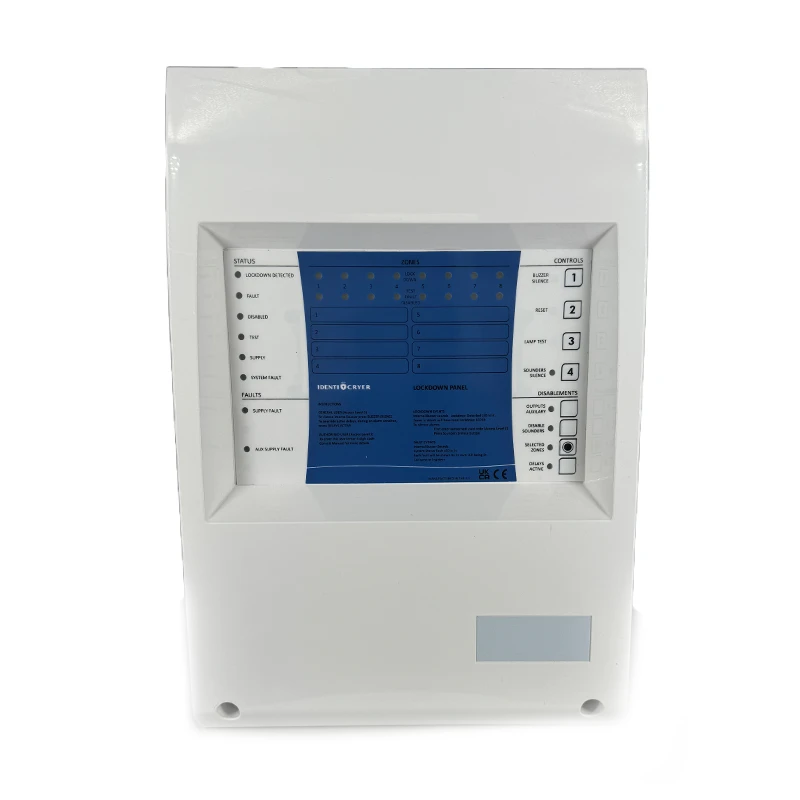

Vimpex Identi-Cryer Conventional Lockdown Control Panel
Code: TF100-727-001
The Identi-Cryer Lockdown Control Panel is a dedicated emergency alert system designed to manage and coordinate lockdown procedures across buildings of all sizes.
Suitable for incidents such as internal threats, perimeter breaches, or external risks in the surrounding area, the panel delivers clear, reliable alert control to help protect occupants and maintain site safety.
Available in 2, 4, or 8-zone configurations (IC3/2/230, IC3/4/230, IC3/8/230), the system allows for either targeted zone activation or full site-wide lockdown messaging, all through simple and intuitive operation.
Engineered for continuous protection, the panel provides 24/7 system fault monitoring and offers up to 72 hours of battery standby, ensuring uninterrupted operation during power failures.
Designed for straightforward installation and ease of use, it includes common fault and alarm relay outputs, enabling seamless integration with building management systems or fire alarm infrastructure.
Available in 2, 4, or 8-zone configurations
Continuous 24-hour system fault monitoring
Up to 72-hour battery standby for enhanced resilience
Common fault and alarm relay outputs for easy integration
Simple to install and maintain
Supports a full lockdown notification strategy
Specification | Details |
|---|---|
Mains Supply | 230 Vac (100 Watts Max) |
Mains Supply Fuse | 4 A - 250 V Slow Blow – 20 mm |
Output Voltage | 28.5 nominal Vdc |
Battery Size Max | 12 Vdc 7Ah (2 Batteries) |
Dedicated Sounder Circuits | 2 x 24 Vdc, fused at 500 mA |
Aux. Relay Output | 1 x Fire, 1 x Fault (NO, NC, C) |
Relay Contact Rating | 50 Vdc – 2 A resistive loads |
Detection Circuit EOL | Active EOL – Capacitor |
Sounder Circuit EOL | 10K Ohms, 0.25 W |
IP Rating | 30 |
Operating Temperature | -10°C to 50°C |
Construction | Fire Rated ABS |
Colour | White |
Dimensions (HxWxD) | 404 x 272 x 107 mm |
Weight | 1.7 Kg |
The Identi-Cryer Lockdown Control Panel is a dedicated emergency alert system designed to manage and coordinate lockdown procedures across buildings of all sizes.
Suitable for incidents such as internal threats, perimeter breaches, or external risks in the surrounding area, the panel delivers clear, reliable alert control to help protect occupants and maintain site safety.
Available in 2, 4, or 8-zone configurations (IC3/2/230, IC3/4/230, IC3/8/230), the system allows for either targeted zone activation or full site-wide lockdown messaging, all through simple and intuitive operation.
Engineered for continuous protection, the panel provides 24/7 system fault monitoring and offers up to 72 hours of battery standby, ensuring uninterrupted operation during power failures.
Designed for straightforward installation and ease of use, it includes common fault and alarm relay outputs, enabling seamless integration with building management systems or fire alarm infrastructure.
Available in 2, 4, or 8-zone configurations
Continuous 24-hour system fault monitoring
Up to 72-hour battery standby for enhanced resilience
Common fault and alarm relay outputs for easy integration
Simple to install and maintain
Supports a full lockdown notification strategy
Specification | Details |
|---|---|
Mains Supply | 230 Vac (100 Watts Max) |
Mains Supply Fuse | 4 A - 250 V Slow Blow – 20 mm |
Output Voltage | 28.5 nominal Vdc |
Battery Size Max | 12 Vdc 7Ah (2 Batteries) |
Dedicated Sounder Circuits | 2 x 24 Vdc, fused at 500 mA |
Aux. Relay Output | 1 x Fire, 1 x Fault (NO, NC, C) |
Relay Contact Rating | 50 Vdc – 2 A resistive loads |
Detection Circuit EOL | Active EOL – Capacitor |
Sounder Circuit EOL | 10K Ohms, 0.25 W |
IP Rating | 30 |
Operating Temperature | -10°C to 50°C |
Construction | Fire Rated ABS |
Colour | White |
Dimensions (HxWxD) | 404 x 272 x 107 mm |
Weight | 1.7 Kg |
