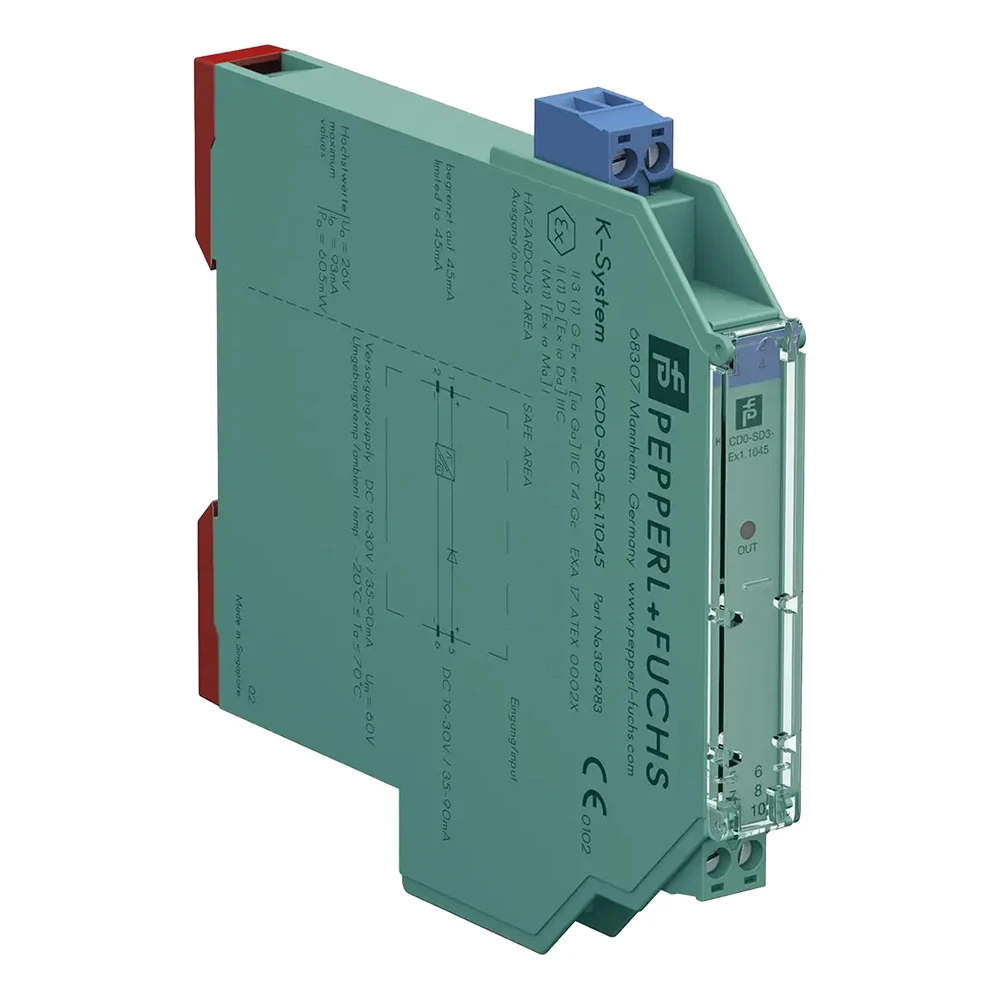

The Pepperl+Fuchs KCD0-SD3-Ex1.1045 is a single-channel solenoid driver with a galvanically isolated barrier, designed for intrinsically safe operation in hazardous areas.

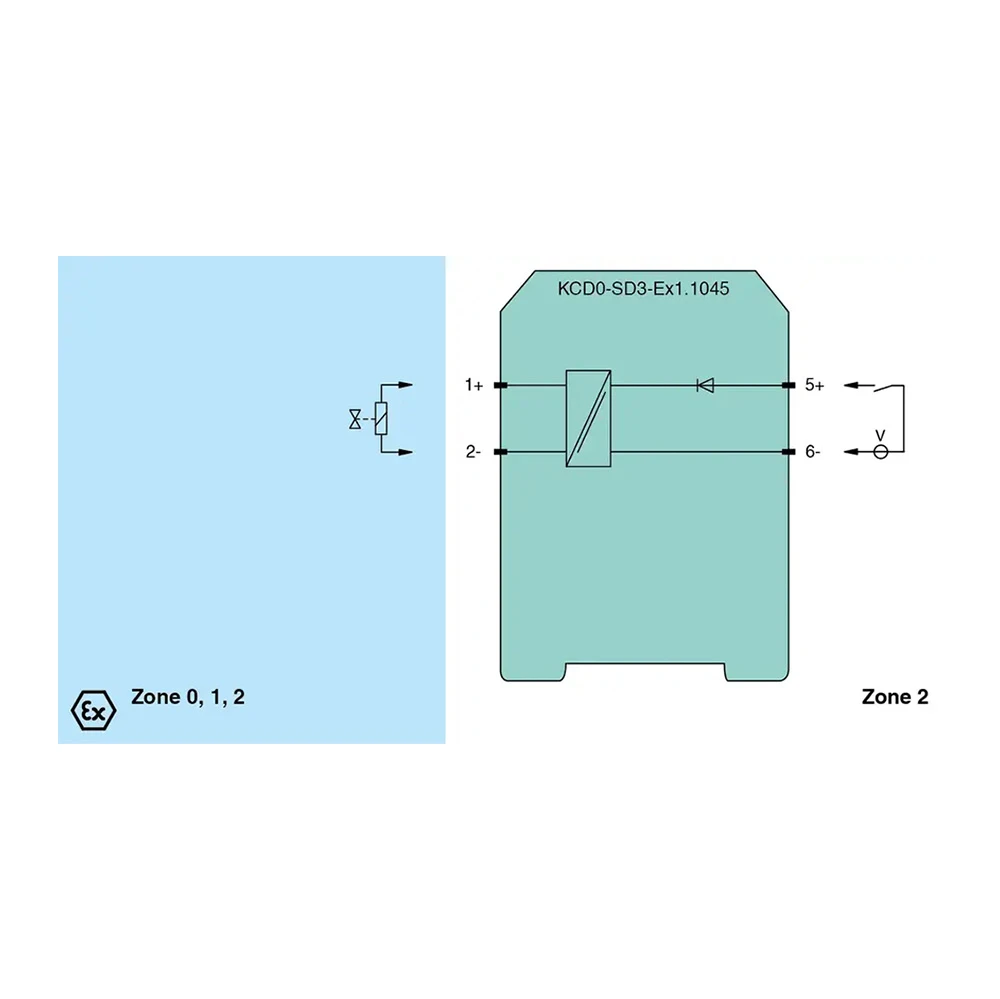

It powers solenoids, LEDs, and audible alarms in Zone 0, 1, and 2 environments while maintaining safe electrical isolation from the control side.

Loop-powered from the input signal, it eliminates the need for separate power supplies, making it ideal for compact control panels and DIN-rail installations. At full load, it delivers up to 10 V at 45 mA to the hazardous area.

With SIL 3 capability, test pulse immunity, and full ATEX and IECEx approvals, the KCD0-SD3-Ex1.1045 is suited to safety-critical industrial applications requiring reliable intrinsically safe output switching.

• Single-channel isolated solenoid driver for intrinsic safety applications

• Loop powered operation using a 24 V DC supply

• Suitable for driving solenoids, LEDs and audible alarms in hazardous areas

• Current limited to 45 mA at 10 V DC output

• Test pulse immune for reliable operation with modern DO cards

• Compact 12.5 mm housing for high-density DIN rail installations

• Functional safety up to SIL 3 in accordance with IEC/EN 61508

• ATEX, IECEx and international hazardous area approvals
