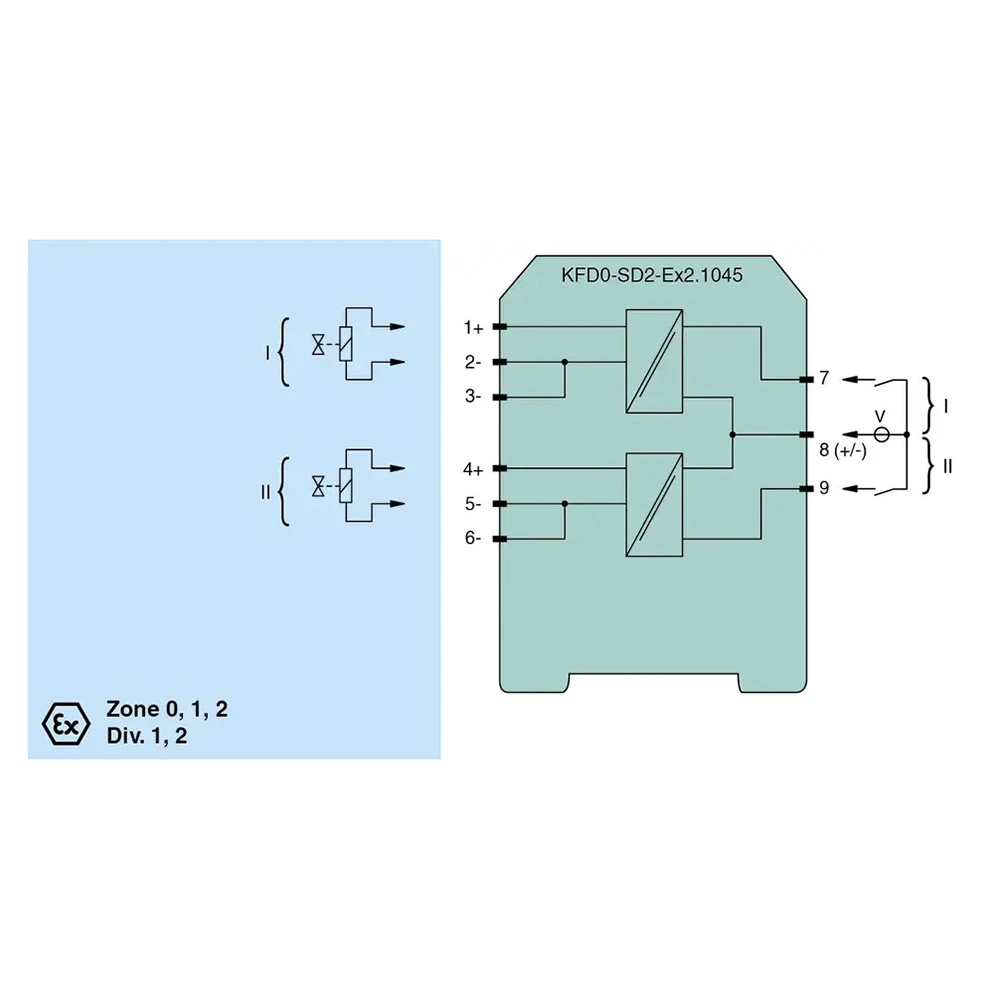

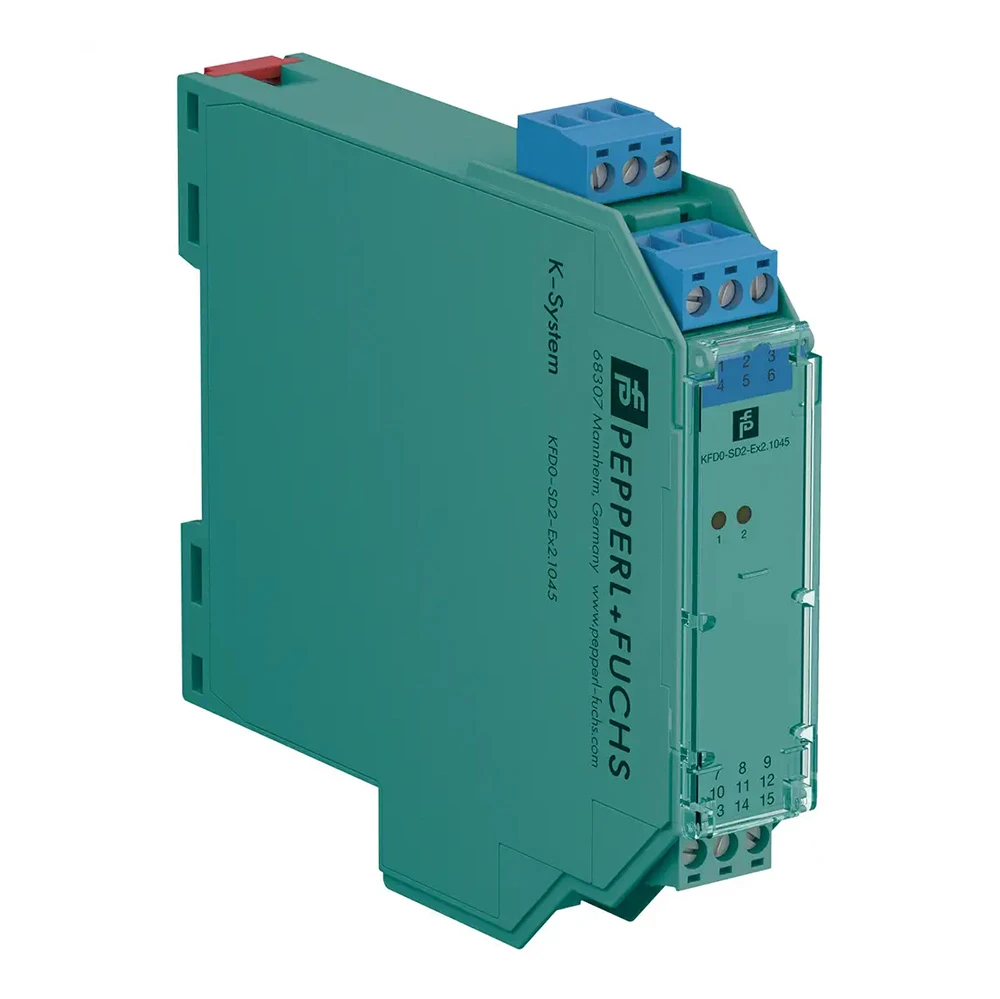

The Pepperl+Fuchs KFD0-SD2-Ex2.1045 is a dual-channel galvanic isolator and solenoid driver designed for intrinsically safe operation in hazardous areas.

It provides a secure interface between safe-area control systems and field devices such as solenoids, LEDs, and audible alarms in Zone 0, 1, or 2 environments.

Loop-powered from the input signal, it delivers a controlled resistive output up to 10 V at 45 mA, ensuring safe and reliable actuation of hazardous-area devices.

Certified to SIL 3 (IEC/EN 61508) and approved under ATEX, IECEx, FM, and UL standards, it is ideal for safety-critical applications including process control, fire protection, alarm signalling, and industrial automation.

Its slim DIN-rail design enables easy installation in compact control panels.

• Dual-channel isolated barrier / solenoid driver

• Loop-powered operation with 24 V DC supply

• Supplies solenoids, LEDs and audible alarms in hazardous areas

• Up to 45 mA output current at 10 V DC

• Suitable for Zone 0, Zone 1 and Zone 2 applications

• Safety Integrity Level SIL 3 (IEC/EN 61508)

• Galvanic isolation between control and field circuits

• DIN rail mounting (35 mm)

• Compact housing with LED status indication per channel

• Global hazardous-area approvals including ATEX, IECEx, FM and UL
