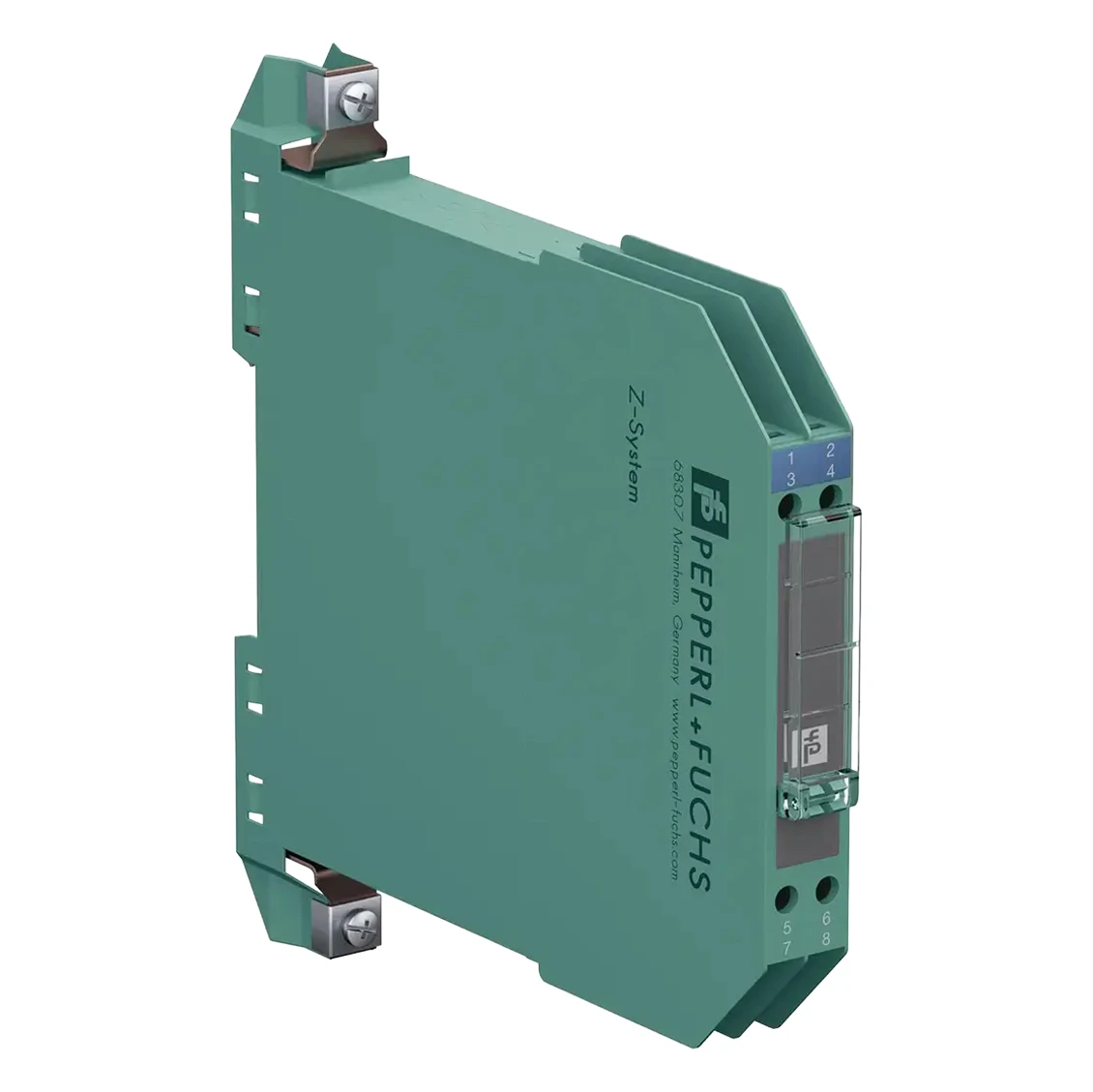

Pepperl-Fuchs Z978 Zener Barrier - Dual Channel - AC
Code: TF201-015
The Pepperl+Fuchs Z978 Zener Barrier is a 2-channel AC barrier that prevents excessive energy transfer from safe areas to hazardous areas, providing intrinsic safety for AC and DC circuits.

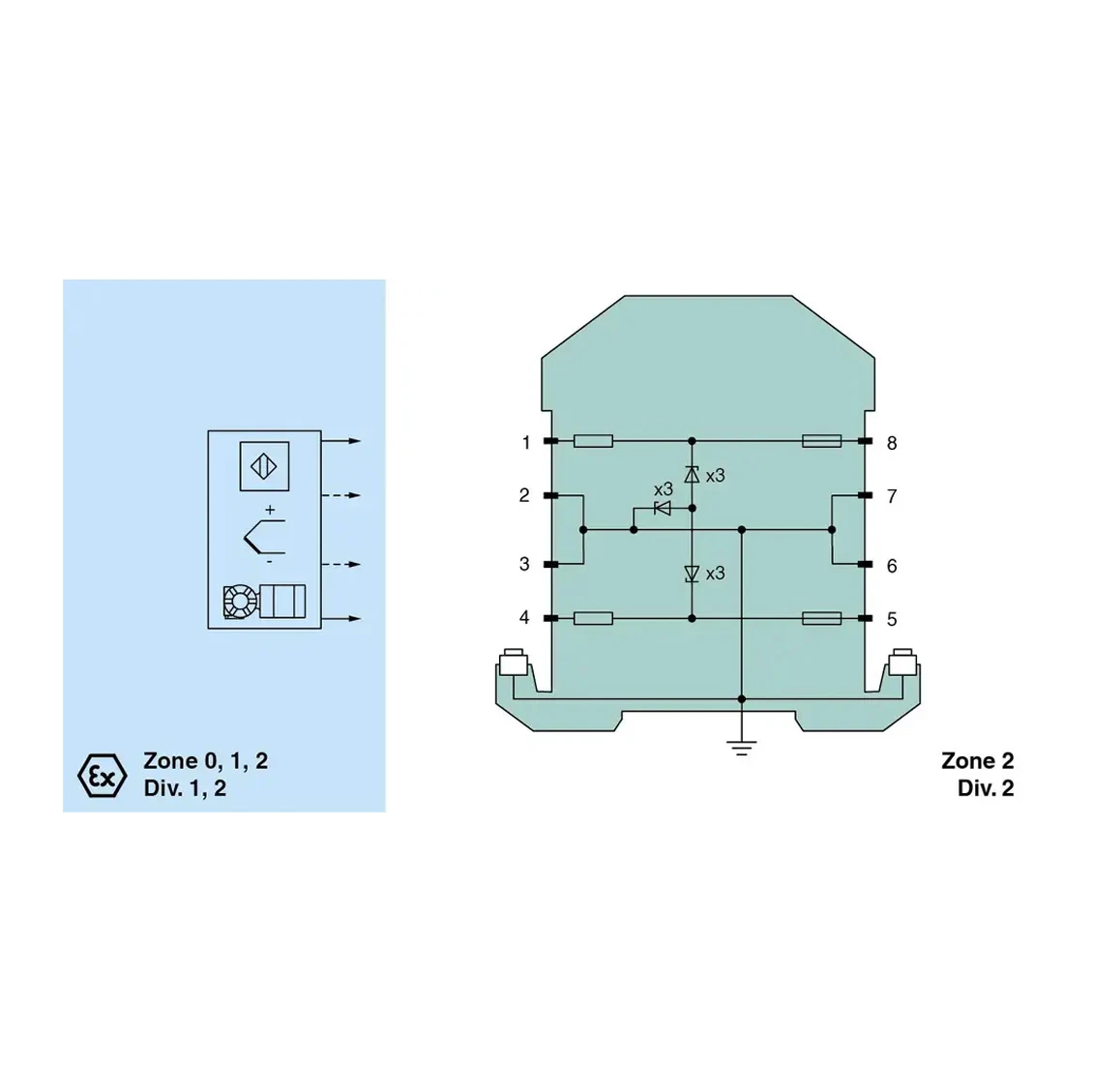

It employs reverse-connected zener diodes with alternating polarity; if voltage exceeds safe limits, the diodes conduct and the internal fuse isolates the hazardous area. This makes it suitable for field devices in Zone 0, 1, or 2 locations when properly grounded.
Compact and DIN-rail mountable, the Z978 is ideal for industrial process control, instrumentation, and fire and gas applications requiring certified intrinsic safety protection.
2-channel AC zener barrier
Suitable for AC and DC signal circuits
Working voltage up to 26 V at 10 µA
Internal fuse protection rated at 50 mA
Alternating polarity zener diode design
DIN rail mountable modular housing
Star connection with grounded reference
Suitable for Zone 0, 1 and 2 hazardous areas
Approved for ATEX, IECEx, FM and UL applications
Specification | Details |
|---|---|
Product Type | Zener Barrier (AC version) |
Channels | 2 |
Working Voltage | Max. 26 V at 10 µA |
Supply Loop Voltage | Max. 26.3 V |
Nominal Resistance | 600 Ω |
Series Resistance (Max) | 646 Ω |
Fuse Rating | 50 mA |
Radiated Power | 320 mW |
Hazardous Area Terminals | 1, 2, 3, 4 |
Safe Area Terminals | 5, 6, 7, 8 |
Ambient Temperature | −20 °C to +60 °C |
Storage Temperature | −25 °C to +70 °C |
Relative Humidity | Max. 75% (non-condensing) |
IP Rating | IP20 |
Mounting | 35 mm DIN rail (EN 60715) |
Dimensions (W × H × D) | 12.5 × 115 × 116 mm |
Weight | Approx. 150 g |
Certifications | ATEX, IECEx, FM, UL |
ATEX Marking | [Ex ia Ga] IIC / [Ex ia Da] IIIC |
The Pepperl+Fuchs Z978 Zener Barrier is a 2-channel AC barrier that prevents excessive energy transfer from safe areas to hazardous areas, providing intrinsic safety for AC and DC circuits.
It employs reverse-connected zener diodes with alternating polarity; if voltage exceeds safe limits, the diodes conduct and the internal fuse isolates the hazardous area. This makes it suitable for field devices in Zone 0, 1, or 2 locations when properly grounded.
Compact and DIN-rail mountable, the Z978 is ideal for industrial process control, instrumentation, and fire and gas applications requiring certified intrinsic safety protection.
2-channel AC zener barrier
Suitable for AC and DC signal circuits
Working voltage up to 26 V at 10 µA
Internal fuse protection rated at 50 mA
Alternating polarity zener diode design
DIN rail mountable modular housing
Star connection with grounded reference
Suitable for Zone 0, 1 and 2 hazardous areas
Approved for ATEX, IECEx, FM and UL applications
Specification | Details |
|---|---|
Product Type | Zener Barrier (AC version) |
Channels | 2 |
Working Voltage | Max. 26 V at 10 µA |
Supply Loop Voltage | Max. 26.3 V |
Nominal Resistance | 600 Ω |
Series Resistance (Max) | 646 Ω |
Fuse Rating | 50 mA |
Radiated Power | 320 mW |
Hazardous Area Terminals | 1, 2, 3, 4 |
Safe Area Terminals | 5, 6, 7, 8 |
Ambient Temperature | −20 °C to +60 °C |
Storage Temperature | −25 °C to +70 °C |
Relative Humidity | Max. 75% (non-condensing) |
IP Rating | IP20 |
Mounting | 35 mm DIN rail (EN 60715) |
Dimensions (W × H × D) | 12.5 × 115 × 116 mm |
Weight | Approx. 150 g |
Certifications | ATEX, IECEx, FM, UL |
ATEX Marking | [Ex ia Ga] IIC / [Ex ia Da] IIIC |
