Vimpex Identi-Cryer Lockdown System Starter Pack - Larger Premises
Code: TF129-001
The Vimpex Identi-Cryer Lockdown System Starter Pack is a complete, ready-to-install solution designed for larger premises such as schools, social clubs, places of worship, and community centres.
This starter pack provides a simple yet highly effective method of initiating a building-wide lockdown alert, ensuring fast and clear communication during critical incidents.

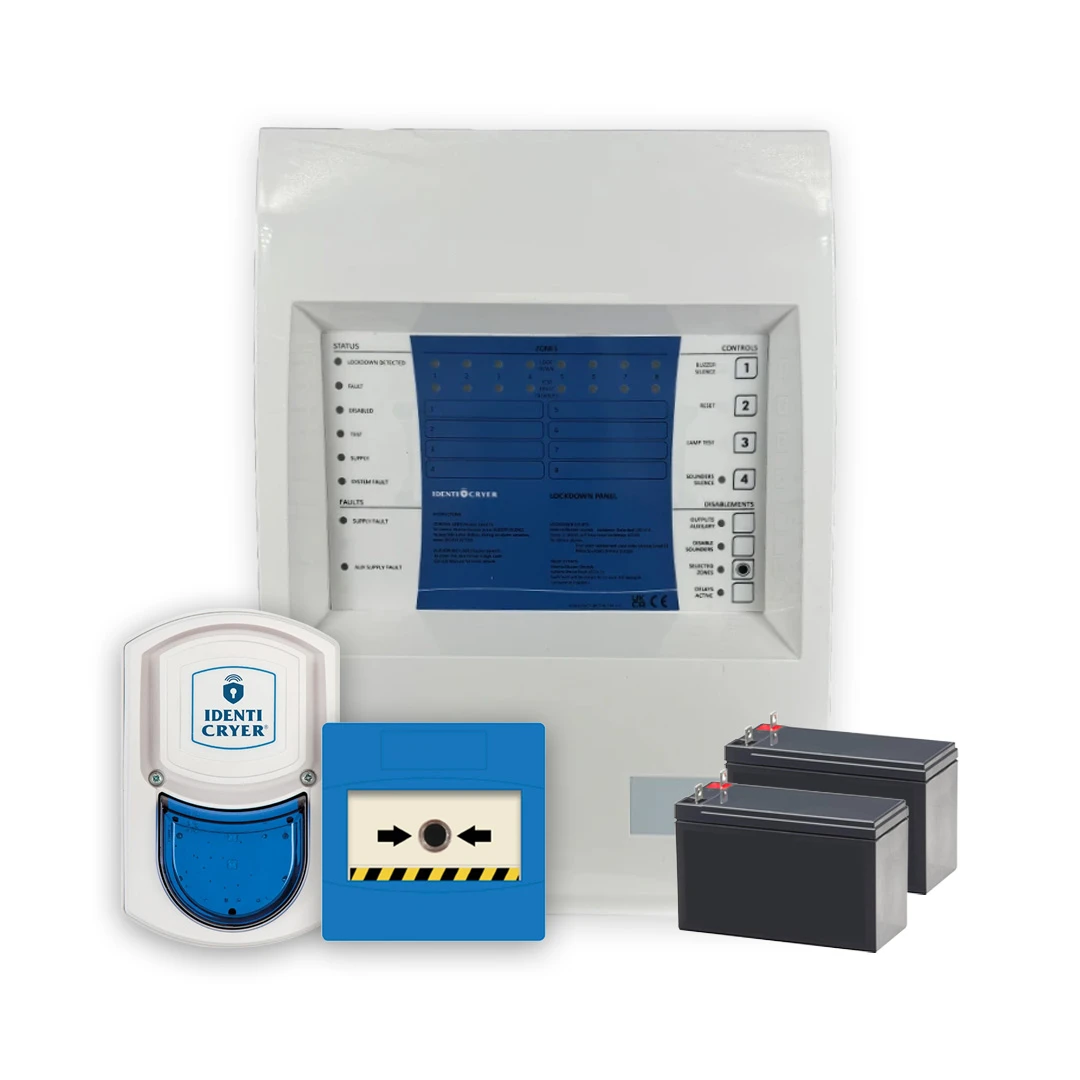

The pack includes:

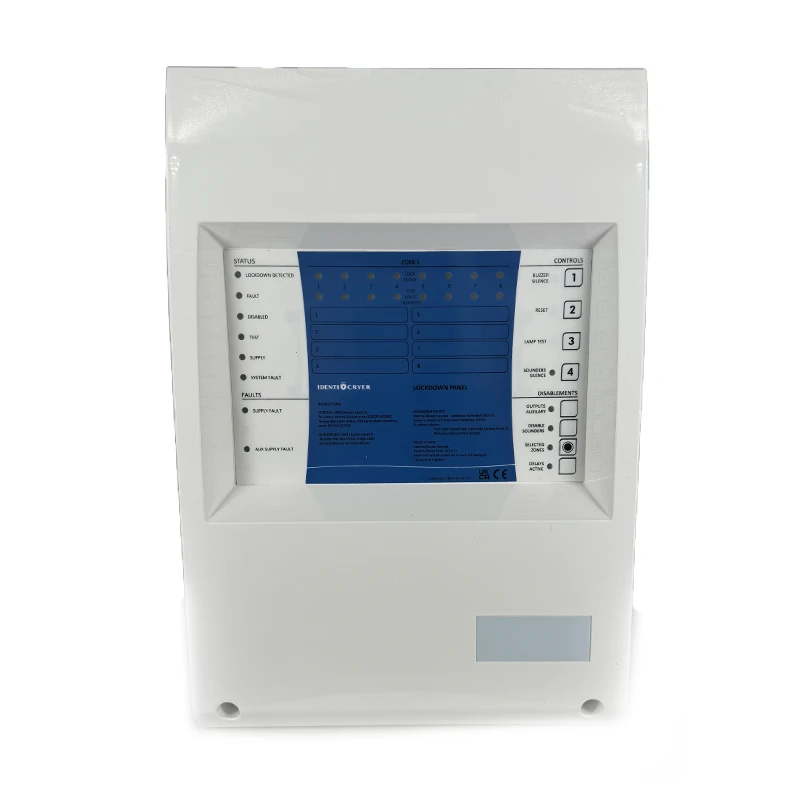

1 × 8-Zone Vimpex Identi-Cryer Lockdown Control Panel – Compact and straightforward to install, offering zone-based activation and continuous 24/7 fault monitoring.

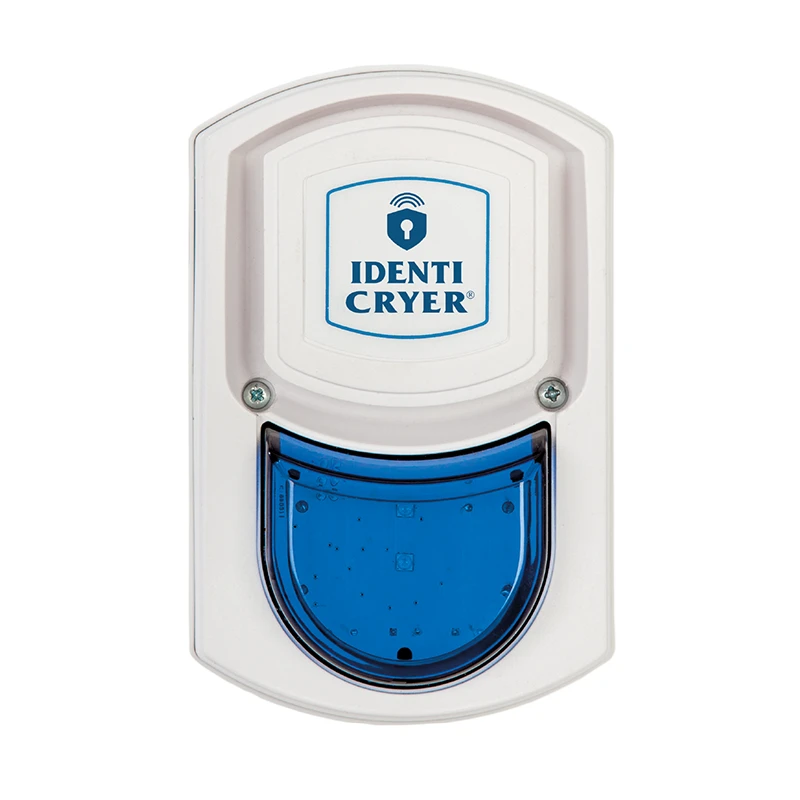

1 × Deep Base Sounder with Blue Beacon – Delivers clear audible and visual alerts, ideal for busy or noisy environments where sound alone may not be sufficient.
1 × Blue Lockdown Call Point – Clearly marked and easily identifiable for rapid initiation of lockdown procedures.
1 × FireSmart 7Ah Trade Batteries Twin Pack – Provide reliable, long-lasting backup power during mains failure.
Designed in line with best practice guidance and with Martyn’s Law in mind, this starter pack helps larger venues take proactive steps to strengthen their emergency preparedness.
Whether responding to security threats or general site safety concerns, the Identi-Cryer system ensures occupants are alerted quickly and clearly to lockdown situations.
Ideal for use in:
Primary and secondary schools
Nurseries
Sports and social clubs
Faith-based and community venues
8 zone control panel ideal for medium-sized sites
24-hour fault monitoring
Blue call point for clear lockdown activation
Deep base sounder with integrated blue beacon
Backup battery functionality for power resilience
Suitable for primary schools, nurseries & social clubs
Supports Martyn’s Law compliance
Specification | Call Point | Control Panel | Sounder Beacon |
|---|---|---|---|
Insulation Resistance | >100 Mohm @ 500 V dc | ||
Maximum Current | 3 A @ 250 V ac / 5 A @ 125 V ac | ||
Cable Termination | 0.5 - 2.5 mm² | Screw TB 2.5 mm² | |
Operating Temperature | -30 to +70°C | -10°C to 50°C | -25°C to +70°C |
Humidity | 0–95% | ||
IP Rating | IP42 | IP30 | IP45 or IP66 (Deep Base required for IP66) |
Material / Construction | ABS / Polycarbonate / PA6 + Glass Fibre | Fire Rated ABS | ABS |
Mains Supply | 230 Vac (100 Watts Max) | ||
Mains Supply Fuse | 4 A - 250 V Slow Blow – 20 mm | ||
Output Voltage | 28.5 nominal Vdc | ||
Battery Size Max | 12 Vdc 7Ah (2 Batteries) | ||
Dedicated Sounder Circuits | 2 x 24 Vdc, fused at 500 mA | ||
Aux. Relay Output | 1 x Fire, 1 x Fault (NO, NC, C) | ||
Relay Contact Rating | 50 Vdc – 2 A resistive loads | ||
Detection Circuit EOL | Active EOL – Capacitor | ||
Sounder Circuit EOL | 10K Ohms, 0.25 W | ||
Colour | White | White | |
Dimensions (HxWxD) | 404 x 272 x 107 mm | ||
Weight | 1.7 Kg | ||
Operating Voltage | 20–28 V dc | ||
Current @ 24 V dc, Peak/Avg – Sounder | 27/20 mA | ||
Current @ 24 V – Sounder + Low Strobe | 33/26 mA | ||
Current @ 24 V – Sounder + High Strobe | 52/60 mA | ||
Current – Low Current Strobe Only | 13 mA | ||
Current – High Current Strobe Only | 32 mA | ||
Strobe Output (Low) | 2 Cd | ||
Strobe Output (High) | 6 Cd | ||
Sound Output – Fast Sweep Tone | 100 dB (A)* | ||
Sound Output – Voice | 95 dB (A)** | ||
Volume Adjustment Range | 82 to 100 dB(A) (±18 dB(A) |
The Vimpex Identi-Cryer Lockdown System Starter Pack is a complete, ready-to-install solution designed for larger premises such as schools, social clubs, places of worship, and community centres.
This starter pack provides a simple yet highly effective method of initiating a building-wide lockdown alert, ensuring fast and clear communication during critical incidents.
The pack includes:
1 × 8-Zone Vimpex Identi-Cryer Lockdown Control Panel – Compact and straightforward to install, offering zone-based activation and continuous 24/7 fault monitoring.
1 × Deep Base Sounder with Blue Beacon – Delivers clear audible and visual alerts, ideal for busy or noisy environments where sound alone may not be sufficient.
1 × Blue Lockdown Call Point – Clearly marked and easily identifiable for rapid initiation of lockdown procedures.
1 × FireSmart 7Ah Trade Batteries Twin Pack – Provide reliable, long-lasting backup power during mains failure.
Designed in line with best practice guidance and with Martyn’s Law in mind, this starter pack helps larger venues take proactive steps to strengthen their emergency preparedness.
Whether responding to security threats or general site safety concerns, the Identi-Cryer system ensures occupants are alerted quickly and clearly to lockdown situations.
Ideal for use in:
Primary and secondary schools
Nurseries
Sports and social clubs
Faith-based and community venues
8 zone control panel ideal for medium-sized sites
24-hour fault monitoring
Blue call point for clear lockdown activation
Deep base sounder with integrated blue beacon
Backup battery functionality for power resilience
Suitable for primary schools, nurseries & social clubs
Supports Martyn’s Law compliance
Specification | Call Point | Control Panel | Sounder Beacon |
|---|---|---|---|
Insulation Resistance | >100 Mohm @ 500 V dc | ||
Maximum Current | 3 A @ 250 V ac / 5 A @ 125 V ac | ||
Cable Termination | 0.5 - 2.5 mm² | Screw TB 2.5 mm² | |
Operating Temperature | -30 to +70°C | -10°C to 50°C | -25°C to +70°C |
Humidity | 0–95% | ||
IP Rating | IP42 | IP30 | IP45 or IP66 (Deep Base required for IP66) |
Material / Construction | ABS / Polycarbonate / PA6 + Glass Fibre | Fire Rated ABS | ABS |
Mains Supply | 230 Vac (100 Watts Max) | ||
Mains Supply Fuse | 4 A - 250 V Slow Blow – 20 mm | ||
Output Voltage | 28.5 nominal Vdc | ||
Battery Size Max | 12 Vdc 7Ah (2 Batteries) | ||
Dedicated Sounder Circuits | 2 x 24 Vdc, fused at 500 mA | ||
Aux. Relay Output | 1 x Fire, 1 x Fault (NO, NC, C) | ||
Relay Contact Rating | 50 Vdc – 2 A resistive loads | ||
Detection Circuit EOL | Active EOL – Capacitor | ||
Sounder Circuit EOL | 10K Ohms, 0.25 W | ||
Colour | White | White | |
Dimensions (HxWxD) | 404 x 272 x 107 mm | ||
Weight | 1.7 Kg | ||
Operating Voltage | 20–28 V dc | ||
Current @ 24 V dc, Peak/Avg – Sounder | 27/20 mA | ||
Current @ 24 V – Sounder + Low Strobe | 33/26 mA | ||
Current @ 24 V – Sounder + High Strobe | 52/60 mA | ||
Current – Low Current Strobe Only | 13 mA | ||
Current – High Current Strobe Only | 32 mA | ||
Strobe Output (Low) | 2 Cd | ||
Strobe Output (High) | 6 Cd | ||
Sound Output – Fast Sweep Tone | 100 dB (A)* | ||
Sound Output – Voice | 95 dB (A)** | ||
Volume Adjustment Range | 82 to 100 dB(A) (±18 dB(A) |
