Vimpex Identi-Cryer Lockdown System Starter Pack - Medium Premises
Code: TF127-881
The Vimpex Identi-Cryer Lockdown System Starter Pack is a complete, ready-to-install solution tailored for medium-sized premises, including schools, social clubs, places of worship, and community centres.
Designed to provide a straightforward yet highly effective lockdown alert system, this pack enables rapid, building-wide communication during critical incidents, helping to keep occupants informed and safe.

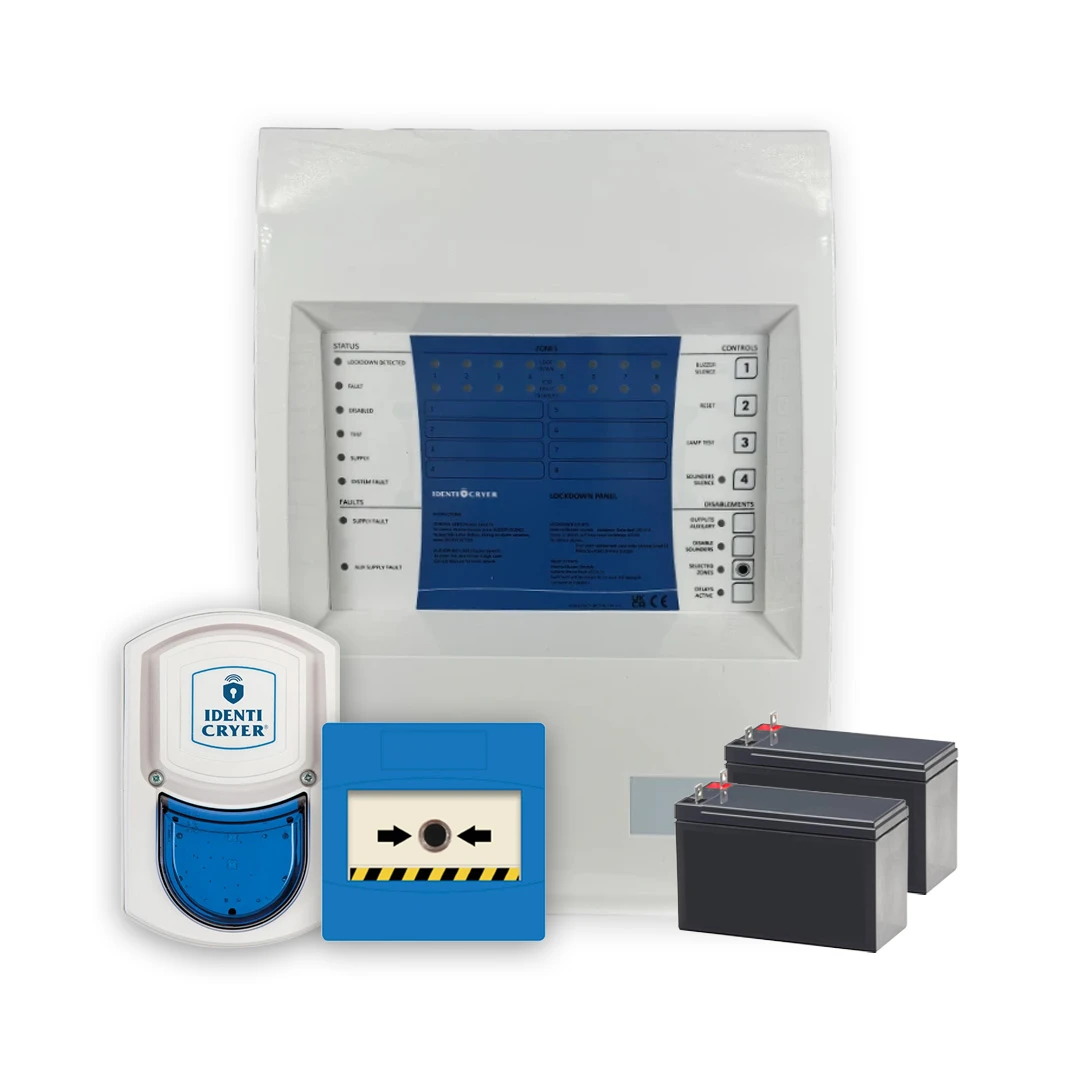

The starter pack includes:

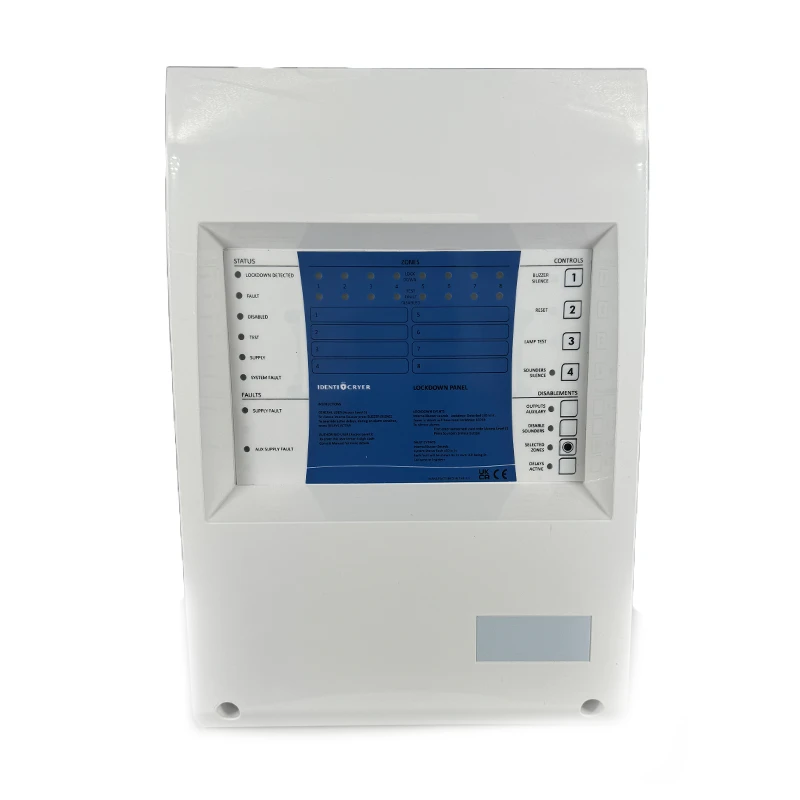

1 x 4-Zone Vimpex Identi-Cryer Lockdown Panel – A compact, easy-to-install panel that supports zone-based activation and provides continuous 24/7 fault monitoring.

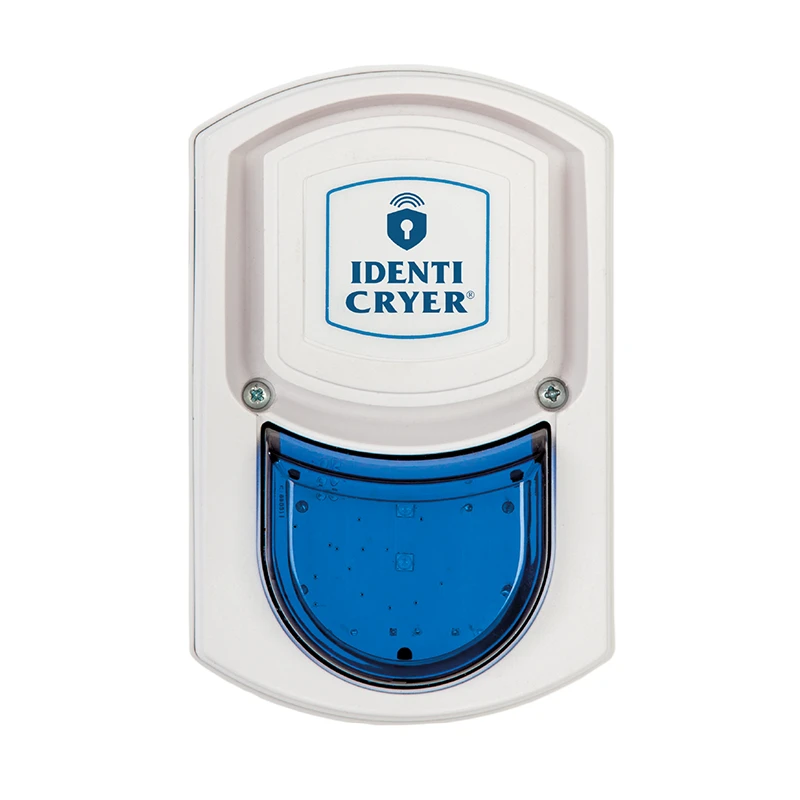

1 x Deep Base Sounder with Blue Beacon – Delivers a strong audible alert combined with a clear visual indicator, making it ideal for busy or high-noise environments.
1 x Blue Lockdown Call Point – Clearly labelled and easily recognisable for quick and confident activation of lockdown procedures.
1 x FireSmart 7Ah Trade Batteries Twin Pack– Provide reliable, long-lasting backup power in the event of a mains power failure.
Fully aligned with best-practice guidance and developed with Martyn’s Law considerations in mind, this starter pack supports medium-sized venues in strengthening their emergency preparedness.
Whether responding to security threats or broader site safety concerns, the Identi-Cryer system ensures occupants receive clear, immediate notification of lockdown situations.
Ideal for use in:
Primary and secondary schools
Nurseries
Sports and social clubs
Faith-based and community venues
4 zone control panel ideal for medium-sized sites
24-hour fault monitoring
Blue call point for clear lockdown activation
Deep base sounder with integrated blue beacon
Backup battery functionality for power resilience
Suitable for primary schools, nurseries & social clubs
Supports Martyn’s Law compliance
Specification | Call Point | Control Panel | Sounder Beacon |
|---|---|---|---|
Insulation Resistance | >100 Mohm @ 500 V dc | ||
Maximum Current | 3 A @ 250 V ac / 5 A @ 125 V ac | ||
Cable Termination | 0.5 - 2.5 mm² | Screw TB 2.5 mm² | |
Operating Temperature | -30 to +70°C | -10°C to 50°C | -25°C to +70°C |
Humidity | 0–95% | ||
IP Rating | IP42 | IP30 | IP45 or IP66 (Deep Base required for IP66) |
Material / Construction | ABS / Polycarbonate / PA6 + Glass Fibre | Fire Rated ABS | ABS |
Mains Supply | 230 Vac (100 Watts Max) | ||
Mains Supply Fuse | 4 A - 250 V Slow Blow – 20 mm | ||
Output Voltage | 28.5 nominal Vdc | ||
Battery Size Max | 12 Vdc 7Ah (2 Batteries) | ||
Dedicated Sounder Circuits | 2 x 24 Vdc, fused at 500 mA | ||
Aux. Relay Output | 1 x Fire, 1 x Fault (NO, NC, C) | ||
Relay Contact Rating | 50 Vdc – 2 A resistive loads | ||
Detection Circuit EOL | Active EOL – Capacitor | ||
Sounder Circuit EOL | 10K Ohms, 0.25 W | ||
Colour | White | White | |
Dimensions (HxWxD) | 404 x 272 x 107 mm | ||
Weight | 1.7 Kg | ||
Operating Voltage | 20–28 V dc | ||
Current @ 24 V dc, Peak/Avg – Sounder | 27/20 mA | ||
Current @ 24 V – Sounder + Low Strobe | 33/26 mA | ||
Current @ 24 V – Sounder + High Strobe | 52/60 mA | ||
Current – Low Current Strobe Only | 13 mA | ||
Current – High Current Strobe Only | 32 mA | ||
Strobe Output (Low) | 2 Cd | ||
Strobe Output (High) | 6 Cd | ||
Sound Output – Fast Sweep Tone | 100 dB (A)* | ||
Sound Output – Voice | 95 dB (A)** | ||
Volume Adjustment Range | 82 to 100 dB(A) (±18 dB(A)) |
The Vimpex Identi-Cryer Lockdown System Starter Pack is a complete, ready-to-install solution tailored for medium-sized premises, including schools, social clubs, places of worship, and community centres.
Designed to provide a straightforward yet highly effective lockdown alert system, this pack enables rapid, building-wide communication during critical incidents, helping to keep occupants informed and safe.
The starter pack includes:
1 x 4-Zone Vimpex Identi-Cryer Lockdown Panel – A compact, easy-to-install panel that supports zone-based activation and provides continuous 24/7 fault monitoring.
1 x Deep Base Sounder with Blue Beacon – Delivers a strong audible alert combined with a clear visual indicator, making it ideal for busy or high-noise environments.
1 x Blue Lockdown Call Point – Clearly labelled and easily recognisable for quick and confident activation of lockdown procedures.
1 x FireSmart 7Ah Trade Batteries Twin Pack– Provide reliable, long-lasting backup power in the event of a mains power failure.
Fully aligned with best-practice guidance and developed with Martyn’s Law considerations in mind, this starter pack supports medium-sized venues in strengthening their emergency preparedness.
Whether responding to security threats or broader site safety concerns, the Identi-Cryer system ensures occupants receive clear, immediate notification of lockdown situations.
Ideal for use in:
Primary and secondary schools
Nurseries
Sports and social clubs
Faith-based and community venues
4 zone control panel ideal for medium-sized sites
24-hour fault monitoring
Blue call point for clear lockdown activation
Deep base sounder with integrated blue beacon
Backup battery functionality for power resilience
Suitable for primary schools, nurseries & social clubs
Supports Martyn’s Law compliance
Specification | Call Point | Control Panel | Sounder Beacon |
|---|---|---|---|
Insulation Resistance | >100 Mohm @ 500 V dc | ||
Maximum Current | 3 A @ 250 V ac / 5 A @ 125 V ac | ||
Cable Termination | 0.5 - 2.5 mm² | Screw TB 2.5 mm² | |
Operating Temperature | -30 to +70°C | -10°C to 50°C | -25°C to +70°C |
Humidity | 0–95% | ||
IP Rating | IP42 | IP30 | IP45 or IP66 (Deep Base required for IP66) |
Material / Construction | ABS / Polycarbonate / PA6 + Glass Fibre | Fire Rated ABS | ABS |
Mains Supply | 230 Vac (100 Watts Max) | ||
Mains Supply Fuse | 4 A - 250 V Slow Blow – 20 mm | ||
Output Voltage | 28.5 nominal Vdc | ||
Battery Size Max | 12 Vdc 7Ah (2 Batteries) | ||
Dedicated Sounder Circuits | 2 x 24 Vdc, fused at 500 mA | ||
Aux. Relay Output | 1 x Fire, 1 x Fault (NO, NC, C) | ||
Relay Contact Rating | 50 Vdc – 2 A resistive loads | ||
Detection Circuit EOL | Active EOL – Capacitor | ||
Sounder Circuit EOL | 10K Ohms, 0.25 W | ||
Colour | White | White | |
Dimensions (HxWxD) | 404 x 272 x 107 mm | ||
Weight | 1.7 Kg | ||
Operating Voltage | 20–28 V dc | ||
Current @ 24 V dc, Peak/Avg – Sounder | 27/20 mA | ||
Current @ 24 V – Sounder + Low Strobe | 33/26 mA | ||
Current @ 24 V – Sounder + High Strobe | 52/60 mA | ||
Current – Low Current Strobe Only | 13 mA | ||
Current – High Current Strobe Only | 32 mA | ||
Strobe Output (Low) | 2 Cd | ||
Strobe Output (High) | 6 Cd | ||
Sound Output – Fast Sweep Tone | 100 dB (A)* | ||
Sound Output – Voice | 95 dB (A)** | ||
Volume Adjustment Range | 82 to 100 dB(A) (±18 dB(A)) |
