Vimpex Identi-Cryer Lockdown System Starter Pack - Small Premises
Code: TF180-728
The Vimpex Identi-Cryer Lockdown System Starter Pack is a ready-to-install solution designed for small premises such as schools, social clubs, places of worship & community centres.
This pack enables a simple yet effective way to initiate a lockdown alert across your building, ensuring rapid communication during critical incidents.

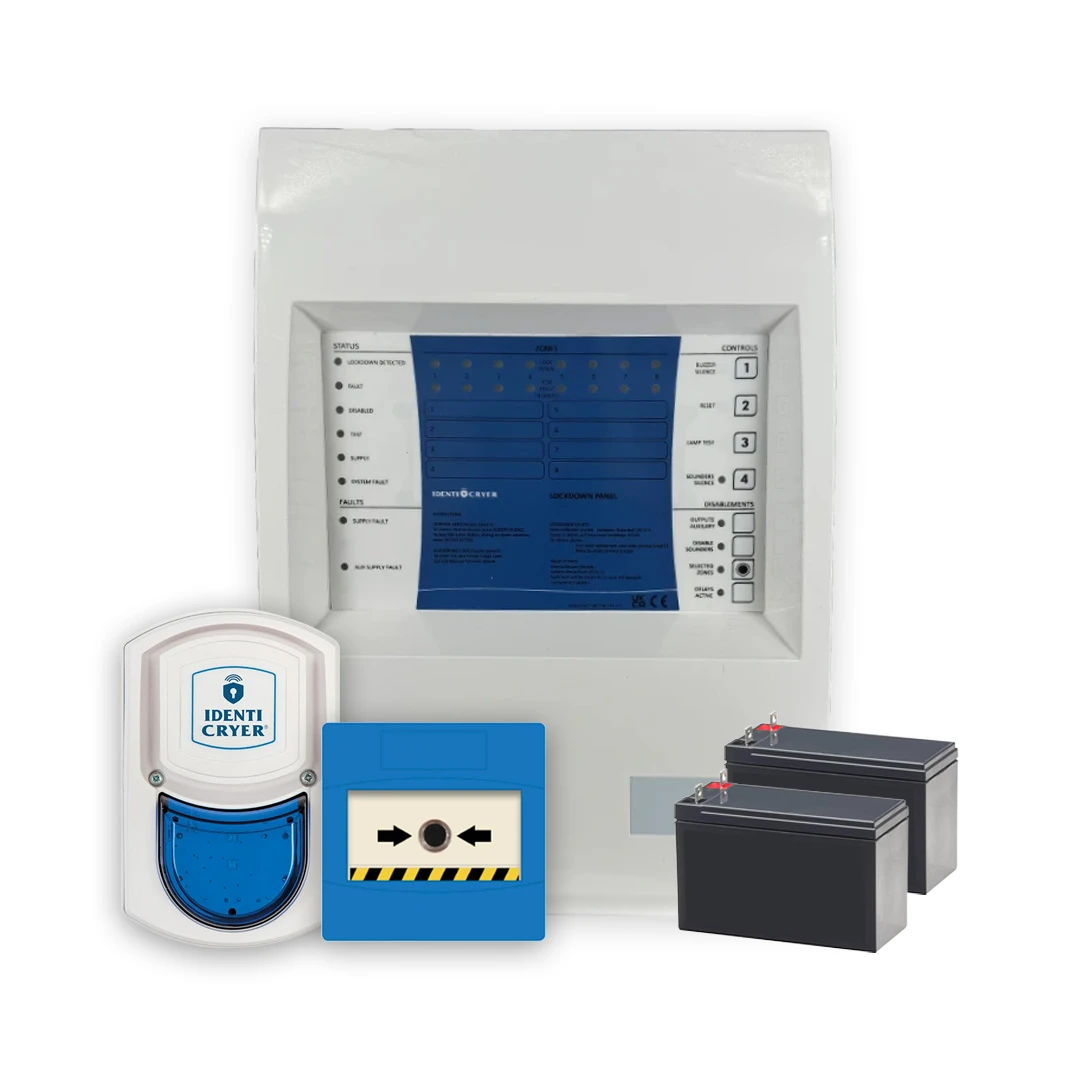

The pack includes:

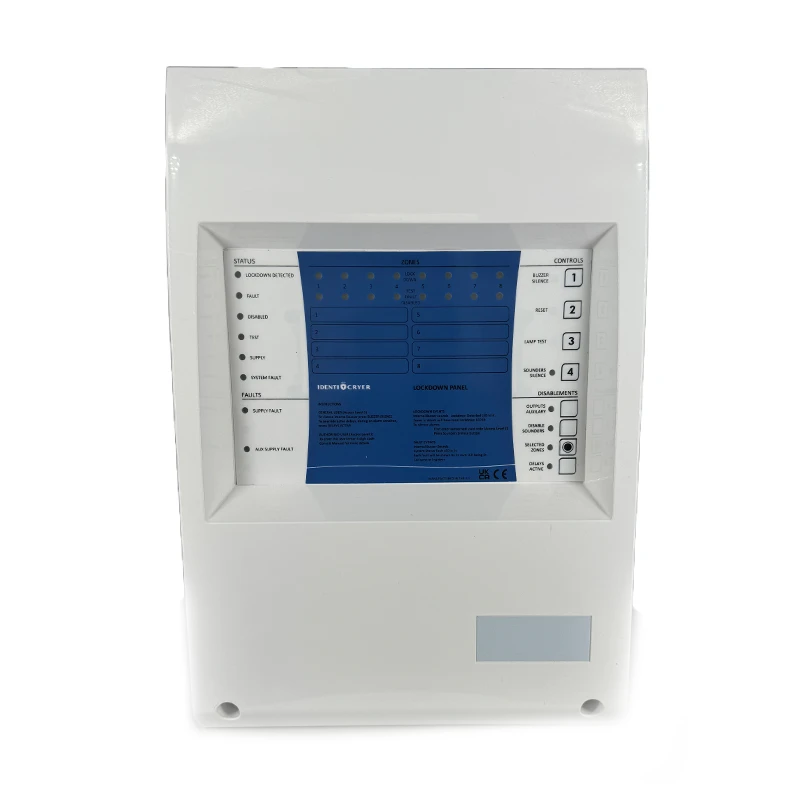

1 x 2 Zone Vimpex Identi-Cryer Lockdown Panel – Compact & easy to install, the panel allows zone-based activation & 24/7 fault monitoring.

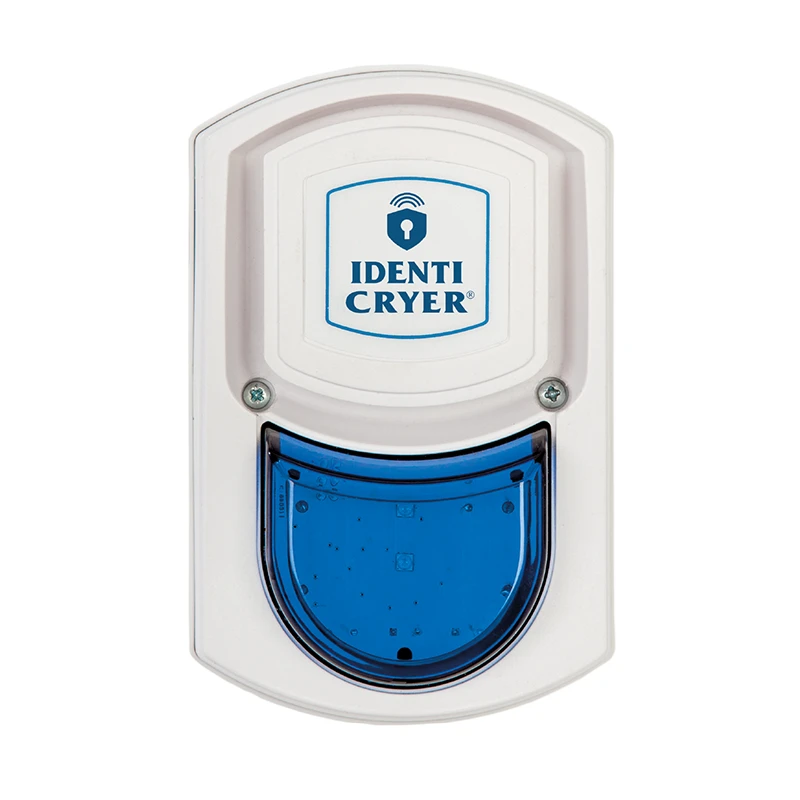

1 x Deep Base Sounder with Blue Beacon – Provides a clear, visual & audible alert, ideal for busy or noisy environments where sound alone may not suffice.
1 x Blue Lockdown Call Point – Clearly marked & easily identifiable for initiating lockdown procedures.
1 x FireSmart 7Ah Trade Batteries Twin Pack - Ensure long lasting back up during times of power failure.
Fully compliant with best practices & designed with Martyn’s Law in mind, this starter pack helps smaller venues take proactive steps to improve emergency preparedness.
Whether it's in response to security threats or general site safety concerns, the Identi-Cryer system ensures occupants are quickly & clearly alerted to lockdown situations.
Ideal for:
Primary & secondary schools
Nurseries
Sports & social clubs
Faith-based & community venues
2-zone control panel ideal for small sites
24-hour fault monitoring
Blue call point for clear lockdown activation
Deep base sounder with integrated blue beacon
Backup battery functionality for power resilience
Suitable for primary schools, nurseries & social clubs
Supports Martyn’s Law compliance
Specification | Call Point | Control Panel | Sounder Beacon |
|---|---|---|---|
Insulation Resistance | >100 Mohm @ 500 V dc | ||
Maximum Current | 3 A @ 250 V ac / 5 A @ 125 V ac | ||
Cable Termination | 0.5 - 2.5 mm² | Screw TB 2.5 mm² | |
Operating Temperature | -30 to +70°C | -10°C to 50°C | -25°C to +70°C |
Humidity | 0–95% | ||
IP Rating | IP42 | IP30 | IP45 or IP66 (Deep Base required for IP66) |
Material / Construction | ABS / Polycarbonate / PA6 + Glass Fibre | Fire Rated ABS | ABS |
Mains Supply | 230 Vac (100 Watts Max) | ||
Mains Supply Fuse | 4 A - 250 V Slow Blow – 20 mm | ||
Output Voltage | 28.5 nominal Vdc | ||
Battery Size Max | 12 Vdc 7Ah (2 Batteries) | ||
Dedicated Sounder Circuits | 2 x 24 Vdc, fused at 500 mA | ||
Aux. Relay Output | 1 x Fire, 1 x Fault (NO, NC, C) | ||
Relay Contact Rating | 50 Vdc – 2 A resistive loads | ||
Detection Circuit EOL | Active EOL – Capacitor | ||
Sounder Circuit EOL | 10K Ohms, 0.25 W | ||
Colour | White | White | |
Dimensions (HxWxD) | 404 x 272 x 107 mm | ||
Weight | 1.7 Kg | ||
Operating Voltage | 20–28 V dc | ||
Current @ 24 V dc, Peak/Avg – Sounder | 27/20 mA | ||
Current @ 24 V – Sounder + Low Strobe | 33/26 mA | ||
Current @ 24 V – Sounder + High Strobe | 52/60 mA | ||
Current – Low Current Strobe Only | 13 mA | ||
Current – High Current Strobe Only | 32 mA | ||
Strobe Output (Low) | 2 Cd | ||
Strobe Output (High) | 6 Cd | ||
Sound Output – Fast Sweep Tone | 100 dB (A)* | ||
Sound Output – Voice | 95 dB (A)** | ||
Volume Adjustment Range | 82 to 100 dB(A) (±18 dB(A)) |
